Help CenterMZ130Y-2 Piling Drilling Rig Auger Drilling Rig
Related Products

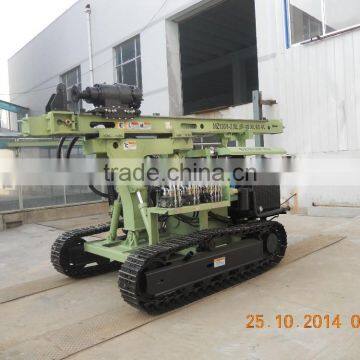

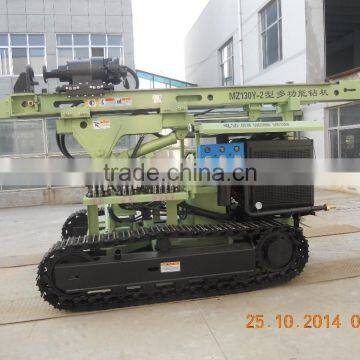

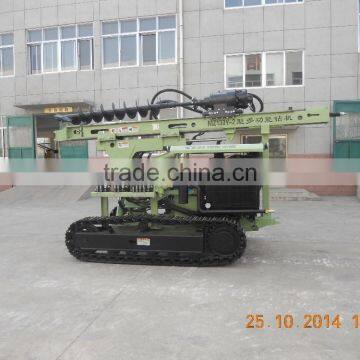

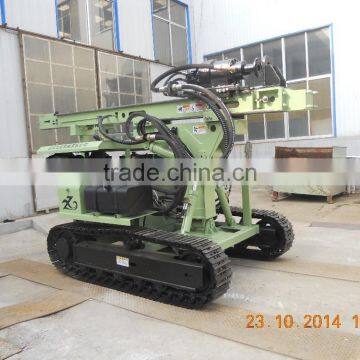

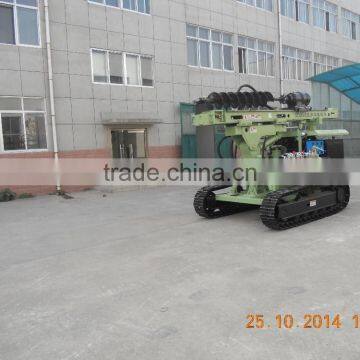

MZ130Y-2 Pile drilling rig
MZ130Y crawler pile drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variable-bit-shift hole easy The drilling rig compact structure, while promoting a retractable sliding shelf compensation, drilling when the sliding frame support on the ground, drilling and good stability. Use Z130 rig reliable Chazzan efficient drilling in hard rock drilling rig as fast as 2 times the low air pressure is the construction unit cost efficiency gains strong support.
The drilling rig is mainly suitable for pile drilling ,solar energy,open mining, water conservancy, power plants, road building and other Rock blasting whole drilling.
Main technical parameters of MZ130Y | |
Wind pressure (Mpa) |
0.7----1.6 1.6-2.46 |
Air consumption (m³/min) |
10----26 |
DTH Drilling diameter (mm) |
90----300 |
Drilling depth (m) |
20-100M |
Once promotion distance (mm) |
2000 |
Drill rod diameter (mm) |
76/89 |
Skid compensation (mm) |
900 |
| bore diameter(screw) mm | max400 |
drilling depth |
0-30 |
| screw pipe diameter(mm) | 130-400 |
Boom Pitch (°) |
100 |
Boom swing angle (°) |
Left and right 40 |
Grade ability (°) |
30 |
Chassis ground clearance (mm) |
260 |
Travelling speed (km/h) |
2 |
Back to the transit speed (r/min) |
0----80 |
Rotary torque (N.m) |
4600 |
Host Power (Kw) |
56 |
For rock (f) |
6----20 |
Impact frequency (r/min) |
0-70 |
Total Weight (kg) |
4360 |
Dimension (L * W * H) |
4460*1950*2460mm |
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
