Home > Products > central air pressure hydraulic drilling rig > DTH full hydraulic drilling rig

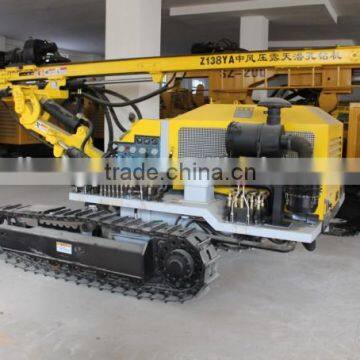

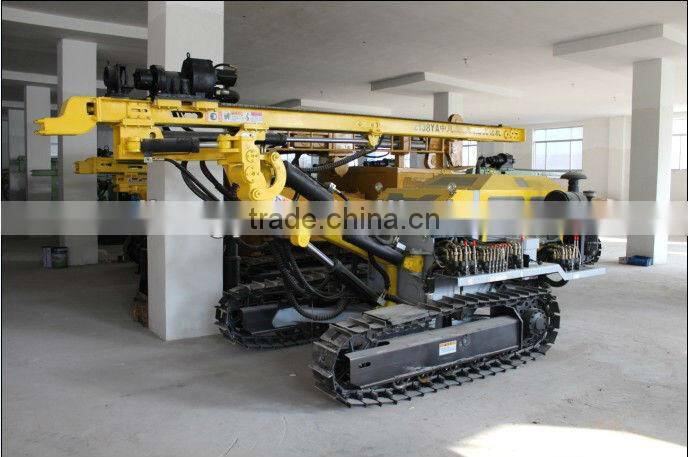

DTH full hydraulic drilling rig
- 10 Set / Sets per Month
- Qingdao Port
- T/T
- 3NB9/1.8-7.5 mining mud pump is used for providing cooling and flushing fluid during rock core or coal seam drilling
- 2NB3/1.5-2.2 mining mud pump is a vertical, double cylinder, single acting plunger pump
- The 3NB-250/6-15 reciprocating mud pump provides washout fluid to the borehole during core drilling with the three-cylinder plunger
- Coal mine tunnel drilling rig ZLJ350 head can be turned
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
Product Details
Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
Brand Name: | shandong longye | Model Number: | CTQ-Z138YA | Usage: | Coal |
Power(W): | 4500 | Dimension(L*W*H): | 5200*2030*2300 | Weight: | 3.8t |
Certification: | IOS9000 C1 |
Product Description

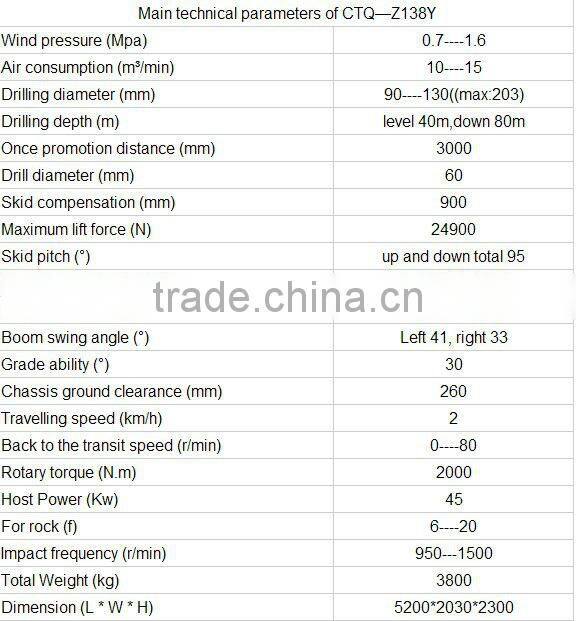

Specifications
CTQ-Z138YA medium air pressure DTH drill crawler open with a low energy consumption, high efficiency,easy to transport.
CTQ-Z120Ymobile crawler drilling rig
CTQ-Z138Y hydraulic drilling rig,adopt new-style hydraulic technique which have low air consumption,large rotation torque.the structure of the drilling rig is compact, During drilling the slide-skid are support on the ground to ensure the drilling has good stability.The usage of Z120 drilling rig has realiable property,high efficiency in drilling.
Application:
CTQ-Z138Y crawler hydraulic drilling rig is mainly used in open cut ore mining,power station,road building for exploring the stone.
Contact Us
- Shandong Longye Machinery Co., Ltd.
- Contact nameTina Yu
- Phone0086-136-15486903
- AddressRongda Road, Taishan Youth Venture Development Zone
