Crawler DTH Drill
- 10 Set / Sets per Month
- Qingdao Port
- T/T
- 3NB9/1.8-7.5 mining mud pump is used for providing cooling and flushing fluid during rock core or coal seam drilling
- 2NB3/1.5-2.2 mining mud pump is a vertical, double cylinder, single acting plunger pump
- The 3NB-250/6-15 reciprocating mud pump provides washout fluid to the borehole during core drilling with the three-cylinder plunger
- Coal mine tunnel drilling rig ZLJ350 head can be turned
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
Product Details
Condition: | New | Type: | Core Drilling Rig | Place of Origin: | Shandong, China |
Brand Name: | longye | Model Number: | CTQ-Z120Y | Usage: | Ore |
Product Description
Specifications

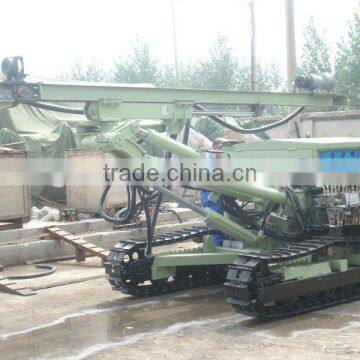

CTQ-Z120Y core drilling rig,central air pressure hydraulic drilling rigCTQ-Z120Y core drilling rig
CTQ-Z120Y type crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variable-bit-shift hole easy The drilling rig compact structure, while promoting a retractable sliding shelf compensation, drilling when the sliding frame support on the ground, drilling and good stability. Use Z120 rig reliable Chazzan efficient drilling in hard rock drilling rig as fast as 2 times the low air pressure is the construction unit cost efficiency gains strong support.
The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock blasting whole drilling.
Main technical parameters of CTQ—Z120Y | |
Wind pressure (Mpa) | 10.7----1.6 |
Air consumption (m³/min) | 10----12 |
Drilling diameter (mm) | 90----130 |
Drilling depth (m) | level 40m,down 30m |
Once promotion distance (mm) | 3000 |
Drill diameter (mm) | 60 |
Skid compensation (mm) | 1020 |
Maximum lift force (N) | 18000 |
Skid pitch (°) | up and down total 100 |
Swinging angle of skid (°) | Left 90, right 45 |
Boom Pitch (°) | up and down total 70 |
Boom swing angle (°) | Left 45, right 45 |
Grade ability (°) | 25 |
Chassis ground clearance (mm) | 250 |
Travelling speed (km/h) | 2 |
Back to the transit speed (r/min) | 0----80 |
Rotary torque (N.m) | 2000 |
Host Power (Kw) | 37 |
For rock (f) | 6----20 |
Impact frequency (r/min) | 950---1500 |
Total Weight (kg) | 4600 |
Dimension (L * W * H) | 5200*2030*2300 |
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
