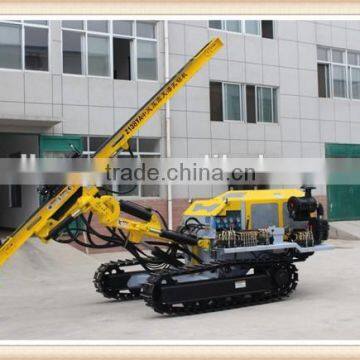

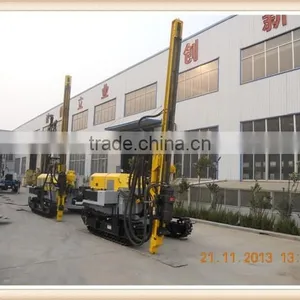

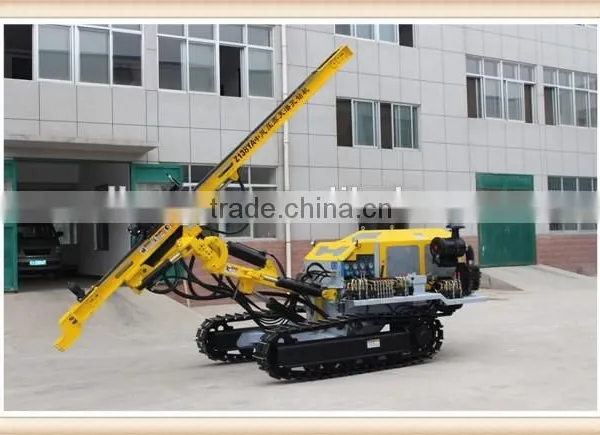

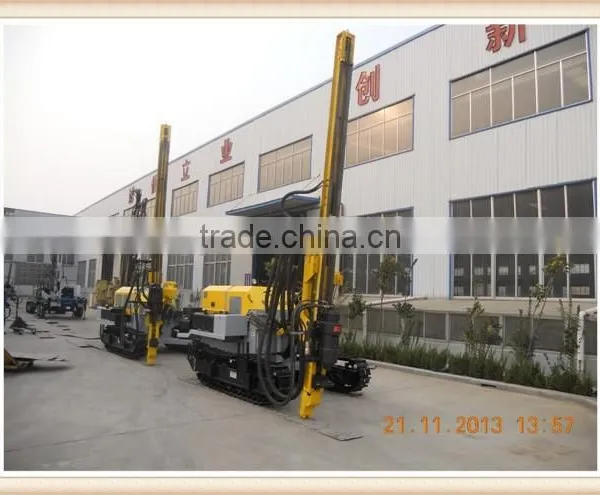

Help CenterMulti-purpose Hydraulic Rotary Drilling Rig Z138YA With ISO&CE Certification
Related Products
-
Multi-purpose Hydraulic Rotary Drilling Rig MZ130Y-2 With ISO&CE CertificationNegotiableMOQ: 1 Set -
Multi-purpose Hydraulic Rotary Drilling Rig Z115Y With ISO&CE CertificationNegotiableMOQ: 1 Set
-
Multi-purpose Hydraulic Rotary Drilling Rig D100YA2-2 With ISO&CE CertificationNegotiableMOQ: 1 Set
-
Hydraulic Slope Protect and Soil Nailing Drilling Machine CTQ-Z138YANegotiableMOQ: 1 Set
-
ISO&CE Certified Multi-functional Rotary Drilling Machinery Z138YANegotiableMOQ: 1 Set
product superiority:
1. excellent steel quality of products
2. supply wearing parts for free
3.our crawler hydraulic drilling rig suitable formountainous and muddy pavement.
4.the YuChai Brand diesel engine life is very long
5. the pump desigh , can save the maintenance cost
6. The work efficiency is very high .
7. Large hydraulic oil design,also separated controllable, meanwhile guarantee stability during fieldwork.

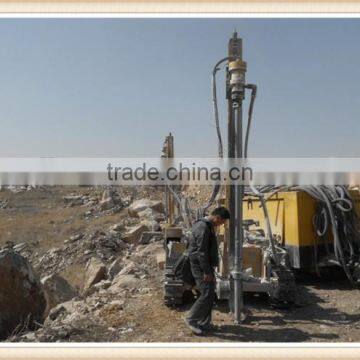

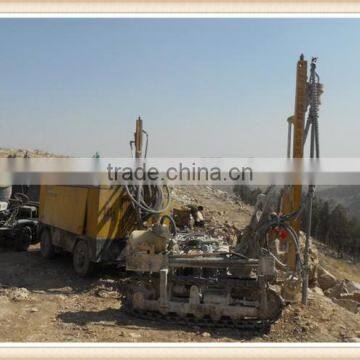

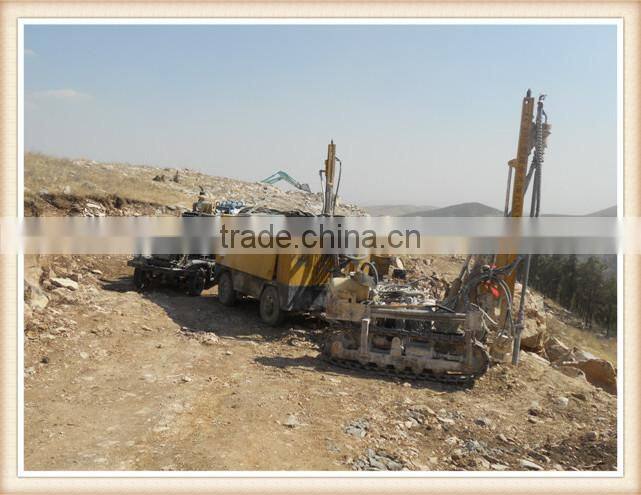

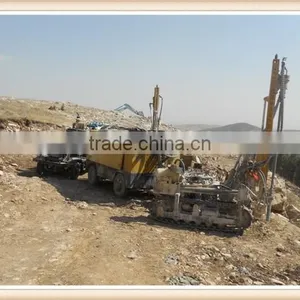

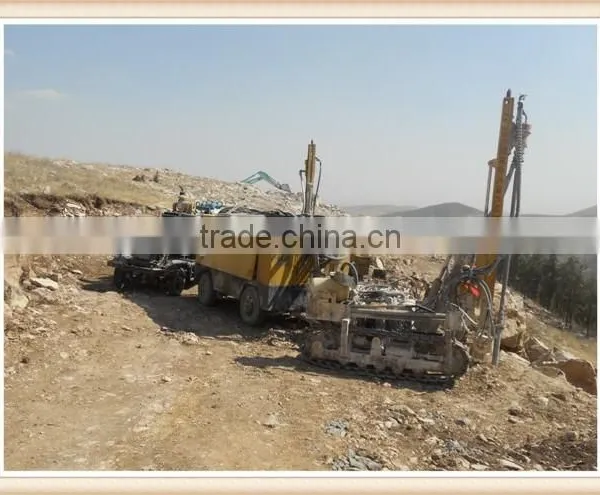

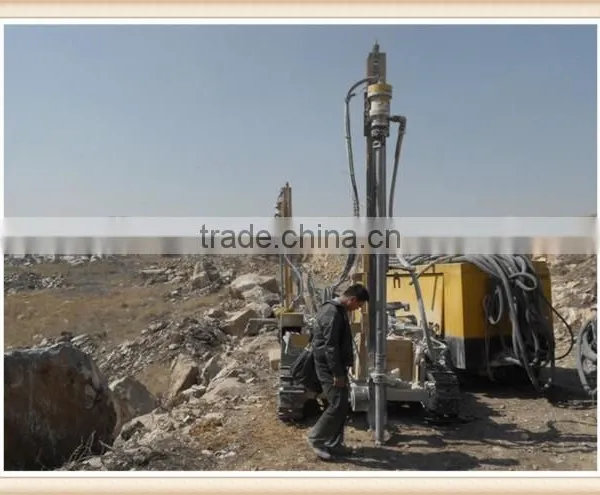

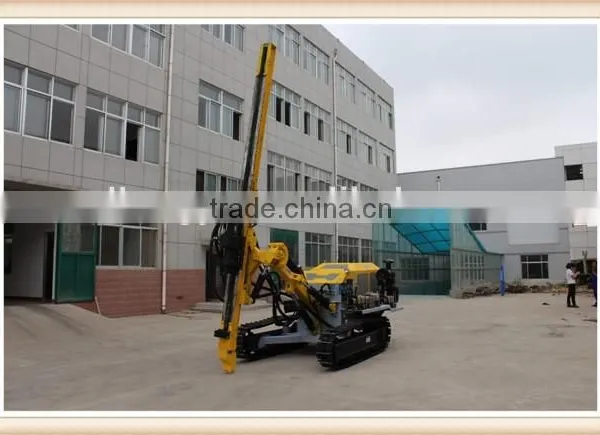

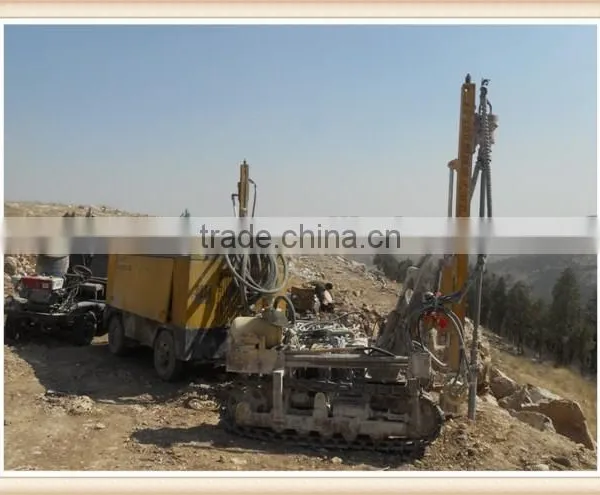

CTQ-Z138YA crawler rotary blasting hole drilling rig ,uses new hydraulic technology,,with low air consumption , large rotary torque , and easy for variable-bit-shift hole.Using Z138YA rig is reliable,high efficiency,when drilling in hard rock its speed is 2 times as fast as the low air pressuredrilling rig.It is mainly suitable for open mining ,water conservancy and other blasting hole projects.
Working pressure (Mpa) | 0.7-1.6 |
Air consumption(m3/min) | 10-15 |
Drilling diameter (mm) | 90-130 |
Drilling depth(m) | level 40 down 30 |
Once promotion distance(mm) | 3000 |
Drill rod diameter(mm) | 60 |
Skid compensation(mm) | 900 |
Maximum lift force(N) | 24800 |
Skid pitch(.) | up and down total 45 |
Swinging angle of skid(.) | Left 40, right 30 |
Boom swing angle(.) | Left 30, right 40 |
Boom Pitch(.) | up and down total 60 |
Climb ability | 30 |
Chassis ground clearance(mm) | 260 |
Travelling speed(Km/h) | 0-2.5 |
Rotation speed(r/min) | 0-110 |
Rotary torque(N.m) | 2000 |
Host Power(KW) | 45 |
For rock | f=6-20 |
Total Weight(Kg) | 4170 |
Dimension (L * W * H) | 5200*2030*2300 mm |
About ShanDong LongYe Machinary Co.,Ltd. is specialized in the production of hydraulic presure down-hole drillingrigs, engineering drills and water well drilling which are backbone enterprises.
