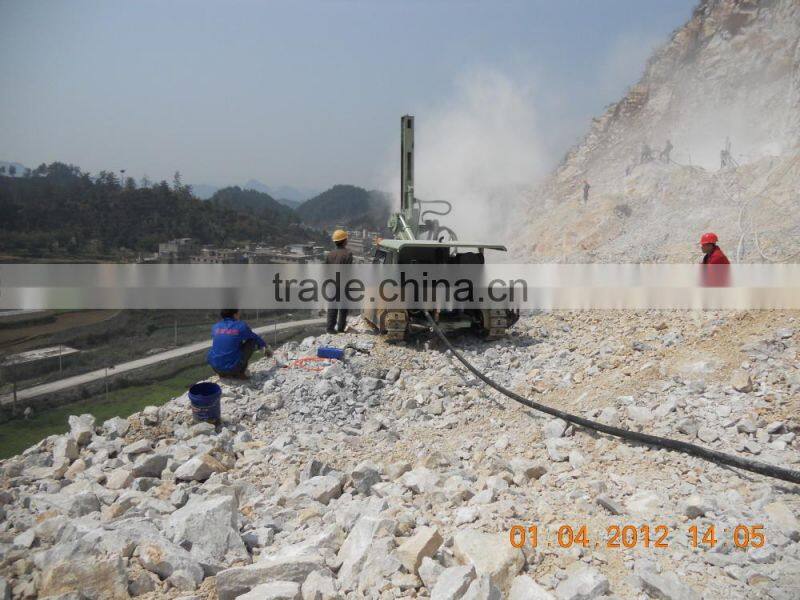

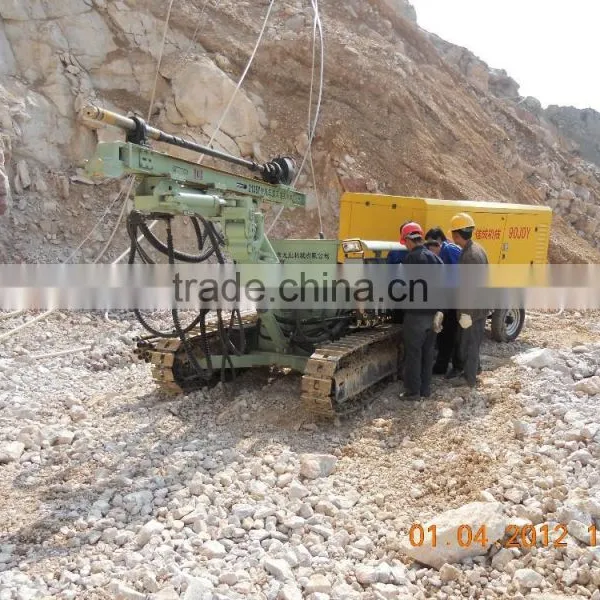

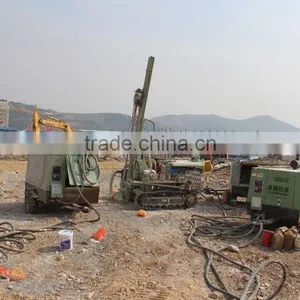

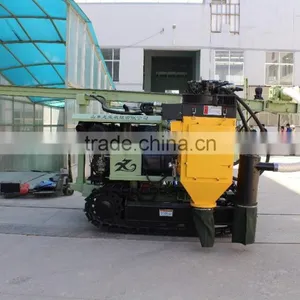

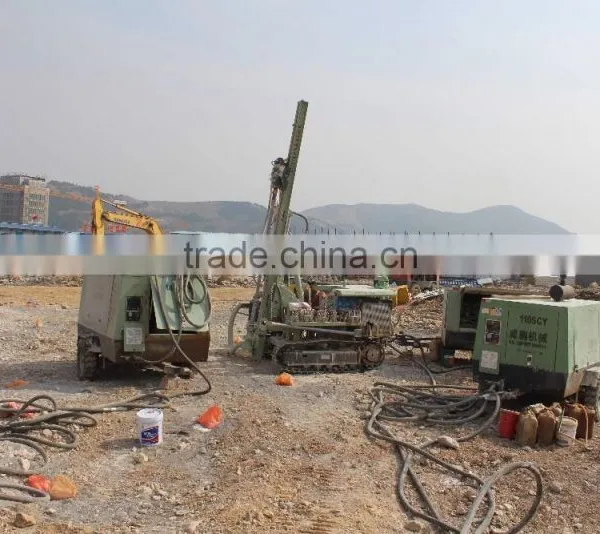

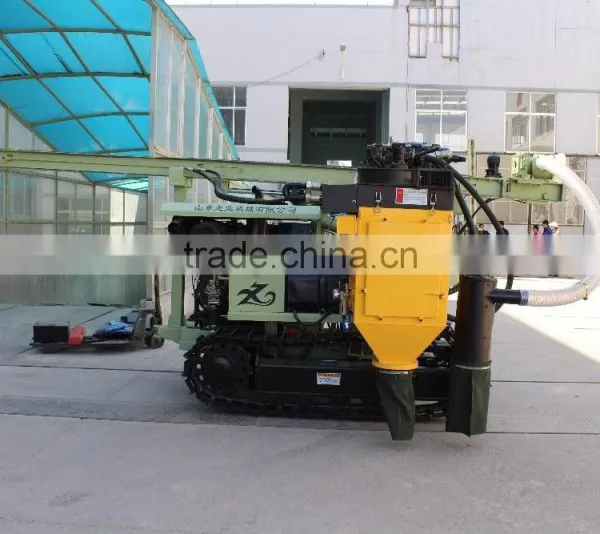

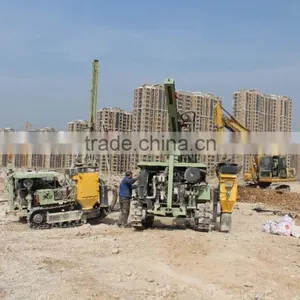

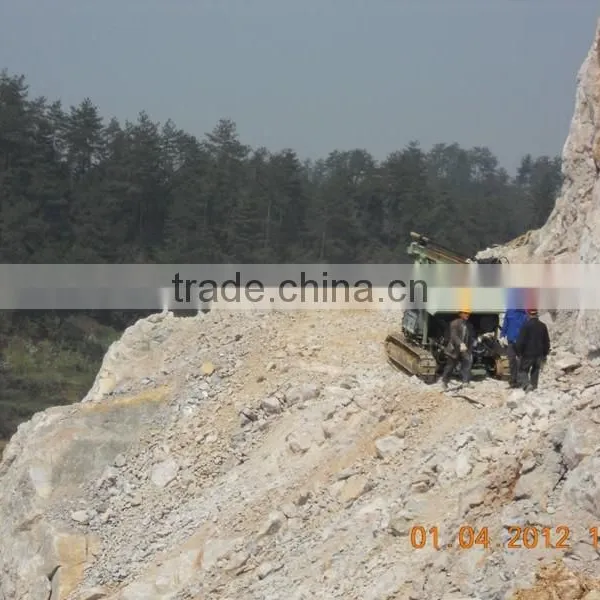

Most Widely-used Crawler Mine Blast Machinery Z115Y
- QingDao Port or as your requirement
- T/T Money Gram
You May Like
-
D100YA2-2 Type Most Widely-used Crawler Mine Blast Drilling Machinery
-
Reliable Mobile Crawler Blasting DTH Drilling Rig G150YF
-
Reliable Mobile Crawler Blasting DTH Drilling Rig G140YF
-
Reliable Mobile Crawler Blasting DTH Drilling Rig Z138YA
-
D100YA2-2 Type Reliable Mobile Crawler Blasting DTH Drilling Rig
-
Reliable Mobile Crawler Blasting DTH Drilling Rig D100YA2
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Shandong, China | |
| Brand Name | LongYe Brand | Model Number | CTQ-Z115Y | |
| Usage | Ore | Voltage | 24 V | |
| Power(W) | 56 kw | Dimension(L*W*H) | 5270*1950*2300 (mm) | |
| Weight | 4170kg | Certification | CE | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

superiority:
1. excellent steel quality of products
2. supply wearing parts for free
3.our crawler hydraulic drilling rig suitable formountainous and muddy pavement.
4.the YuChai Brand diesel engine life is very long
5. the pump desigh , can save the maintenance cost
6. The work efficiency is very high .
7. Large hydraulic oil design,also separated controllable, meanwhile guarantee stability during fieldwork.

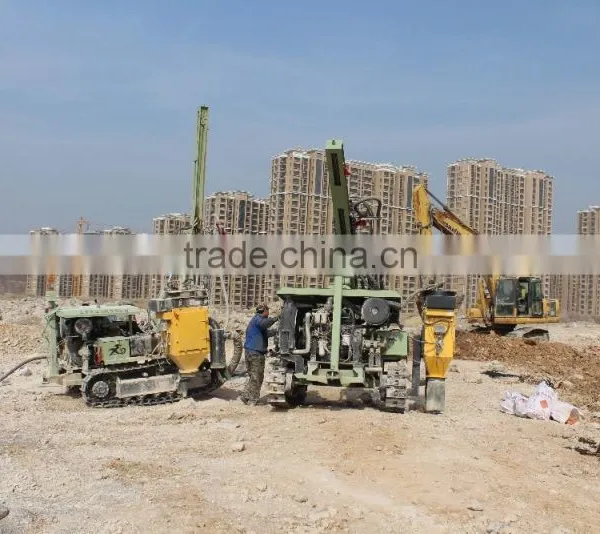

CTQ-Z115Y crawler hydraulic drilling rig, using a new hydraulic technology,with low air consumption,large rotary torque,
conveniently move the hole. The drilling rig’s structure is compact .while promoting a retractable sliding shelf
compensation , drilling when the sliding frame support on the ground, drilling and good stability. Use Z115Y rig reliable
and high efficiency in drilling rock. The drilling speed is low air pressure of 1-2 times the rig is a construction unit to reduce the cost and enhance efficiency.The drilling rig is mainly suitable for open mining , water conservancy, power plants, road building and other Rock blasting whole drilling.
Bore diamete(mm) | 90-130mm |
Bore depth(m) | 40m |
Walk speed | 0-2.5kw/h |
For rock | F=6-20 |
Air pressure(Mpa) | 0.7-1.6Mpa |
Air consumption(m³/min) | 7-15m³/min |
Once promotion(mm) | 3000mm |
Skid pitch | 100° |
Swinging angle of skid | left and right 70 |
Rotation speed | 0-120r/min |
Host power | 56Kw |
Climb ability | 35° |
Dimension(L*W*H) | 5200*1950*2350(mm) |
For rock | F=6-20 |
Weight | 4170Kg |
