Home > Products > CCD Rice Color Sorter > Grain ccd colour sorter Equipment color sorter onion(seed) color sorter (JTDM-CCDR4)

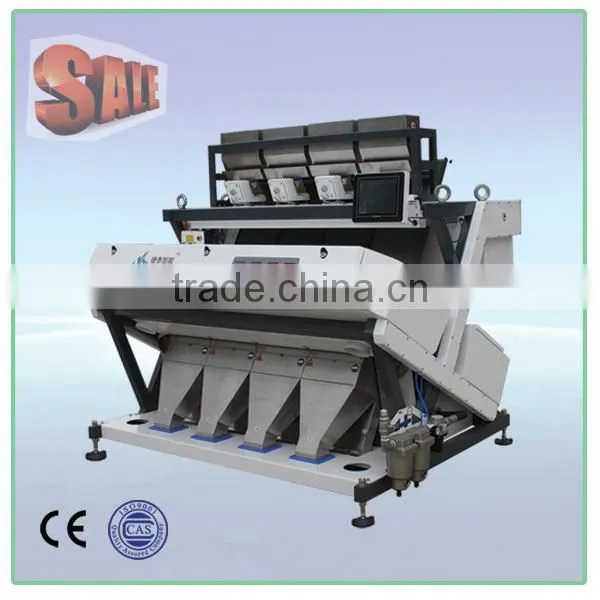

Grain ccd colour sorter Equipment color sorter onion(seed) color sorter (JTDM-CCDR4)
- 0 per Month
- FOB Shanghai
- T/T Credit Card
You May Like
-
Anhui Jietai Parboild Rice color machine good performance color sorter Supplier (JTDM-CCDR5)
-
chilli green pepper color sorting machine Color Sorting Machines With Resolution Up To 0.02mm2(JTDM-CCD480)
-
sorghum sorting machine Rice Color Sorting Machines ccd color sorter for wheat (JTDM-CCD240)
-
the three board machine rice color sorter machine price rice color sorter machine
-
good quality ccd sensor color sorter machine rice color sorting machinery (JTDM-CCDR3)
-
R series channel machine china hefei manufacturer color sorting machine for millet rice
Product Details
Use | sorting grain | Certification | CE,ISO9001 | |
Place of Origin | Anhui, China | Brand Name | Jietai | |
Model Number | JTDM-CCDR4 | Condition | New | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Toshiba brand CCD sensor2.Super wide chute to achieve high output and precision
3.SMC Solenoid Valve
4.LED light
Grain ccd colour sorter Equipment color sorter onion(seed) color sorter (JTDM-CCDR4)
Quick Detail:
1.Multiple-mode for different sorting demands
2.highperformance camera system ensure each size has a perfect image on the image sensor,perceive fast
detection and high identification rate.
3.Filter is SMS Brand which is top one NO. made in Japan
4.Super 10 inch color touch screen
1.There are six modes, sorting of discolor,sorting of white belly,sorting of yellow and white belly,sorting of
transparent, reverse sorting and self-definition(3 choices for each mode) for customer self demand.
2.The Camera lens is phoenix made in Taiwan,and main control CPU is Alter from the USA,the digital image
processing technology provides the sorter with fast detaction and high identification rate.
3.Clean,dry and oil-free air is most important for color sorter’s sorting accuracy and lifetime.And there are two filters for one set,
The dirty air will be filtrate by the first one,the second filter will filtrate the clean,dry,oil-free air refined again
4. The operation interface adopts the 10-inch TFT color touch screen with multi-language, you can change the language easily.
Model | JTDM-CCD3R | JTDM-CCD4R | JTDM-CCD5R | JTDM-CCD6R |
Output (Ton/hr) | 4-7 | 5-11 | 7-12 | 10-15 |
Channels (big/small) | 64/192 | 64/256 | 64/320 | 64/384 |
Ejectors | 192 | 256 | 320 | 384 |
Light source | LED light | LED light | LED light | LED light |
Pixel of camera | 5000*3 | 5000*3 | 5000*3 | 5000*3 |
Color sorting accuracy | >99.99% | >99.99% | >99.99% | >99.99% |
Carryover rate | >10:1 | >10:1 | >10:1 | >10:1 |
Host power | 1.0-2.5 | 1.2-3.0 | 1.4-3.5 | 1.6-4.0 |
Air pressure | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa |
Air consumption (L/min) | 1000-1800 | 1200-2500 | 1500-3000 | 1800-3600 |
Power supply | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Machine weight (kg) | 900 | 1100 | 1300 | 1500 |
Package | wooden case | wooden case | wooden case | wooden case |
