Specifications
SMC Solenoid ValveALTER CPU
TOSHIBA's CCD sensor
Nikon's industrial lense combination
10-inch TFT color touch screen

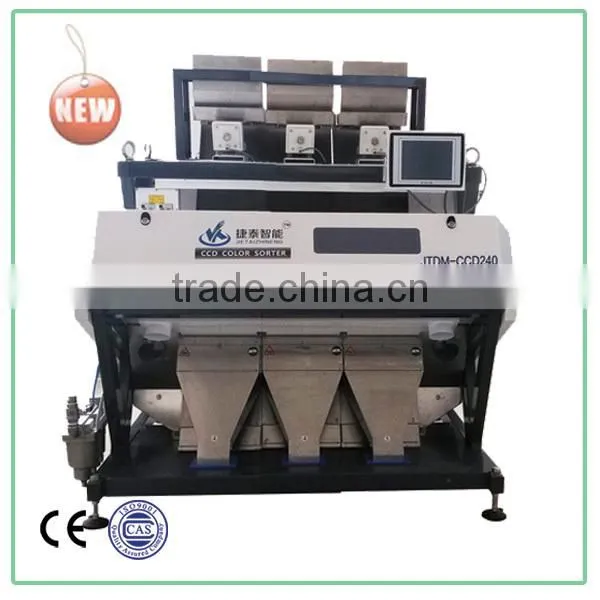

sorghum sorting machine Rice Color Sorting Machines ccd color sorter for wheat (JTDM-CCD240)
Quick Detail:
1.Multiple-mode for different sorting demands
2.highperformance camera system ensure each size has a perfect image on the image sensor,perceive fast
detection and high identification rate.
3.Filter is SMS Brand which is top one NO. made in Japan
4.Super 10 inch color touch screen
1.Widely chute , positioned each channel matched one vale correctly ,ejecting the discolor one to the defect chamber, and good materials slide down into the finished chamber .
2. The hardware system architecture of chip is ARM+FPGA, become the super brain of color sorter to operate the program data.
3. Cutting-edge double row LED light source equipment with cooling system is more
Stable and long service life.
4. The operation interface adopts the 10-inch TFT color touch screen with multi-language, you can change the language the easily.
5.You operate the machine just only by the program setting of the compute,not by hands it
is easy to operate.
6.Japan TOSHIBA brand CCD sensor is top quality and excellent ability to treat the image.
We are the first to apply true color of three primary colors on CCD. It can identify tiny spots smaller than 0.02 mm2.
Applications:
Applicable to all types of materials,rice, grain,and industrial granules etc.
Model | JTDM-CCD240 | JTDM-CCD320 | JTDM-CCD400 | JTDM-CCD480 |
Output (Ton/hr) | 4-8 | 5-12 | 7-13 | 10-17 |
Channels (big/small) | 80/240 | 80/320 | 80/400 | 80/480 |
Ejectors | 240 | 320 | 400 | 480 |
Light source | LED light | LED light | LED light | LED light |
Pixel of camera | 5000*3 | 5000*3 | 5000*3 | 5000*3 |
Color sorting accuracy | >99.99% | >99.99% | >99.99% | >99.99% |
Carryover rate | >10:1 | >10:1 | >10:1 | >10:1 |
Host power | 1.0-2.5 | 1.2-3.0 | 1.4-3.5 | 1.6-4.0 |
Air pressure | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa |
Air consumption (L/min) | 1000-1800 | 1200-2500 | 1500-3000 | 1800-3600 |
Power supply | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Machine weight (kg) | 900 | 1100 | 1300 | 1500 |
Package | wooden case | wooden case | wooden case | wooden case |
Some tips for equipment maintenance downtime after work :
1.Close the power switch and the compressor switch after down work, and discharge the sewage in the air
compressor tank and the air storage tank.
2. Need clean up vibrators with air gun(especially materials block formed in vibrator hopper should be
removed regularly),inside of body,receiving hopper and dust scraping brush(Caution:During the cleaning of
the sorting chamber with the air gun,it its forbidden to direct blowing to nozzle which may causing the damage of valve!)
3. Weekly:check filter elements;check the cleanliness of the cleaning brush,ensure equipment in a good state
then achieve high precision.
Commercial terms:
Minimum Order Quantity: | 1set |
Price: | negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 10 days after receive deposit |
Payment Terms: | T/T , L/C |
Supply Ability: | 120Sets/month |
TAG:Color Sorting Machines, Color Sorter,CCD Sorter Machine.
