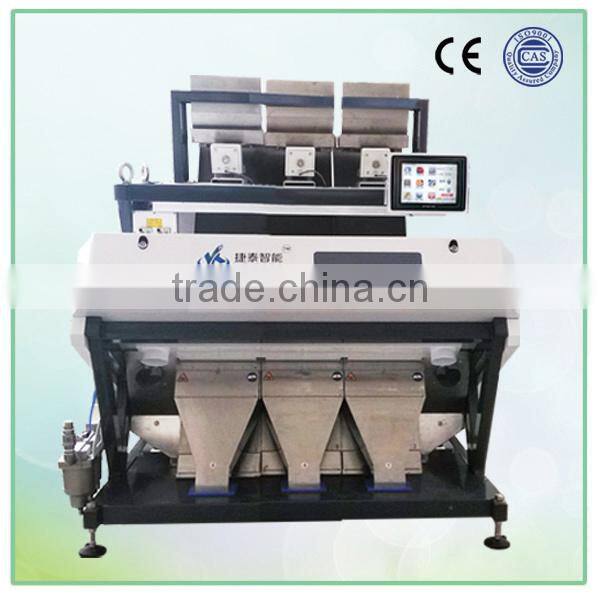

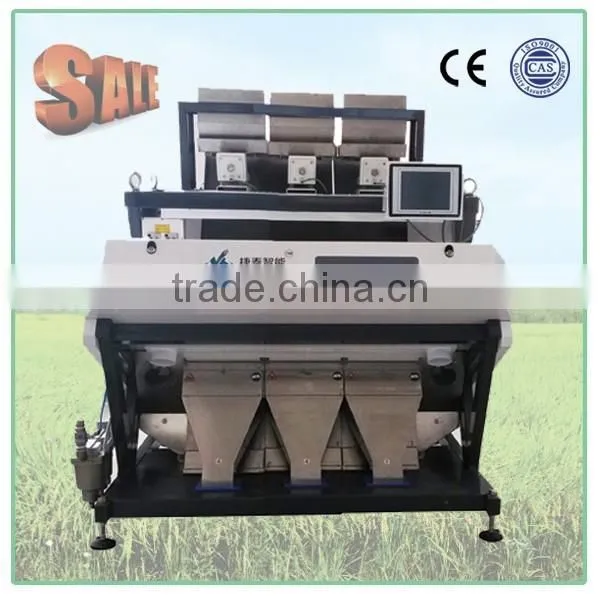

Help CenterCocoa Bean Processing Machinery Manufacturer With 64 Valves (JTDM-CCDR3)
Related Products
-
Excellent Sorting Result Ccd Oats Colour SorterUS$ 0.1 - 1MOQ: 1 Set -
Tri-color Sorter Machine Suitable to Wheat Beans Corns and Other GrainsUS$ 0.1 - 1MOQ: 1 Set
-
2016 New Products Small Capacity Color Sorter Cashew Nut MachineUS$ 0.1 - 1MOQ: 1 Set
-
New Arrival 256 Channels Pea Color Sorter MachineUS$ 0.1 - 1MOQ: 1 Set
-
Stable Working Fagopyrum Esculentum Color Sorter MachineUS$ 0.1 - 1MOQ: 1 Set
1.Multiple-mode for different sorting demands
2.highperformance camera system ensure each size has a perfect image on the image sensor,perceive fast
detection and high identification rate.
3.Filter is SMS Brand which is top one NO. made in Japan
4.Super 10 inch color touch screen
1.There are six modes, sorting of discolor,sorting of white belly,sorting of yellow and white belly,sorting of
transparent, reverse sorting and self-definition(3 choices for each mode) for customer self demand.
2.The Camera lens is phoenix made in Taiwan,and main control CPU is Alter from the USA,the digital image
processing technology provides the sorter with fast detaction and high identification rate.
3.Clean,dry and oil-free air is most important for color sorter’s sorting accuracy and lifetime.
and there are two filters for one set,
The dirty air will be filtrate by the first one,the second filter will filtrate the clean,dry,oil-free air refined again
4. The operation interface adopts the 10-inch TFT color touch screen with multi-language, you can change the language easily.
| Model | 6SXM-R1 | 6SXM-R2 | 6SXM-R3 | 6SXM-R4 |
| Capacity(T/hr) | 0.5-1 | 1-3 | 2-8 | 3-11 |
| Sorting Accuracy(%) | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Carryover rate | ≥10:1 | ≥10:1 | ≥10:1 | ≥10:1 |
| Voltage(V) | AC220V,50HZ | AC220V,50HZ | AC220V,50HZ | AC220V,50HZ |
| Power(KW) | 0.6-1 | 0.8-2.0 | 1.0-2.5 | 1.2-3.0 |
| Air Pressure(Mpa) | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 |
| Air Consumption(L/min) | ≤1000 | ≤1300 | ≤1800 | ≤2500 |
| Weight(kg) | 340 | 600 | 700 | 1100 |
| Dimension(mm)L*W*H | 950*1505*1865 | 1338*1520*1800 | 1674*1520*1800 | 1983*1520*1800 |
Note: The above impurities is around 2%(The Specific parameters will be different based on the raw material and impurities).
TAG:Color Sorting Machines, Color Sorter,CCD Sorter Machine
Packing Size: 1830*1720*2100mm
Outer Packing: standard wooden case with protective film inside
Anhui Jietai Intelligent Technology Co.,Ltd originated from Thailand in southeast Asia with 20 years experience
Pass the ISO9001 and international certificate as CE
Provide OEM and ODM service to overseas customer
Export to over 10 countries in Southeast Asia, Africa, Middle East and area etc.
Set up headoffice in Thailand
24hour online service
one year warranty
power service team in Thailand
Q1:Can I add my logo on the machine?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2:How can i get the after-service?
A:We will arrange engineer to install the machine when you perpare for the equipment platform.
and we have power service team in Thailand southeast
Q3:Do you have inspection procedures for machine?
A:100% self-inspection and test before packing
Q4: Could you supply the accessory equipment ?
A:Yes,we will supply from cooperate factory if you need.
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address:Hefei City,Anhui Province,China.
Our factory is near Shanghai, Suzhou City,We can pick you up in the airport or railway station.
Hotel booking service is available.
