US$ 199 - 319
MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Gps Antenna
Use:
Other, Land survey, Marine survey, Channel survey, Seismic monitoring, etc.
Place of Origin:
Tianjin, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Gps Antenna
Use
Other, Land survey, Marine survey, Channel survey, Seismic monitoring, etc.
Place of Origin
Tianjin, China
Brand Name
SunNav
Model Number

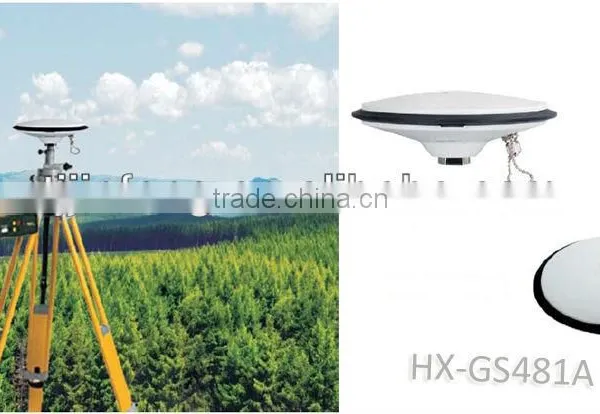

HX-GS481A
Specifications
1.Adopt multi feed design2.Has high gain and wide beam width
3.Mulit-path rejection board
4.Lightning proof circuit
Specifacations of HX-GS481A
| Survey Antenna HX-GS181A | |||
| Antenna Specification | Frequency Range: GPS L1/L2, GLONASSL1/L2 | ||
| Impedance: 50 Ohm | |||
| Polarization: RHCP | |||
| Axial Ratio: ≤ 3 dB | |||
| Azimuth Coverage: 360° | |||
| Output VSWR: ≤ 1.5 | |||
| Gain at Zenith: ≥ 5 dBi | |||
| Phase Center Error: ± 2 mm | |||
| LNA Specification | LNA Gain: 40 dB | ||
| Noise Figure: ≤ 2.0 dB | |||
| Output VSWR: ≤ 2.0 | |||
| Ripple: ± 2dB | |||
| Drain Voltage: 3--18 VDC | |||
| Current Consumption: ≤ 45 mA | |||
| Group Delay: ≤ 5ns | |||
| Mechanical Specification | Dimension: φ190 x 67.4 mm | ||
| Connector: TNC Female | |||
| Weight: 560g | |||
| Environmental Specification | Operating Temperature: -40°C to +85°C | ||
| Storage Temperature: -55°C to +85°C | |||
| Humidity: 95% Non-Condensing | |||
