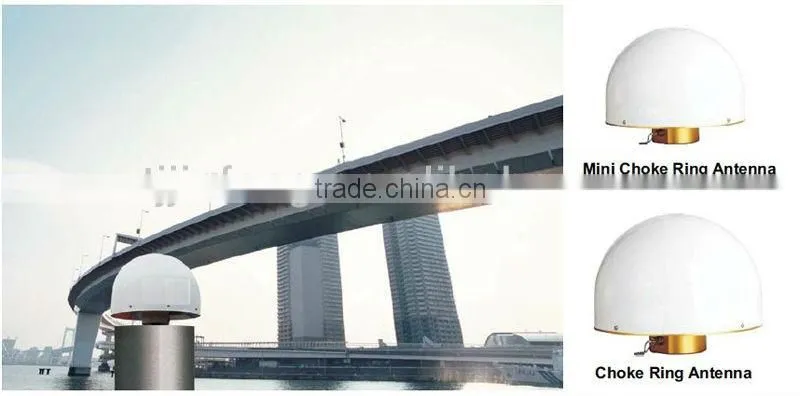

Help CenterGNSS Choke Ring Antenna HX-GGX82A
US$ 199 - 359
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
SunNavi
Model Number:
HX-GGX82A
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Tianjin, China
Brand Name
SunNavi
Model Number
HX-GGX82A
Specifications
1.Adopt multi feed design2.Has high gain and wide beam width
3.Mulit-path rejection board
4.Lightning proof circuit
Specifacations of Choke Ring Antenna HX-GGX82A
| Choke Ring Antenna HX-GGX82A | |||
| Antenna Specification |
Frequency Range: GPS L1/L2/L5, GLONASS L1/L2 Galileo E5a/E6, COMPASS B1/B2/B3 | ||
| Impedance: 50 Ohm | |||
| Polarization: RHCP | |||
| Axial Ratio: ≤ 3 dB | |||
| Azimuth Coverage: 360° | |||
| Output VSWR: ≤ 1.5 | |||
| Gain at Zenith: ≥ 5 dBi | |||
| Phase Center Error: ± 1 mm | |||
| LNA Specification |
LNA Gain: 50 dB | ||
| Noise Figure: ≤ 2.0 dB | |||
| Output VSWR: ≤ 2.0 | |||
| Ripple: ± 2dB | |||
| Drain Voltage: 3--18 VDC | |||
| Current Consumption: ≤ 35 mA | |||
| Group Delay: ≤ 5 ns | |||
| Mechanical Specification |
Dimension: φ322 x 261 mm | ||
| Connector: TNC Female | |||
| Weight: 5150g | |||
| Environmental Specification |
Operating Temperature: -40°C to +85°C | ||
| Storage Temperature: -55°C to +85°C | |||
| Humidity: 95% Non-Condensing | |||
