Home > Instruments & Meters > Test Instrument > Test Machine > SunNav K100 Type GPS l1 l2 OEM Board

SunNav K100 Type GPS l1 l2 OEM Board

Name: SunNav K100 Type GPS l1 l2 OEM Board
Brand: SunNav
SKU: 141554328
Availability: InStock

Tianjin Jinfeng Surveying Instrument Co., Ltd.

SunNav K100 Type GPS l1 l2 OEM Board thumbnail-1

SunNav K100 Type GPS l1 l2 OEM Board thumbnail-2

SunNav K100 Type GPS l1 l2 OEM Board photo-1

SunNav K100 Type GPS l1 l2 OEM Board photo-2

US$ 0.01 - 0.1 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Tianjin, China

Brand Name:

SunNav

Model Number:

K100

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang TJ

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Tianjin, China

Brand Name SunNav

Model Number K100

Detailed Images

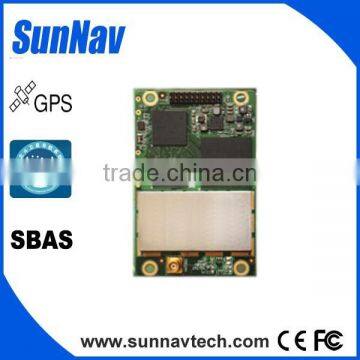

GNSS Board K100

Product Description

Specifications of K100

Signal Tracking
Channel	120 Channels
GPS	L1 C/A Code, L1/L2 P Code
BeiDou	B1, B2
SBAS	WAAS, EGNOS, MSAS
Cold Start	< 50s
Warm Start	< 30s
Hot Start	< 15s
Signal Reacquisition	< 2s
Positioning Specifications
Pseudo Range Accuracy	L1=10cm/L2 =10cm, B1=10cm/B2=10cm
Carrier Phase Accuracy	L1=0.5mm/L2=1mm, B1=0.5mm/B2=0.5mm
Standalone Position Accuracy	< 1.5m
Real Time Kinematics (RTK)	Horizontal: 10 mm + 1 ppm RMS
	Vertical: 20 mm + 1 ppm RMS
Initialization Time	Typically < 10s
Initialization Reliability	Typically > 99.9%
Post Processing Static	Horizontal: 2.5 mm + 1 ppm RMS
	Vertical: 5 mm + 1 ppm RMS
Velocity Accuracy	0.03 m/s
Acceleration	4g
Overload	15g
Time Precision
GPS	20 ns
BeiDou	30ns
GPS + BeiDou	20 ns
Communications
RS232	3 LV-TTL Ports, Baud rates up to 921,600 bps
Positioning Data Outputs	1 Hz, 5 Hz & 10 Hz (depends on installed option)
Raw Data Outputs	1 Hz, 5 Hz, 10Hz & 20 Hz
PPS	1 Pulse Per Second Output
Indicating Light	3 LED Indicating light
	Indicating Power, Satellite Tracking and Differential Data
Data Format
Correction Data I/O	RTCM 2.1, 2.2, 2.3, 3.0, 3.1, CMR(GPS only),CMR+(GPS only)
Position Data Outputs	ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA,
	VTG, GST, PJK, PTNL
	Extended NMEA-0183 BDGGA, GPNTR, GPCDT, GPHPR
	Binary (compatible with major brands)
Phisical
Size (L x W x H)	71mm x 46mm x 11mm
I/O Interface	20-pin Double Male Header
Weight	26g
Antenna	1 x MCX Receptacle (10 MHZ)
Environmental
Working Temperature	-40°C to +85°C
Storage Temperature	-55°C to +95°C
Humidity	95% Non-Condensation
Electric
Input Voltage	3.3-6V DC
Power Consumption	1.0W
Memory	100MB

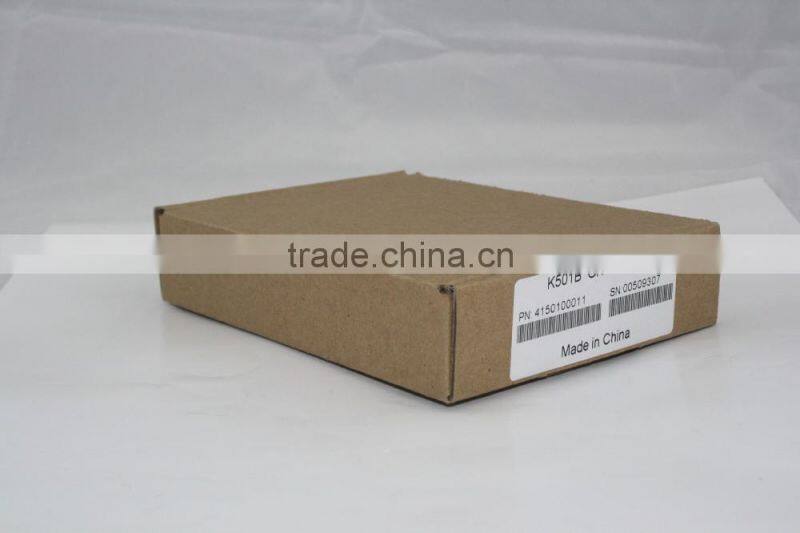

Packaging & Shipping

According to the size, volume of products,using standard packaging.

Via international express (DHL, Fedex, UPS, TNT)are all available.It can be fast for you to transport the goods in your hands.

Our Services

Payment And Delivery:

Warranty Period:

12 months after the delivery time from our factory.

After Sale Service:

After Sale, We provide free technical support via e-mail, skype chatting, telephone or video if necessary. Or you could also dispatch your engineers to our company, we can offer free training face to face. You should please bear the air tickets and all costs when staying in China. We offer additional accessories if you need. But the additional accessories will be charged.
