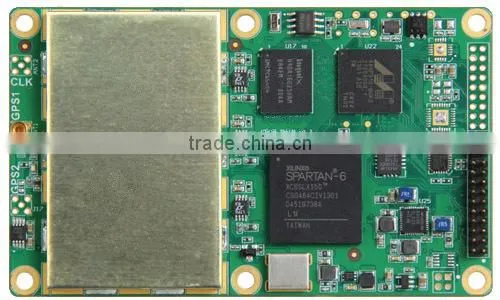

Help CenterK50 GPS Receiver Module With Best Price
Related Products
-
K108 GPS OEM BoardUS$ 1,800 - 2,500MOQ: 1 Piece -
K50 GPS Receiver ModuleUS$ 500 - 1,500MOQ: 1 Piece
-
K105 GNSS Module/GNSS Receiver BoardUS$ 1,700 - 2,500MOQ: 1 Piece
-
GNSS OEM Board K501 High QualityUS$ 1,800 - 2,500MOQ: 1 Piece
-
GNSS Module K501G High Accuracy Low PriceUS$ 1,800 - 2,500MOQ: 1 Piece

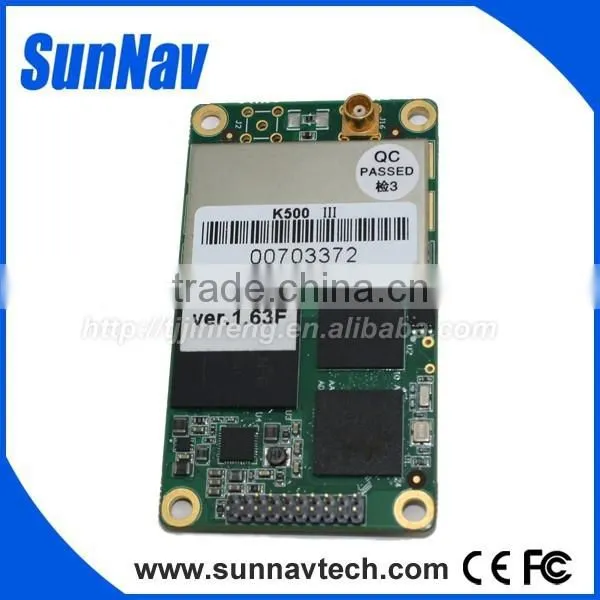

K50 GNSS receiver module
Signal Tracking | |
Channel |
80 Channels |
GPS |
L1 |
BeiDou |
B1 |
GLONASS |
L1 |
SBAS |
WAAS, EGNOS, MSAS |
Cold Start |
< 50s |
Warm Start |
< 30s |
Hot Start |
< 15s |
Signal Reacquisition |
< 2s |
Positioning Specifications | |
Pseudo Range Accuracy |
L1=10cm, B1=10cm,L1=10cm |
Carrier Phase Accuracy |
L1=0.5mm, B1=0.5mm,L1=0.5mm |
Standalone Position Accuracy |
< 1.5m |
Real Time Kinematics (RTK) |
Horizontal: 10 mm + 1 ppm RMS |
|
Vertical: 20 mm + 1 ppm RMS |
Initialization Time |
Typically < 10s |
Initialization Reliability |
Typically > 99.9% |
Post Processing Static |
Horizontal: 2.5 mm + 1 ppm RMS |
|
Vertical: 5 mm + 1 ppm RMS |
Velocity Accuracy |
0.03 m/s |
Acceleration |
4g |
Overload |
15g |
Time Precision | |
GPS |
20 ns |
BeiDou |
30ns |
GLONASS |
20ns |
GPS + BeiDou |
20 ns |
Communications | |
RS232 |
3 LV-TTL Ports, Baud rates up to 921,600 bps |
Positioning Data Outputs |
1 Hz, 5 Hz & 10 Hz (depends on installed option) |
Raw Data Outputs |
1 Hz, 5 Hz, 10Hz & 20 Hz |
PPS |
1 Pulse Per Second Output |
Indicating Light |
3 LED Indicating light |
|
Indicating Power, Satellite Tracking and Differential Data |
Data Format | |
Correction Data I/O |
RTCM 2.1, 2.2, 2.3, 3.0, 3.1, CMR(GPS only),CMR+(GPS only) |
Position Data Outputs |
ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, |
|
VTG, GST, PJK, PTNL |
|
Extended NMEA-0183 BDGGA, GPNTR, GPCDT, GPHPR |
|
Binary (compatible with major brands) |
Phisical | |
Size (L x W x H) |
71mm x 46mm x 13mm |
I/O Interface |
20-pin Double Male Header |
Weight |
26g |
Antenna |
1 x MCX Receptacle (10 MHZ) |
Environmental | |
Working Temperature |
-40°C to +85°C |
Storage Temperature |
-55°C to +95°C |
Humidity |
95% Non-Condensation |
Electric | |
Input Voltage |
3.3-6V DC |
Power Consumption |
1.0W |
Memory |
100MB |
1.GPS L1+BeiDou B1+GLONASS L1 dual satellite system calculating.
2.Configurable GPS/BeiDou/GLONASS single system positioning and dual system positioning.
3.Compatible with other major brands on physical size, interface and data command.
4.Directly export PJK coordinate.
5.Support short, middle and long base line, RTK working distance can reach 50KM.
6.Easy to customize, can satisfy different kind of demands.
7.Built in 100M internal memory
According to the size, volume of products,using standard packaging.
Via international express (DHL, Fedex, UPS, TNT)are all available.It can be fast for you to transport the goods in your hands.
