Specifications
1.Real- time accuracy 2-5m2.Integrated communication
3.Windows mobile OS data collector
4.Rugged Design GIS Data Collector

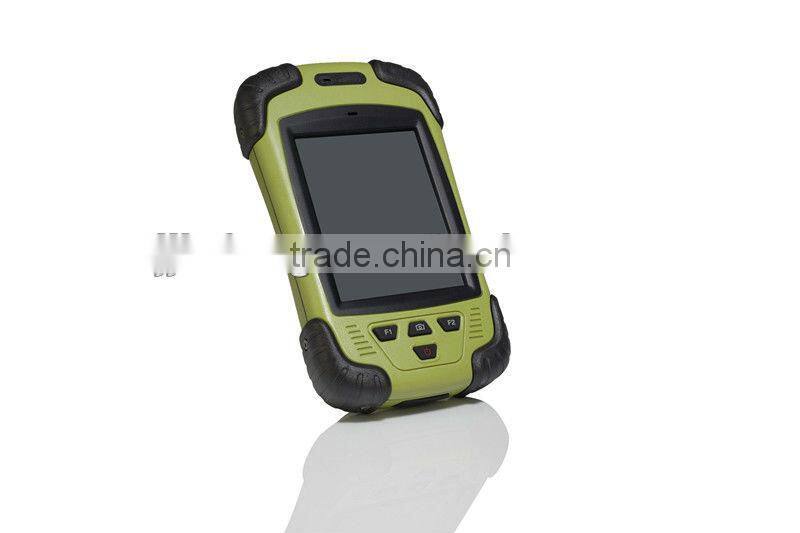

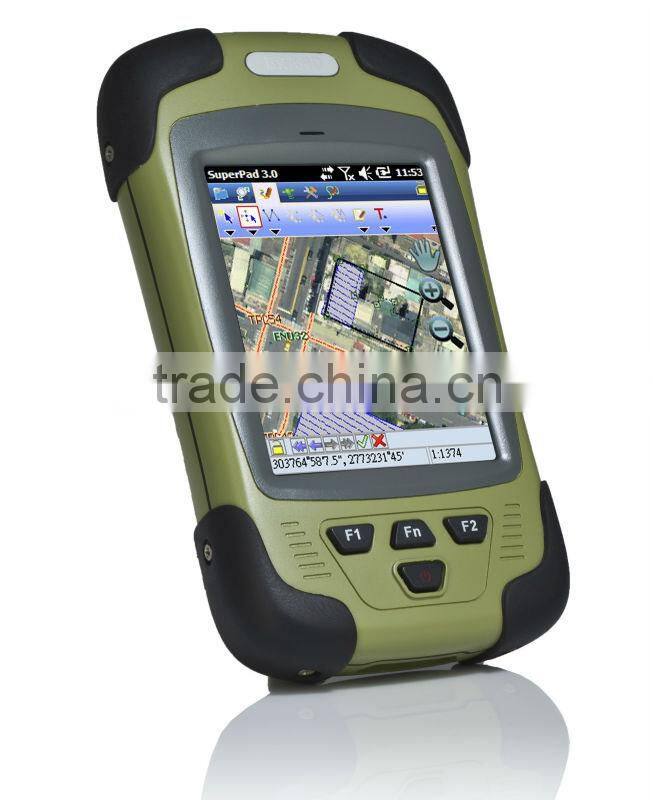

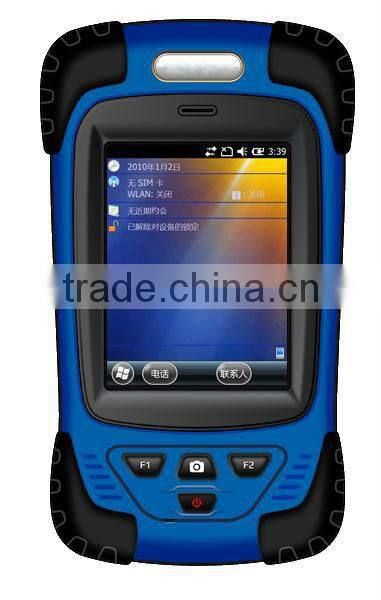

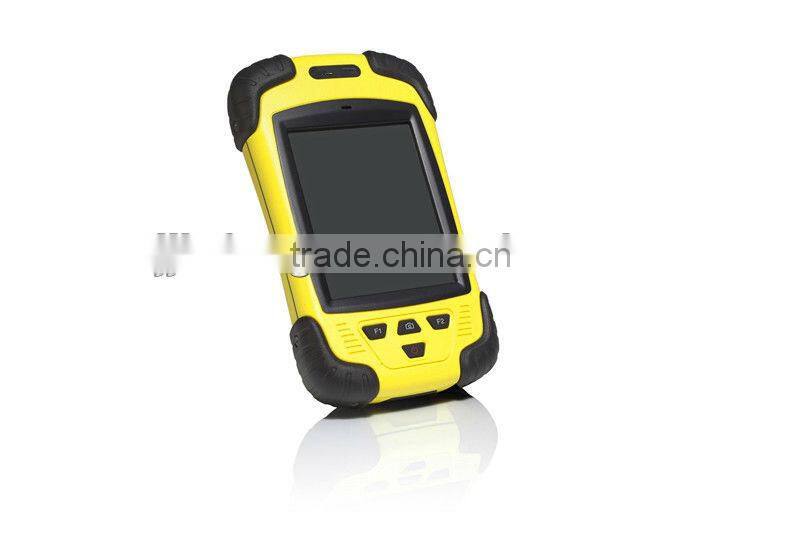

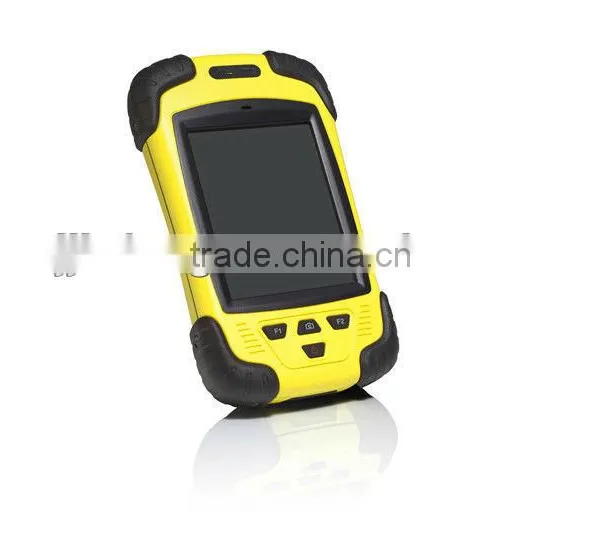

IGS150 GIS Data Collector
It is windows mobile 6.5 operating system’s mobile GIS, equipped with Bluetooth, GPRS and webcamera.
Robust, streamlined and thin design for hard conditions, easy to operate with one hand.
Provides communication by microphone and video, data transfer, can download the user’s own software.
Professional GPS with high accuracy . Receiving GPS signals with high stability.
Supports download of orbit tracking, with a second advanced application development.
3 megapixel camera, 6 X zoom with autofocus, combined with video function.
GNSS Characteristics
Internal antenna: 20 channels
- GPS L1 C/A
- SBAS: WAAS/EGNOS/MSAS
External antenna connector
NMEA-0183 and Sirf Protocol output 1Hz
TTFF:50s
Accuracy Specifications (Horizontal RMS)
Real-time SBAS: 2-5m typical
Processor
CPU: 624MHZ
Operating System
Microsoft Windows Mobile 6.5 Professional
Software package includes:
- Internet Explorer®
- Office Mobile
- ActiveSync®
- Transcriber (handwriting recognition)
Communications
Cellular
Built in GSM/GPRS
850/900/1800/1900MHz
Bluetooth
Bluetooth 2.0 with EDR
WiFi
Integrated 802.11b / g
Interface
USB
Mini USB interface V2.0
Multimedia & Sensors
Camera 3M Pixels
Speaker
Microphone
Physical Characteristics
Size
168x88x26 mm
Weight
260g
User Interface
Keyboard
4- function buttons
Display
3.5 inch TFT colours touch-screen
265k colours, 640 x 480 pixels
Memory
256MB Flash ROM + 128MB SDRAM
Mini SD cards up to 8G
Environmental Characteristics
Operating temperature:
-20° to +60°C
Storage temperature:
-30° to +70°C
Humidity: 95% non condensing
Waterproof: IP54
Free drop: 1.2 m on concrete
Power Characteristics
3.3V 3000mAH Li-polymer
Battery life: > 8hrs
Charge time: 4 hours
Removable battery

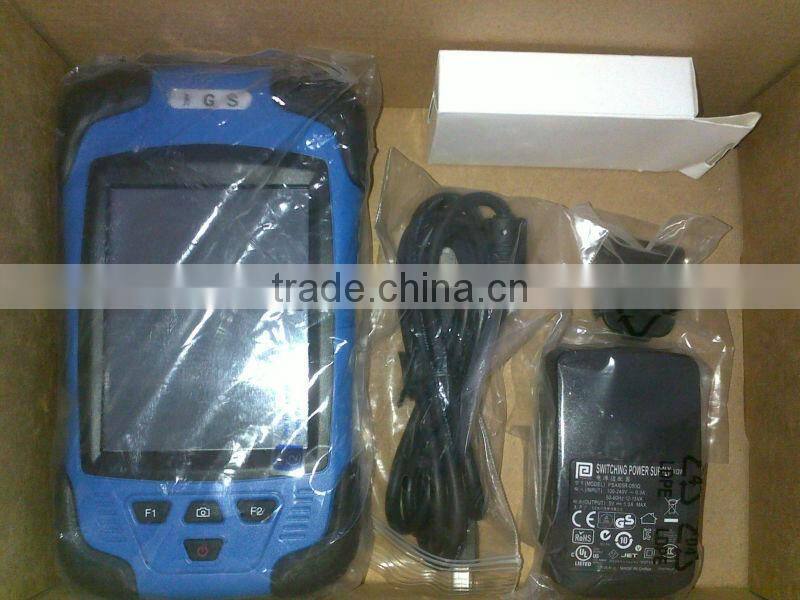

Standard Accessories
Stylus
Hand-strap
A/C charger
USB cable
