KEESTAR 80800CDH Two Needle Chain Stitch Jumbo Bag Sewing Machine

KEESTAR 80800CDH Two Needle Chain Stitch Jumbo Bag Sewing Machine photo-1

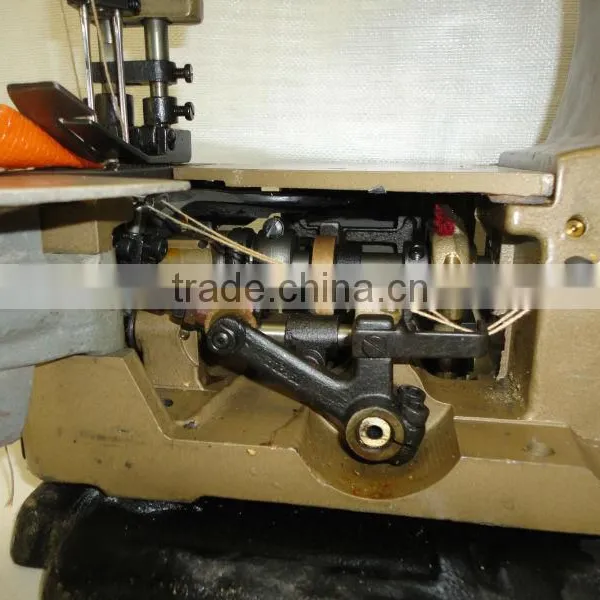

KEESTAR 80800CDH Two Needle Chain Stitch Jumbo Bag Sewing Machine photo-2

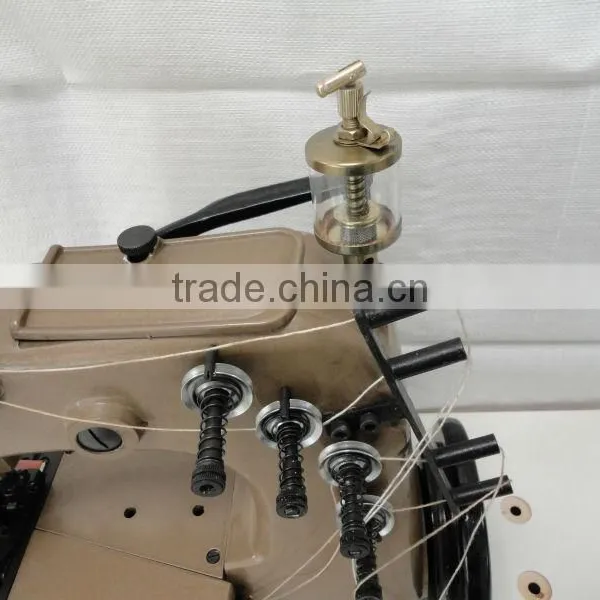

KEESTAR 80800CDH Two Needle Chain Stitch Jumbo Bag Sewing Machine photo-3

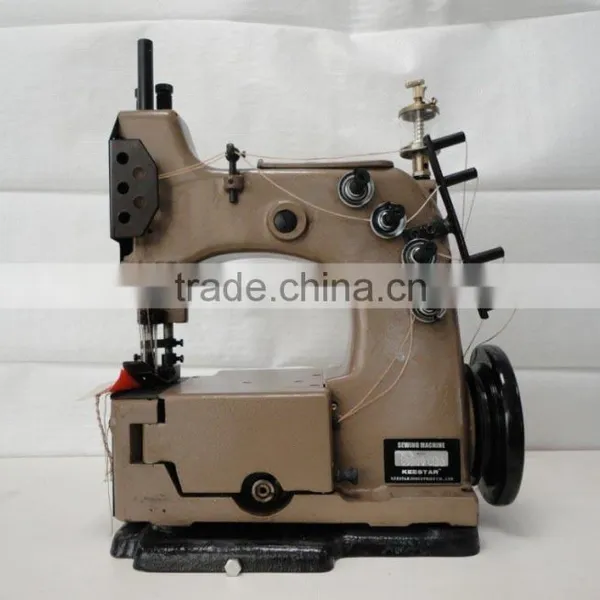

KEESTAR 80800CDH Two Needle Chain Stitch Jumbo Bag Sewing Machine photo-4

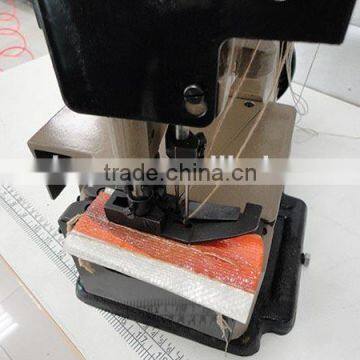

KEESTAR 80800CDH Two Needle Chain Stitch Jumbo Bag Sewing Machine photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Industrial Sewing Machine
Place of Origin:
Shaanxi, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Industrial Sewing Machine
Place of Origin Shaanxi, China
Brand Name KEESTAR
Model Number 80800CDH
Stitch Formation Chain Stitch
Mechanical Configuration Flat-Bed
Max. Sewing Speed 1800rpm
Max. Sewing Thickness 12 mm
Stitch Length 6.5-15 mm
Power 550 W
Overall Dimensions 350*215*440 mm
Feed Mechanism Drop Feed
Certification ISO9000
After-sales Service Provided Overseas service center available

KEESTAR 80800CDH Two Needle Chain Stitch Jumbo Bag Sewing Machine



Product Description

Application:

  1. KEESTAR 80800CDH Two Needle Chain Stitch Jumbo Bag Sewing Machine is a two needle four chain stitch (four thread, two independent rows double chaine stitch) rice bag sewing machine with continually running thread chain cutter and drop feed;
  2. Designed for all stitching on rice bag, woven bags, e.g. side stitch, bottom stitch, inserting top covers and attaching filling and discharging tubes;
Feature:
  1. Double needle four thread chain stitch 401.401 rice bag sewing machine;
  2. Maximum stitching speed up to 1,800 rpm;
  3. Adjustable stitch length from 6.5-15 mm;
  4. Needle gauge fixed 7.2 mm
  5. Main parts apply copper alloy and high duty alloy;
  6. Easy maintenance semi-closed structure;
  7. Manual lubricating with built-in sight feed oiler;
  8. Built-in mechancial continually running thread chain cutter;
  9. Closed type rolling beating apply in every crankshaft;
  10. Well assembly quality, ensure the stable running and long service life;
  11. Reliable rice bag sewing machine for all sorts of material with different weights;
  12. Special designed pedestal optional.
Specification:



Model80800CDH
Max. Sewing Speed1,800 rpm
Max. Sewing Capacity                                        12 mm
Stitch Length6.5-15 mm
Stitch TypeDouble needle four thread chain stitch 401.401
ThreadPolyester 20/6, 20/9
Weight27Kg/30Kg
Dimension350*215*440 mm

 PICTURE:

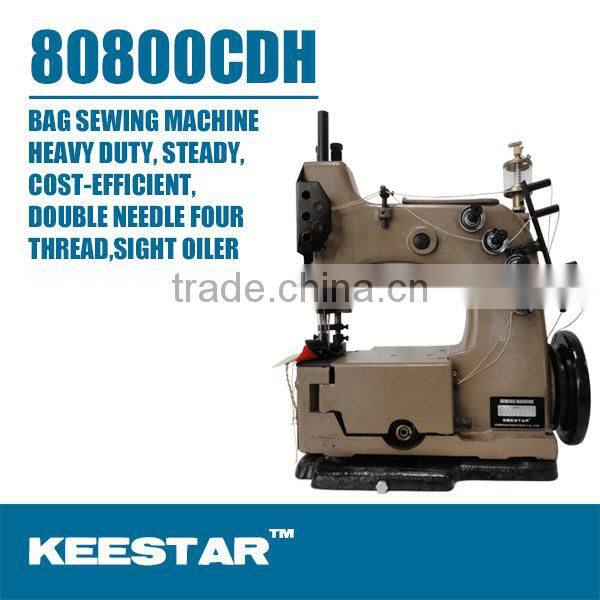

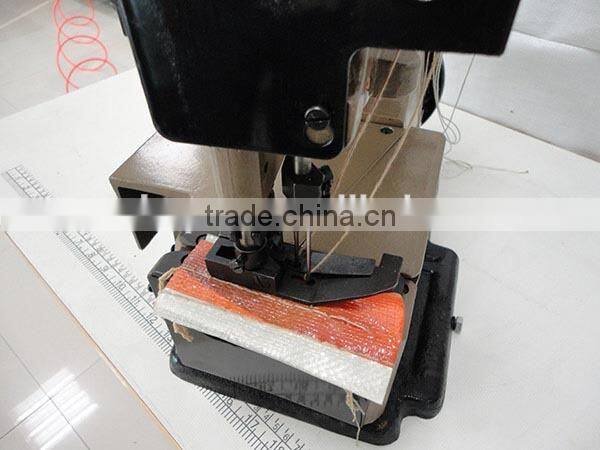

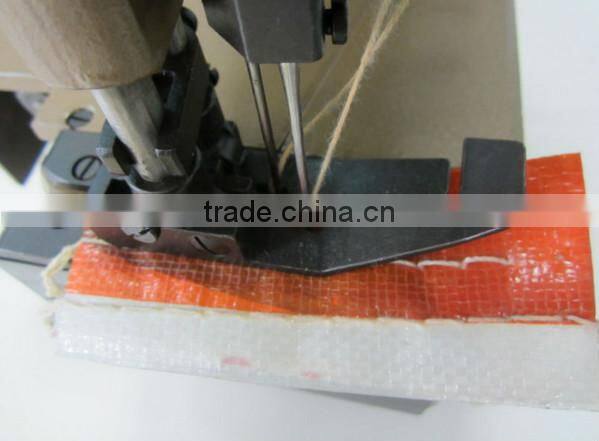

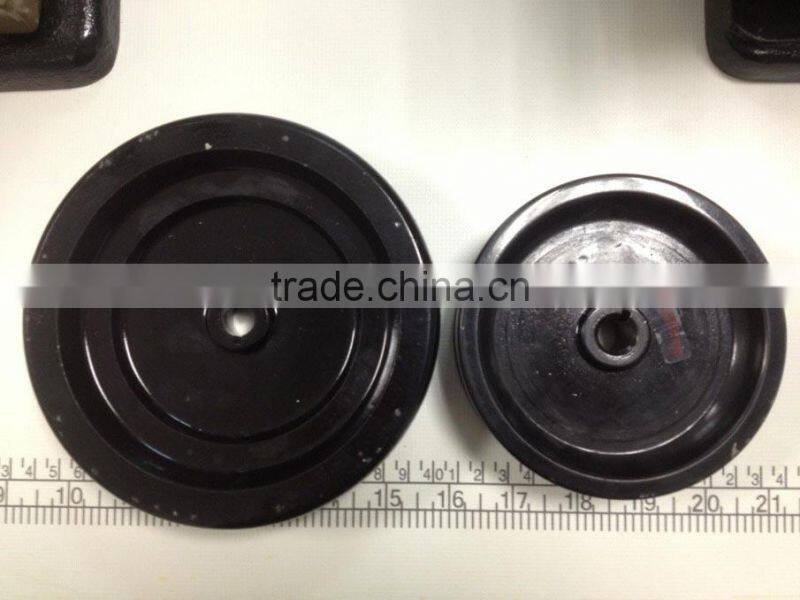

KEESTAR 80800CDH Two Needle Chain Stitch Jumbo Bag Sewing Machine



KEESTAR 80800CDH Two Needle Chain Stitch Jumbo Bag Sewing Machine



KEESTAR 80800CDH Two Needle Chain Stitch Jumbo Bag Sewing Machine



KEESTAR 80800CDH Two Needle Chain Stitch Jumbo Bag Sewing Machine

Packaging & Shipping

♦Packing Details: Cartons, Export Worthy Packing

Shipping Details: Support all trade terms


Company Information

Keestar Industries(Shaanxi) Co., Ltd is leading manufacturer of bag closing machine, bag making sewing machine, automatic heavy duty sewing system and walking foot sewing machine world widely.

 KEESTAR has been focus on developing advanced sewing technology since our establishment. We have developed variety sewing systems for many applications include filled bag open top closing, woven bag making, FIBC(Flexible Intermediate Bulk Containers)seaming, sails manufacturing and repairing, slings and lashing straps, safety harness and ropes, buffing wheel and polishing wheel, shoes and footwear, sofas and automotive upholstery, carpet and rugs, net and mesh, saddles & harness and other seamed products.



KEESTAR holds leading market share in world market for bag closing machine (system) and automatic heavy duty sewing system, and FIBC sewing machine are widely applied by many world class FIBC factories.



Company location



FAQ

1. Q: Is machine sample available?

A:No. We can supply spare parts sample, but customer needs to pay for it and bear shipping cost, we   will return the parts value once order confirmed.
2. Q: What service you can supply?

A: Model recommendation, sample making, technical consulting, after-service support
3. Q: Do you supply overseas installation and debugging?
A: Yes, but customer needs to bear all overseas expenditure.
4. Q: Is your machine all original with Union Special or Newlong?
A: No. But for most of the models, it can be 100% replaceable.
5. Q: Do you supply spare parts?

A: Yes, and with fast lead time.
6. Q: What gurantee you supply?

A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat  plate.
