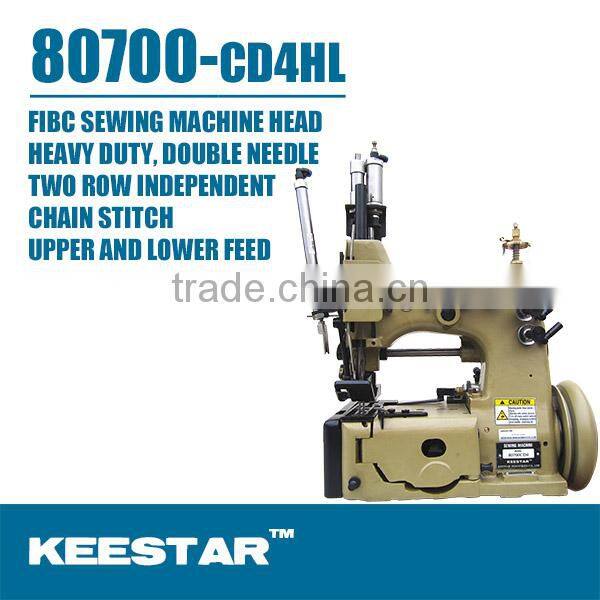

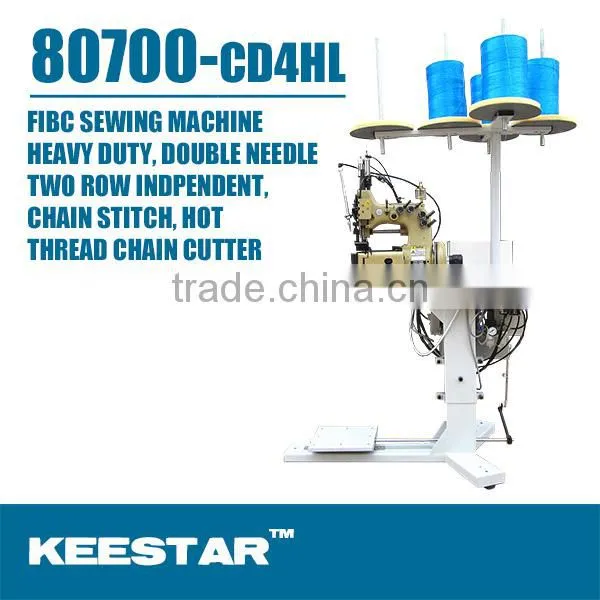

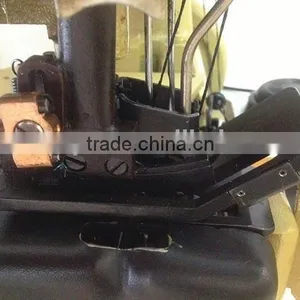

KEESTAR 80700CD4HL Two Thread Chain Stitch Skip Bag Sewing Machine
Application:
- Two independent rows double chain stitch and guides for polypropylene filler cord from the top and/or from below for sealing the needle punctures of the left needle;

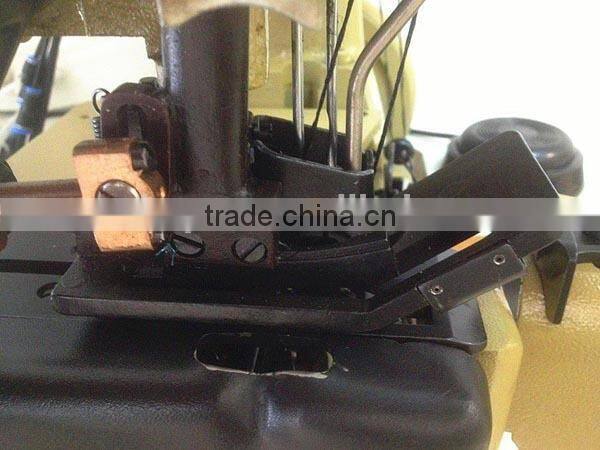

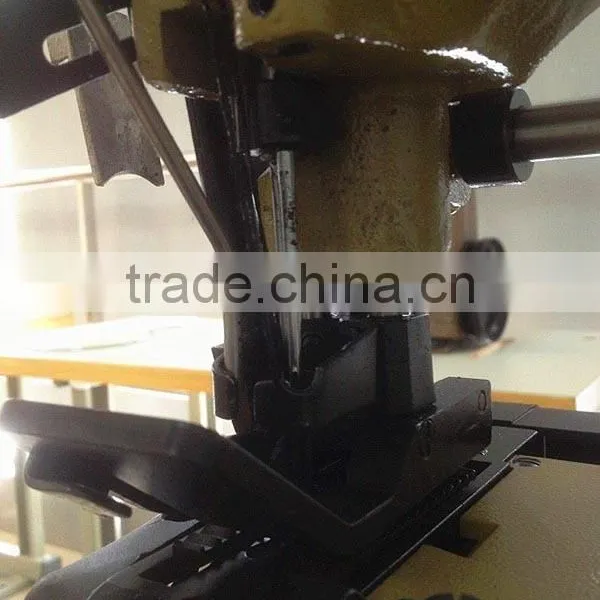

- Upper and lower feed with pneumatic operated presser foot and upper feed dog lifter, pneumatic hot thread chain cutter left of the needle;
- Capacity up to 18mm, special for heavy duty seaming on big bag;
- Needle gauge 7.2mm.

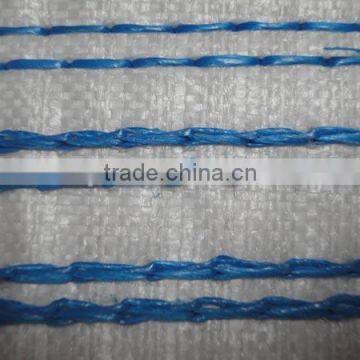

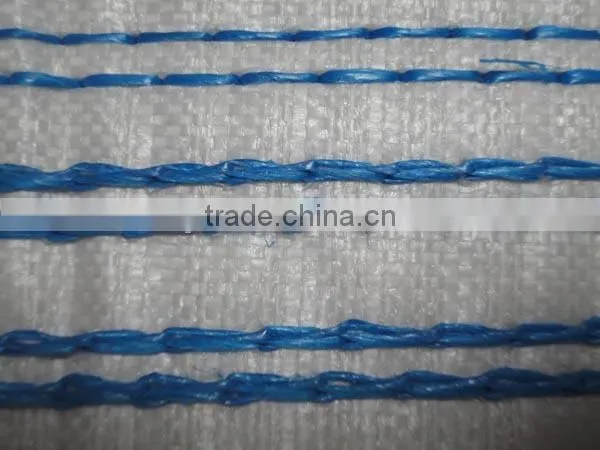

- Double needle four thread chain stitch 401.401;
- Maximum sewing speed up to 1,400rpm;
- Maximum sewing capacity up to 18mm (45/64in.), 56 plies of paper;
- Adjustable stitch length from 6 to 12mm;
- Built-in walking foot feed system;

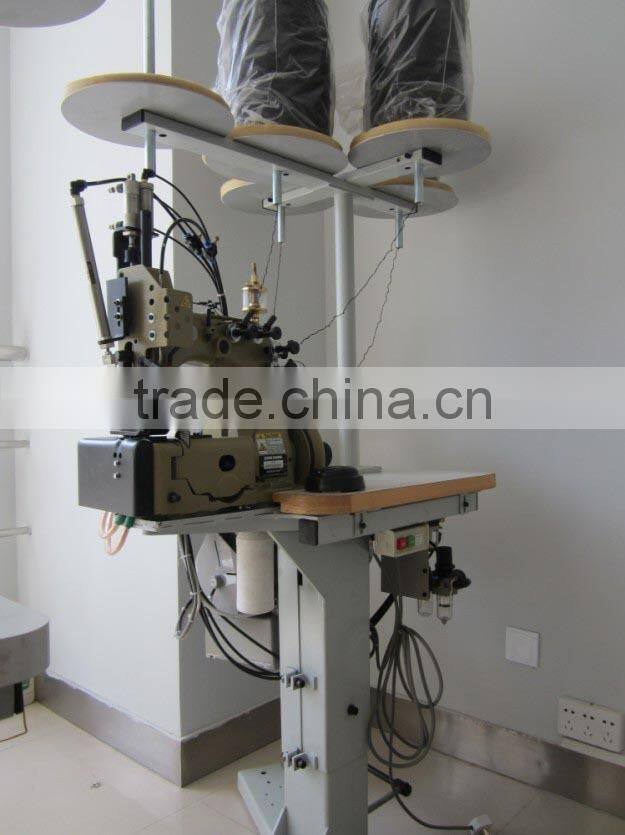

- Special designed pedestal fitted;
- Low noise, low vibration.
Specification:
| Model | 80700CD4HL | ||||
| Stitch length | 6-12mm | ||||
| Max. sewing speed | 1,400rpm | ||||
| Max. sewing capacity | 18mm (45/64in.) | ||||
| Stitch type | Double Needle Double Thread Stitch 401.401 | ||||
| Needle gauge | 7.2mm (9/32in.) | ||||
| Feed mechanism | Walking foot | ||||

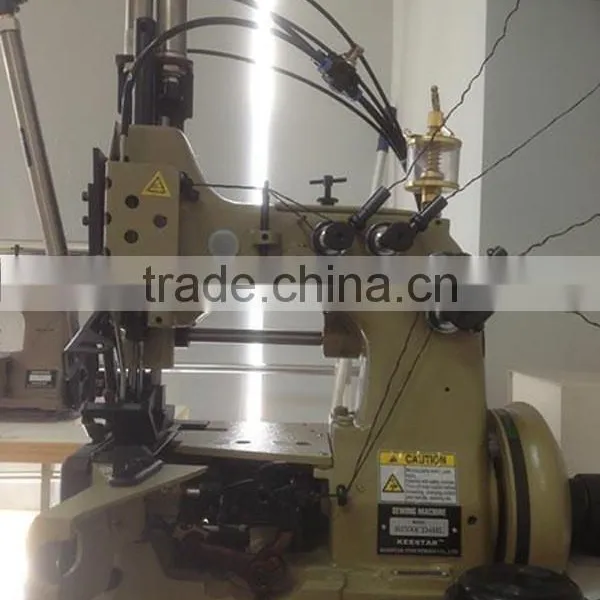

| Lubrication | Manual with Built-in Sight Feed Oiler | ||||
| Cutter | Electro-pneumatically Operated Hot Thread Chain Cutter | ||||
| Presser foot lifter | Electro-pneumatically Operated | ||||
| Needle | 9848G300/120 | ||||
| Thread | Polyester 20/6 | ||||
| Net weight | 42kg | ||||
| Gross weight | 45kg | ||||
| Dimension | 490×380×520mm |
♦Packing Details: Cartons, Export Worthy Packing
♦Shipping Details: Support all trade terms
Keestar Industries(Shaanxi) Co., Ltd is leading manufacturer of bag closing machine, bag making sewing machine, automatic heavy duty sewing system and walking foot sewing machine world widely.
KEESTAR has been focus on developing advanced sewing technology since our establishment. We have developed variety sewing systems for many applications include filled bag open top closing, woven bag making, FIBC(Flexible Intermediate Bulk Containers)seaming, sails manufacturing and repairing, slings and lashing straps, safety harness and ropes, buffing wheel and polishing wheel, shoes and footwear, sofas and automotive upholstery, carpet and rugs, net and mesh, saddles & harness and other seamed products.
KEESTAR holds leading market share in world market for bag closing machine (system) and automatic heavy duty sewing system, and FIBC sewing machine are widely applied by many world class FIBC factories.
Company location
1. Q: Is machine sample available?
A:No. We can supply spare parts sample, but customer needs to pay for it and bear shipping cost, we will return the parts value once order confirmed.
2. Q: What service you can supply?
A: Model recommendation, sample making, technical consulting, after-service support
3. Q: Do you supply overseas installation and debugging?
A: Yes, but customer needs to bear all overseas expenditure.
4. Q: Is your machine all original with Union Special or Newlong?
A: No. But for most of the models, it can be 100% replaceable.
5. Q: Do you supply spare parts?
A: Yes, and with fast lead time.
6. Q: What gurantee you supply?
A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate.
