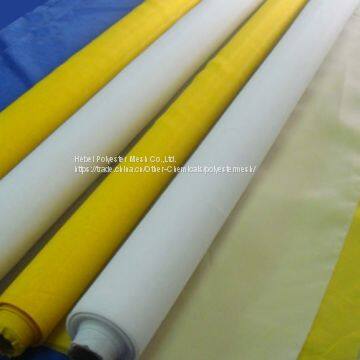

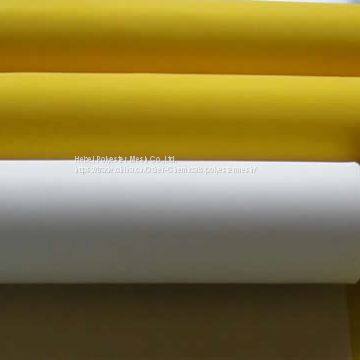

Help CenterTensile Polyester Mesh Silk Printing Screen
Related Products
Stretchable polyester mesh thin fabric is plain woven monofilament fabric suitable for fine silk printing. Also called polyamide printing screen, ink printing mesh or stationery ink filter fabric. Made with imported weaving looms, the monofilament mesh has a general mesh count ranges from 80 to 420mesh, inch 7-165T, mesh opening ranges from 25 to 1100um. The roll width varies: 1150mm,1270mm,1580mm, 1650mm, 2600mm, 3200mm, 3650mm(Max). Our polyester mesh screen is widely used in electronic PCB printed circuit board, thin film technology, key pads, the printing of textile, glass, ceramics, ads, filter ink, aerospace, petrochemica, melt filter and other high tech industries.
Polyester mesh has minimum fabric thickness, excellent tensile strength and stretching performance allowing the smooth ink flow. Monofilament polyester or polyamide mesh can guarantee accurate registration, precision ink deposit control and high abrasion resistance. As replacement for silk fabric, this synthetic dacron netting will not shrink, stretch or sag. In addition, our screen is dimensionally stable and highly-tensioned, so that the screen printing screens can be stretched and printed with a minimum off-contact distance. This capability ensures the most accurate and consistent screen printing results.
Features:
Good resistance to acid, alkali and high tension;
Stable stretching property and long work time;
Accurate processing, accurate registration;
Low off-contact printing;
High reproducibility;
High tensile strength;
Maximum printing speeds;
Minimized tension loss during the screen printing process.
100% Polyester or Polyamide Monofilament Textile Printing Screen Mesh for plate making printing, electronic printing, ceramics, glass, stained paper printing, label plate, advertising, arts and crafts and mobile telephone dustproof aspects. Available in colours of white, red, yellow.
100% monofilament polyester silk printing mesh of 25 micron, high tension fabric material used in textile printing, woven from yarn extruded from heated polyester into a single strand.
Material: 100% polyester (or nylon).
Mesh Count: 5T-120T mesh/cm(13mesh-305mesh/inch)
Mesh opening: 25-1100um
Length: 30m,50m per roll,or as your request
Width: 1-2m
Application: Widely used in CD/DVD Printing, Ceramic Decorating printing, Graphic Screen Printing.
Benefits:
Made with high quality domestic and imported raw material, advanced weaving looms and test instruments;
High tension and low elasticity;
High temperature resistance and strong waterproof mesh;
Faster printing speed;
The flat screens have accurate and standard mesh to ensure the uniformity;
Standard size and special width available as customer’s requirement, and the roll width is up to 3.6 meter.
