Specifications
Beveling machine could bevel the elbows ranging from 1/2" to 48" with the thickness from 8mm to 30mm.

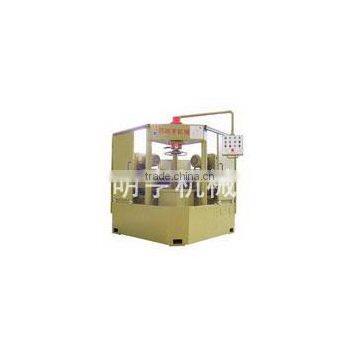

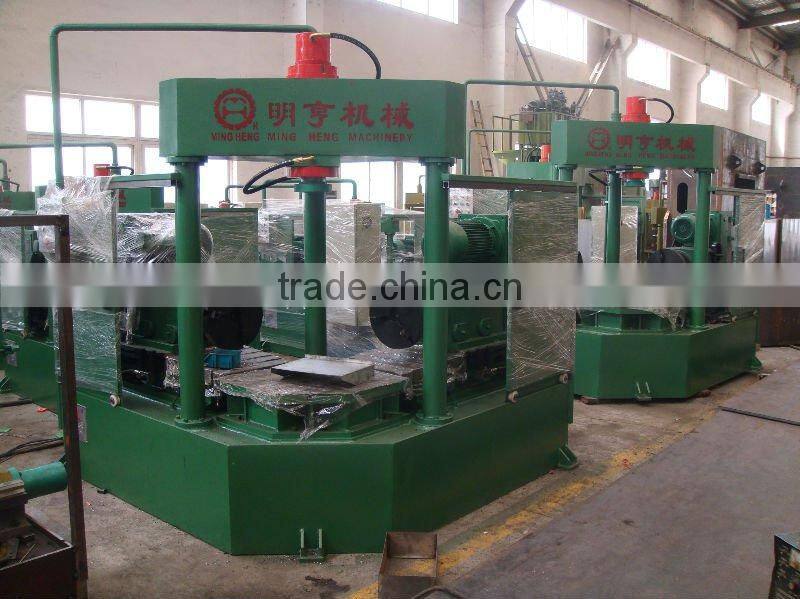

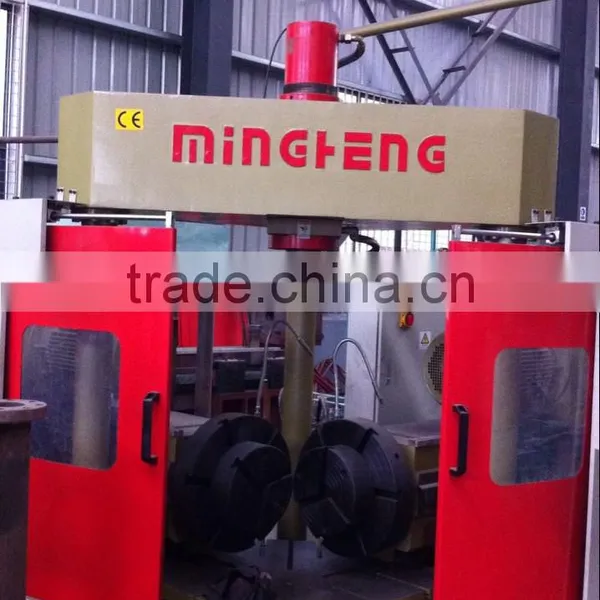

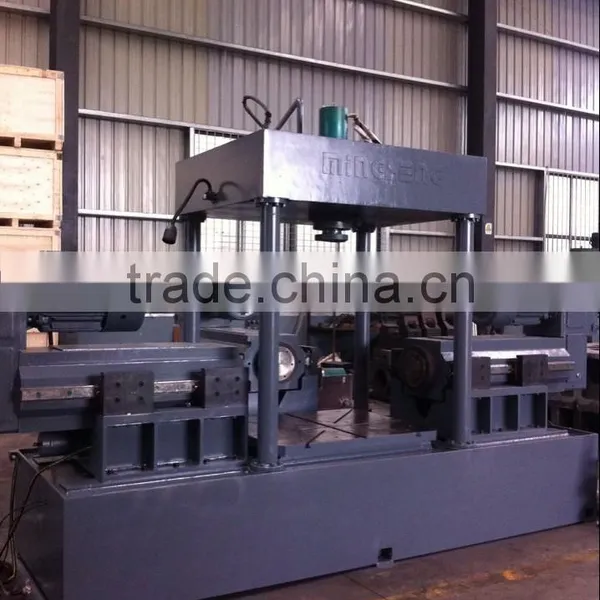

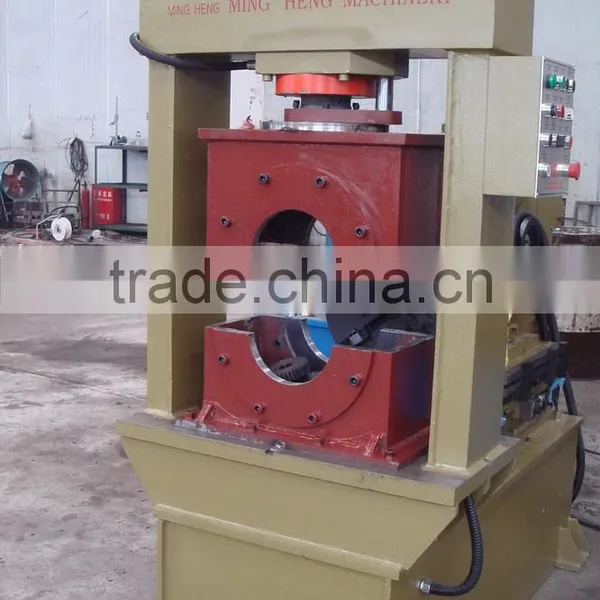

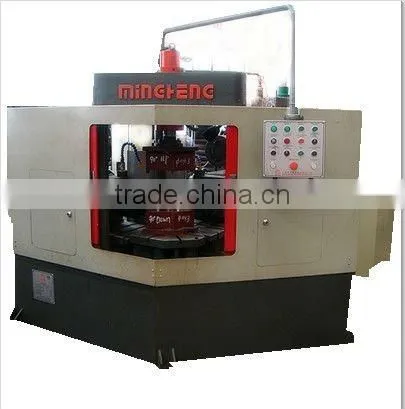

The YWDJ-J series hydraulic angular elbow double beveling machine hass the features of unique design, compact structure, beautiful look and convenient to operate
It is an ideal equipment for chamfering LR&SR 90, 60, 45 and 30 degree elbows sizes from 1/2''-48'' at both ends simultaneously
There are three cutters for each clamp disk, they serve for different range of work and can work at the same time to ensure the effective cutting and fully satisfied the stable requirements of the guide track under the status of strong cutting
Its cutting speed and feeding rate are adjustable in according to the size and the thickness of the elbows
The application of sliding tables with function of fast feeding, inching and fast retreat to enable the safety during work
The products processed by the machine are comply with relevant elbow beveling standard
Technical Specification:
| YWDJ2503A | YWDJ3204B | YWDJ4008A | YWDJ5012B | YWDJ5016A | YWDJ6324A | YWDJ6332B | YWDJ8036A | ||
| Processing Size Range (inch) | 1/2-3'' | 1-4'' | 3-8'' | 5-12'' | 8-16'' | 12-24'' | 22-32'' | 28-36'' | |
| Max Processing Thickness (SCH) | SCH80 | SCH80 | SCH80 | SCH80 | SCH60 | SCH40 | SCH40 | SCHXS | |
| Spindle Moving Type | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | |
| Workpiece Clamping Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| System Pressure (Mpa) | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | |
| Overall Dimension (M) | 1.75*1.5*1.6 | 2.4*0.9*1.9 | 2.7*1.2*2.5 | 3.0*1.2*2.8 | 3.0*1.4*3.0 | 3.8*1.6*3.8 | 4.8*1.8*4.5 | 5.5*4.5*5.5 | |
| General Power (KW) | 9 | 11 | 19 | 26 | 34 | 64 | 80 | 98 | |
| Beveling angle | 30, 45, 60, 90 | 30, 45, 60, 90 | 30, 45, 60, 90 | 30, 45, 60, 90 | 30, 45, 60, 90 | 30, 45, 60, 90 | 30, 45, 60, 90 | 30, 45, 60, 90 |
