Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > Elbow Machine YLT200A

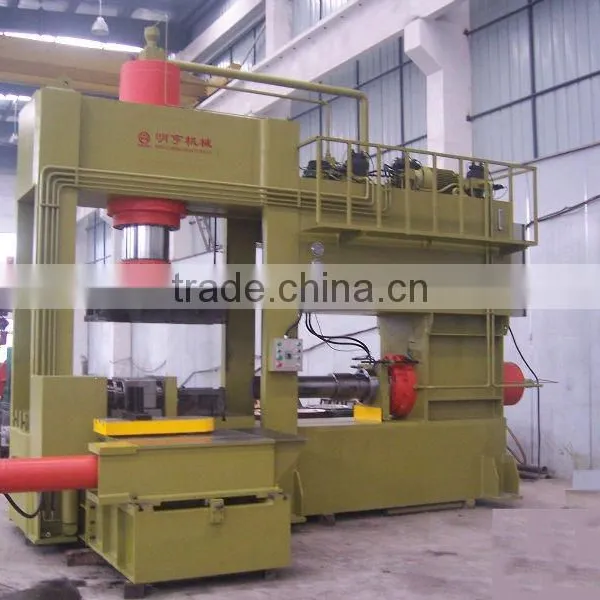

Elbow Machine YLT200A
US$ 100,000 - 108,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
MINGHENG
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Shanghai, China
Brand Name
MINGHENG
Model Number
YLT200
Machine Type
Pipe and Tube Bending Machine
Raw Material
Pipe
Material / Metal Processed
Stainless Steel
Power
Hydraulic
Automation
Automatic
Extra Services
End Forming
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas

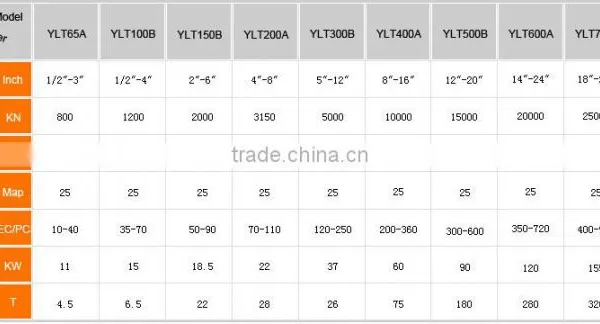

Item | Unit | YLT200A | |
Processing Size Range | Inch | 2"-8" | |
Max Processing Thickness | SCH | 160 | |
Nominal Pressure | KN | 3150 | |
Return Stoke Force | KN | 300 | |
Max Opening Height | mm | 980 | |
Max Fluid Working Pressure | Mpa | ~25 | |
Max Stroke of Slider | mm | 700 | |
Sliding Speed | Rapid down | mm/s | ~150 |
In work | mm/s | 15 | |
Return | mm/s | ~130 | |
Working table Effective Size | LH/RH x FRONT/REAR | mm | 1350×650 |
Side Pushing (cylinder) Force | KN | 2200 | |
Max Side Pushing (cylinder) Stroke | mm | 780 | |
Side Pushing (cylinder) Speed | mm/s | 8-15 | |
Return Speed of Side Pushing (cylinder) | mm/s | ~150 | |
center height of the mould | mm | 155 | |
Overall dimension | mm | 4500×1600×3650 | |
Machine weight | T | ~22 | |
Motor power | KW | ~28 | |
We are the professional and leading manufacturer of elbow/tee cold forming mahines and hot forming machines, also large press machines and dies&mandrils .We have more than 20 years experience in desiging and producing machines.
Please check our information from our website . We are very attention for international market,and i am relly hope we can cooperate with your group in future time.Our machine have very high market share for chinese domestic market.Also we sold to PANTECH,CINTOLO,TASTA,DEE ,GIPL,those big pipefitting manufactory.Our machine is high quality and guarantee time for our machine is two years. Hope in future we can service for your company. So if you have any interesting item please contact in anytime.We will do our best to give the good price and quality.Thanks.
Please check our information from our website . We are very attention for international market,and i am relly hope we can cooperate with your group in future time.Our machine have very high market share for chinese domestic market.Also we sold to PANTECH,CINTOLO,TASTA,DEE ,GIPL,those big pipefitting manufactory.Our machine is high quality and guarantee time for our machine is two years. Hope in future we can service for your company. So if you have any interesting item please contact in anytime.We will do our best to give the good price and quality.Thanks.
link for presses machine video:
https://youtu.be/ASMCc710gv0
