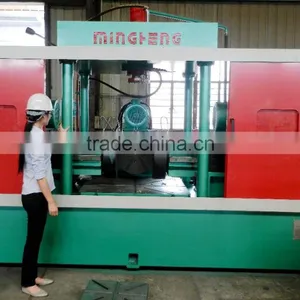

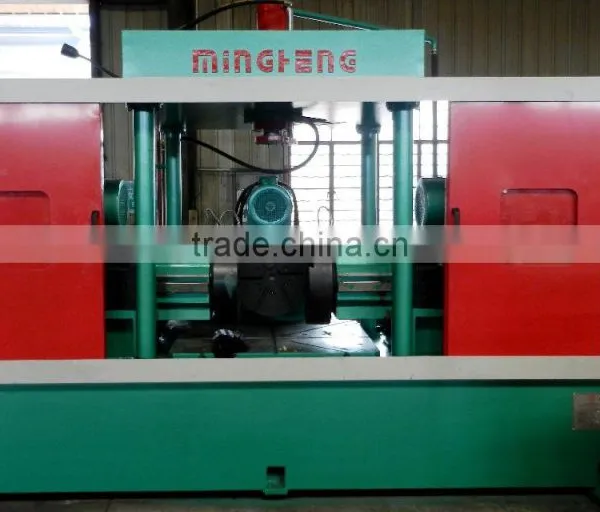

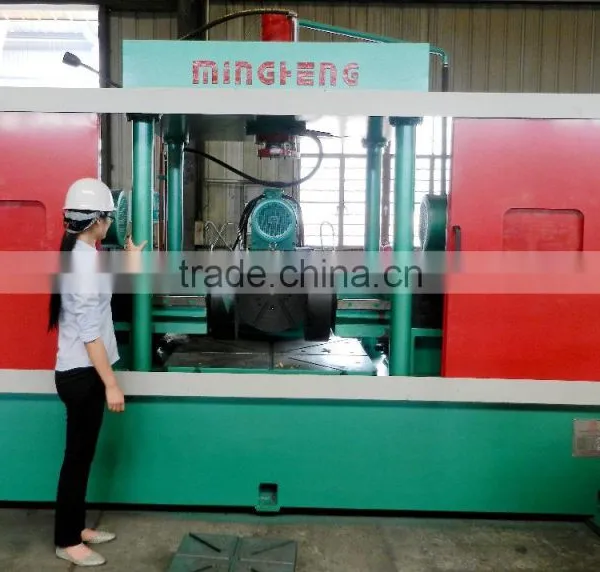

YSDJ5016A Tee Cold Forming Machine

1. The YSDJ5016A tee beveling machine is used for beveling both equal and unequal tees of size 8" to 16". The tee materials can be carbon steel, stainless steel and alloy steel etc.

2. There are three tips for each cutter in different angles,these tips serve for different range of work and can work at the same time to ensure the effective cutting, fully satisfy the stable requirements of the guide track under the status of strong cutting and save working time and develop production efficiency.

3. The cutting speed is hydraulic stepless speed control and the processing stroke is also adjustable in according to the size and the thickness of equal or unequal tees, and the pipe fittings processed by the machine are strictly complying with relevant tee beveling standard.

4. The application of floating cutter for large size helps to solve the difficulties of rough roundness of hydro-forming equal and unequal tees, which ensures the high beveling precision and qualified ratio.

5. The machines have high precise-locating device for tee jigs, excellent hydraulic clamping device and individual hydraulic power unit. The application of sliding tables with functions of fast feeding, inching and fast retreat enables the safety during working.

6. There’re three kinds of operation methods: Manual, Semi-auto and Automatic; easy operation system helps to save working time and develop production efficiency.

 the goods will be loaded on Shanghai Port

  Seller warrants to the buyer that the machine itself will be for a period of 24 months from the date of commissioning at the seller’s workshop, while because of the improper operation staffs to operate the machine, which cause the mechanical breakdown, that does not belong to warranty responsibility

Mingheng Pipe Fittings Machinery Co., Ltd is the leading manufacturer of pipe fittings machinery in China. Established in April,2006 and located in Baoshan District, Shanghai. Mingheng is a professional manufacturer for designing and manufacturing whole factory production equipment of butt-weld pipe fittings by integrating research-development, production and sales together. With improvements in technology research, development capabilities and the ever-increasing demands from both domestic market and overseas market, Mingheng Pipe Fittings Machinery Qidong Co., Ltd was established in Binhai Industry Park, Qidong City in December, 2009. Nowadays, Mingheng has grown into a global manufacturer and exporter.
