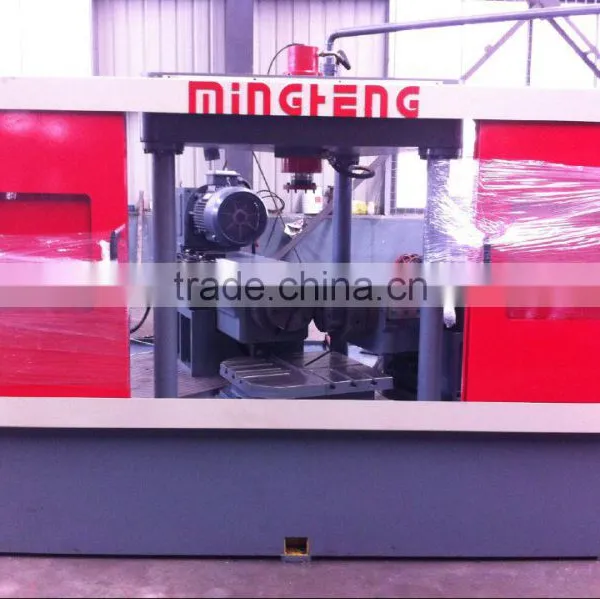

Tee beveling machine
- 45 Set / Sets per Month
- SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | MING HENG | |
| Model Number | YSDJ4008A | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Tee beveling machine could bevel the Tee size ranging from 4" to 8" with thickness from 2mm to 20mm.The YSDJ series hydraulic tee beveling machine has the features of unique design, compact structure beautiful look and convenient to operate.
It is an ideal equipent for beveling both equal and unequal tees of size from 1/2'' to 48''
There are three cutters for each clamp disk, they serve for different range of work and can work at the same time to ensure the effective cutting and fully satisfied the stable requirements of the guide track under the status of strong cutting
Its cutting speed are adjustable in according to the size and the thickness of elbows
The products processed by the machine are comply with relevant elbow beveling standard
| YSDJ2503A | YSDJ3204B | YSDJ4008A | YSDJ4010B | YSDJ5012B | YSDJ5016A | YSDJ6324A | YSDJ6332B | YSDJ8036A | |
| Processing Size Range (inch) | 1/2-3'' | 1-4'' | 3-8'' | 4-10'' | 5-12'' | 8-16'' | 12-24'' | 22-32'' | 28-36'' |
| Max Processing Thickness (SCH) | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 |
| Spindle Moving Type | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control |
| Workpiece Clamping Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| System Pressure (Mpa) | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Overall Dimension (M) | 1.9*1.75*1.9 | 1.9*1.75*1.9 | 2.4*2.1*2.2 | 3.0*2.3*2.4 | 3.5*2.5*2.8 | 3.6*2.9*3.0 | 5.1*3.5*3.8 | 5.6*3.9*4.0 | 6.2*4.3*4.5 |
| General Power (KW) | 16 | 16 | 25 | 26 | 36 | 40 | 48 | 78 | 95 |
| Weight (T) | 3.1 | 3.9 | 7.3 | 9.5 | 11.8 | 14 | 24 | 31 | 38 |
