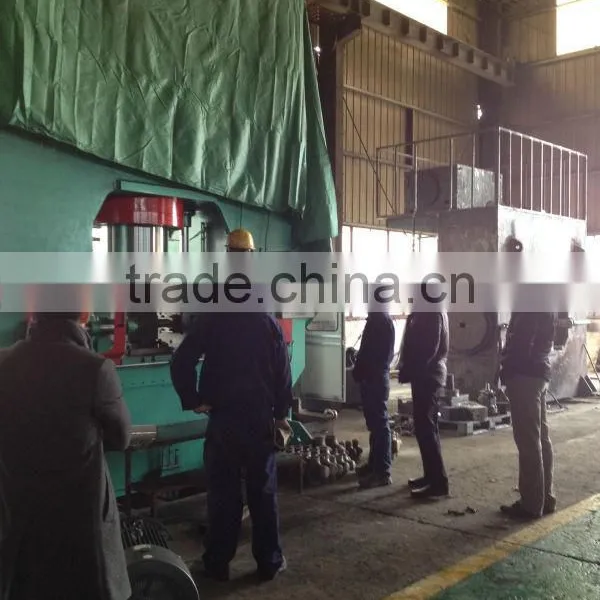

Help CenterHydraulic Tee Pressing Machine
Related Products
Specifications
Hydraulic Tee press machine of model YSLT150A could be used for manufacturing tees with size ranging from 1/2" to 5"Tee Elbow cold forming machine of model YSLT100A could be designed and manufactured for manufacturing equal and reducing tees of sie from 1/2" to 4" with thickness from SCH10 to XXS of stainless steel, carbon steel, alloy steel, monel, nickel alloy, but the normal model just will be designed and manufacured for manufacturing maximum thickness up to SCH80
Main features:
1.It is constructed with strong metal frame with good apearence and stable functioning.
2.It has individual power construction and electrical system,adopts reliable PLC button centralized control, use programmed touch screen operation system, apply proportional valve to regulate pressure, it will pressurized in curve, which can be conveniently adjusted and operated both manually and automatically.
3. Our specical designing could reduce the blank size of raw material.
| Model | YSLT100A | YSLT150B | YSLT200A | YSLT300B | YSLT400A | YSLT500B | YSLT600A | YSLT700B |
| forming size range (inch) | 1/2''-4 | 2''-6'' | 2''-8'' | 5''-12'' | 6''-16'' | 8''-20'' | 10''-24'' | 12''-28'' |
| mould lock power (KN) | 5000 | 8000 | 12500 | 22000 | 25000 | 35000 | 45000 | 60000 |
| mould lock stroke (mm) | 450 | 500 | 600 | 800 | 1000 | 1200 | 1300 | 16500 |
| side pushing stroke (mm) | 200 | 250 | 300 | 400 | 450 | 500 | 600 | 700 |
| ejector force (KN) | 500 | 1000 | 1500 | 2000 | 2500 | 3150 | 4000 | 5000 |
| stroke of demoulding (mm) | 100 | 150 | 200 | 250 | 300 | 600 | 650 | 850 |
| work table size (mm) | 700*700 | 1000*1000 | 1100*1100 | 1200*1500 | 1400*1800 | 1800*1800 | 2000*2000 | 2200*2500 |
| enriching power (Mpa) | 300 | 250 | 200 | 200 | 200 | 160 | 160 | 160 |
| max working pressure (Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| general power (KW) | 55 | 70 | 110 | 276 | 295 | 350 | 400 | 580 |
| side pushing power (KN) | 4500X2 | 7000X2 | 11000X2 | 18000X2 | 22000X2 | 30000X2 | 40000X2 | 55000X2 |
