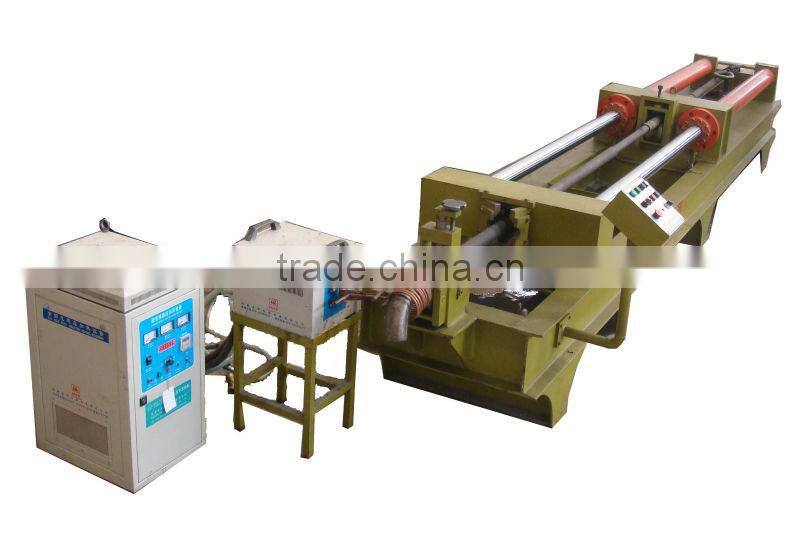

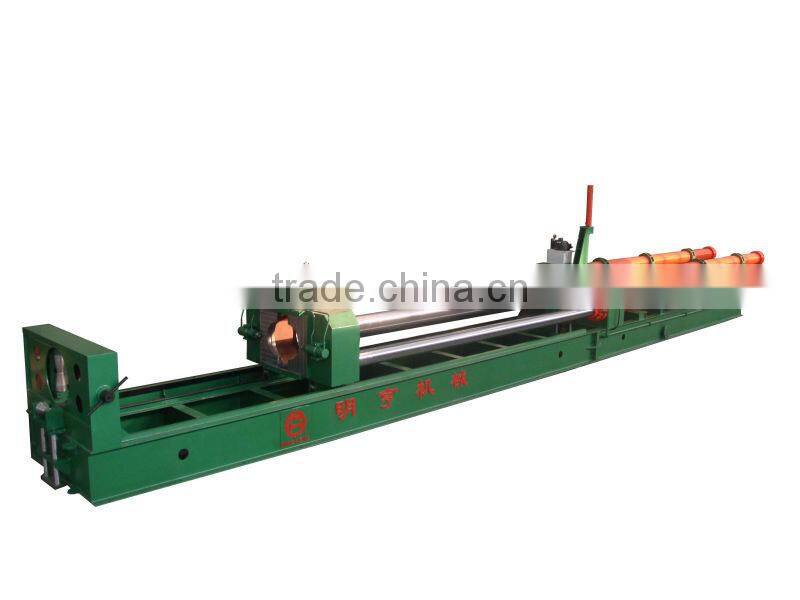

Help CenterElbow Hot Forming Machine
US$ 50,000 - 850,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
MINGHENG
Model Number:
YRT600A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Elbow Hot Forming MachineUS$ 50,000 - 850,000MOQ: 1 Set -
Elbow Induction Hot Forming MachineUS$ 50,000 - 850,000MOQ: 1 Set
-
Elbow Hot Forming MachineUS$ 50,000 - 850,000MOQ: 1 Set
-
Induction Pipe Bending MachineUS$ 50,000 - 850,000MOQ: 1 Set
-
Induction Pipe Bending MachineUS$ 50,000 - 850,000MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
MINGHENG
Model Number
YRT600A
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Elbow Hot Forming Machine could manufacture the carbon steel and alloy steel elbows ranging from 8" to 24".The YRT series Elbow Hot Pushing Machine is designed mainly for manufacturing SR&LR elbows of carbon steel and alloy steel with max diameter up to 1400mm. These elbows are widely used in the connection of the industrial pipelines for the Petrochemical , gas, oil pipes, electrical power and food, etc
It has individual power construction and electrical system, adopts PLC centre control, machine is much easy to be operated
It has two heating method: high frequency and intermediate frequency
The application of numerical control plus automatic frequency control made the pushing speed and forming temperature could be monitored and controlled easily, which enables the high quality
It is suitable for batch production
| YRT125A | YRT250A | YRT400A | YRT600A | YRT800A | YRT1200A | YRT1400A | ||
| processing size range (inch) | 1/2-5'' | 4-10'' | 5-16'' | 8-24'' | 16-32'' | 20-48'' | 20-56'' | |
| max processing thickness (mm) | 16 | 26 | 41 | 46 | 46 | 46 | 46 | |
| max pushing power (KN) | 750 | 2000 | 2450 | 4000 | 6100 | 8000 | 11000 | |
| stroke of main cylinder (mm) | 2500 | 6000 | 6500 | 8000 | 8000 | 10000 | 10000 | |
| outlook size (M) | 6.6*0.95*1.0 | 14*1.6*1.5 | 15*1.8*2.0 | 19*2.0*2.2 | 19*2.4*2.8 | 25*4.5*3.5 | 25.5*4.8*3.9 | |
| system pressure (Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| mechanical power (kw) | 11 | 24 | 40 | 54 | 75 | 97 | 105 | |
| heating power (kw) | 80 | 300 | 400 | 500 | 800 | 1250 | 1250 | |
| weight (T) | 5.6 | 13 | 17 | 29.5 | 41 | 72 | 105 |
