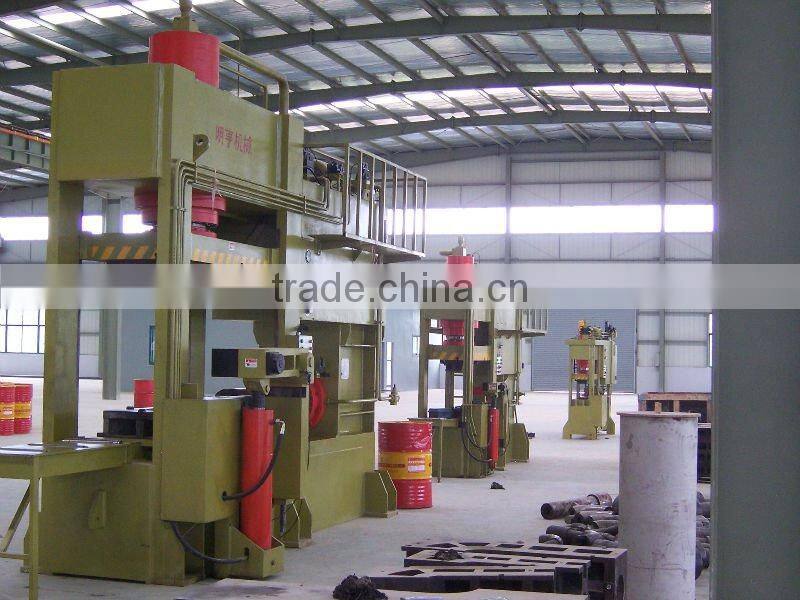

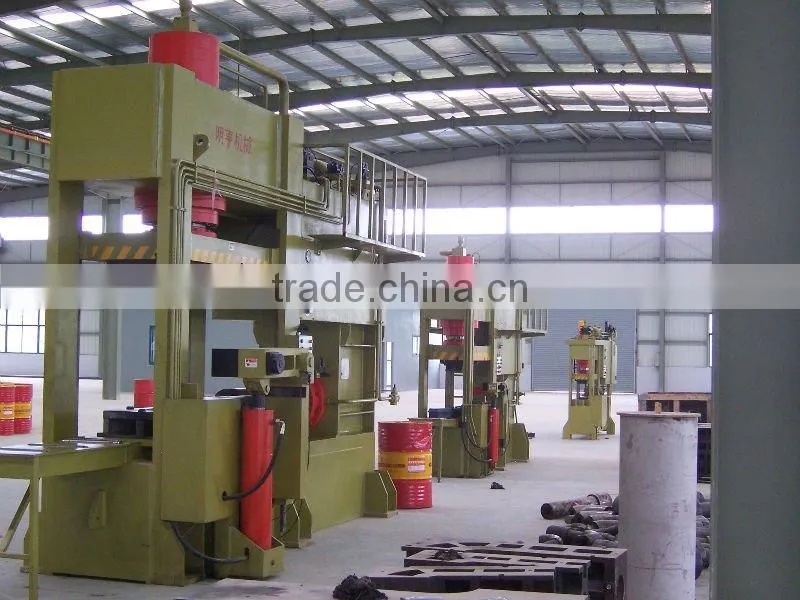

Help CenterElbow Cold Forming Machine
Related Products
Our machine is designed for manufacturing elbow of 90,60,30deg.R=1.0D&1.5D with diameter from 1/2”to 32 of stainless steel ,carbon steel,alloy steel and some kinds of copper steel.It has individual power construction and electrical system,adopts PLC button centralized control and programmed touch screen operation system,which can be convenient adjusted and operated both manually and automatically.It has special demoulding device and mould orientation device which make the mould change easy.
The specification (dimension, radius, thickness) of the finished products can meet the stipulated international standard, such as ANSI B16.9, ANSI B16.28, DIN2605, JIS, GOST, SMS, 3A, ISO, etc, The machines are fit for the batch production
It is constructed with strong mental frame with good appearance and stable functioning.
It has individual power construction and electrical system, adopts PLC button centralized control and programmed touch screen operation system, which can be convenient adjusted and operated both manually and automatically
It has special demoulding devices and mould orientation device which makes the mould change easy
It has the features of energy saving, easy operation, high quality for products compare to hot forming process
| YLT65A | YLT100B | YLT150B | YLT200A | YLT300B | YLT400A | YLT500B | YLT600A | YLT700A | YLT800A | ||
| forming size range (inch) | 1/2'' - 3'' | 1/2'' - 4'' | 2'' - 6'' | 4'' - 8'' | 5'' - 12'' | 8'' - 16'' | 12'' - 20'' | 12'' - 24'' | 18'' - 28'' | 20'' - 32'' | |
| Max mould lock power (KN) | 800 | 1200 | 2000 | 3150 | 5000 | 10000 | 15000 | 20000 | 25000 | 35000 | |
| side pushing power (KN) | 630 | 1000 | 1500 | 2000 | 3500 | 5600 | 8000 | 10000 | 12500 | 15000 | |
|
working pressure (Map) |
25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| processing speed (SEC/PCS) | 10-40 | 35-70 | 50-90 | 70-110 | 120-250 | 200-360 | 300-600 | 350-720 | 400-900 | 500-1200 | |
| General Power (KW) | 11 | 15 | 18.5 | 22 | 37 | 60 | 90 | 120 | 145 | 190 | |
| weight (T) | 4.5 | 6.5 | 22 | 28 | 42 | 75 | 180 | 280 | 320 | 520 |
