Help CenterElbow Beveling Machine
US$ 50,000 - 850,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
MINGHENG
Model Number:
YWDJ3204B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
MINGHENG
Model Number
YWDJ3204B
After-sales Service Provided
Engineers available to service machinery overseas
Specifications

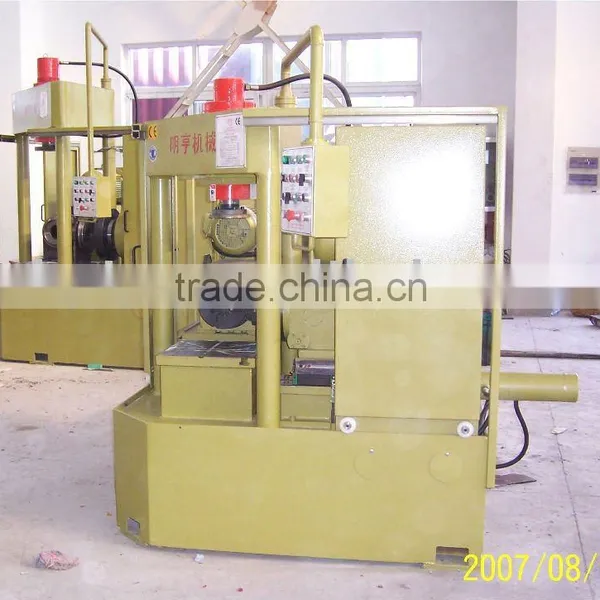

Elbow Beveling Machine of model YWDJ3204B could bevel the elbows ranging from 1" to 4" with different materials automaticallyThe YSDJ series hydraulic tee beveling machine has the features of unique design, compact structure beautiful look and convenient to operate.
It is an ideal equipent for beveling both equal and unequal tees of size from 1/2'' to 48''
There are three cutters for each clamp disk, they serve for different range of work and can work at the same time to ensure the effective cutting and fully satisfied the stable requirements of the guide track under the status of strong cutting
Its cutting speed are adjustable in according to the size and the thickness of elbows
The products processed by the machine are comply with relevant elbow beveling standard
| YSDJ2503A | YSDJ3204B | YSDJ4008A | YSDJ4010B | YSDJ5012B | YSDJ5016A | YSDJ6324A | YSDJ6332B | YSDJ8036A | |
| Processing Size Range (inch) | 1/2-3'' | 1-4'' | 3-8'' | 4-10'' | 5-12'' | 8-16'' | 12-24'' | 22-32'' | 28-36'' |
| Max Processing Thickness (SCH) | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 |
| Spindle Moving Type | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control |
| Workpiece Clamping Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| System Pressure (Mpa) | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Overall Dimension (M) | 1.9*1.75*1.9 | 1.9*1.75*1.9 | 2.4*2.1*2.2 | 3.0*2.3*2.4 | 3.5*2.5*2.8 | 3.6*2.9*3.0 | 5.1*3.5*3.8 | 5.6*3.9*4.0 | 6.2*4.3*4.5 |
| General Power (KW) | 16 | 16 | 25 | 26 | 36 | 40 | 48 | 78 | 95 |
| Weight (T) | 3.1 | 3.9 | 7.3 | 9.5 | 11.8 | 14 | 24 | 31 | 38 |
