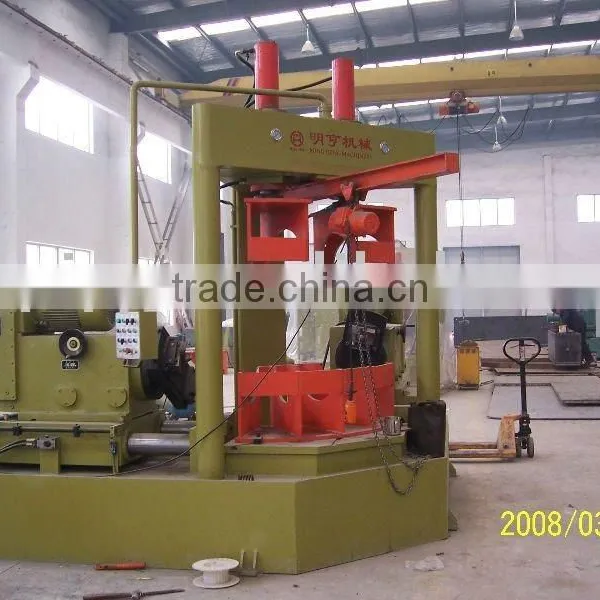

elbow beveling machine
- 45 Set / Sets per Month
- shanghai
- T/T
- 1600 Ton Heavy Duty Hydraulic Used Car Shell Gantry Type Shear Machine OEM Available
- 4axis 5axis Large size and thickness(0-40mm) cnc plasma cutting machine
- Automatic cnc plasma cutting machine gate cnc router 120a/200a
- Fully automatic 20mm plasma cutting machine custom size high quality
- 200mm pipe table axe for plasma metal cutting machine spare parts in weifang
- China gantry cnc plasma and oxy cutting machine dust removal equipment
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | MING HENG |
Model Number: | YWDJ5016A | Voltage: | 380, 400, 415 and 450 | Rated Power: | 33KW |
Dimension(L*W*H): | various based on the machine | Weight: | 8.5T | Certification: | CE and ISO9001 |
Warranty: | 1-2 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
processing size range 8''-16'processing thickness of Sch20s--Sch80
CE and ISO certificates
floating cutter
resonable price
Beveling machine has the features of unique design, compact structure, beautiful look and convenience to operate
It is an ideal equipment for chamfering metal right-angle elbow end and for beveling both LR&SR (90degree and 45 degree) elbow of size 1/2'' to 48''
The products processed by the machine are comply with relevant elbow beveling standard.
This machine drives strongly, cuts quickly and works efficiently. The cutting speed is adjustable in according to the size and the elbow thickness
It contains novel- structured floating cutter support, well and truly oriented workpiece clamp and qualified excellent hydraulic feed lock device to ensure normal and quick forward/ backward movement of the workpiece on the slipway
This model YWDJ6320A was designed and manufactured for beveling the elbows of stainless steel, carbon steel and alloy steel with ranging from 14" to 20" with the thickness from 8mm to 30mm accordingly
It could bevel at both ends simultaneously to confirm the correct 90 degree
Technical Specification:
YWDJ2503A | YWDJ3204B | YWDJ4008A | YWDJ4010B | YWDJ5012B | YWDJ5016A | YWDJ6324A | YWDJ6332B | YWDJ8036A | |
Processing Size Range (inch) | 1/2-3'' | 1-4'' | 3-8'' | 4-10'' | 5-12'' | 8-16'' | 12-24'' | 22-32'' | 28-36'' |
Max Processing Thickness (SCH) | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 |
Spindle Moving Type | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control |
Workpiece Clamping Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
System Pressure (Mpa) | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
Overall Dimension (M) | 1.5*1.5*1.6 | 1.75*1.75*1.9 | 2.1*2.1*2.2 | 2.3*2.3*2.4 | 2.5*2.5*2.8 | 2.9*2.9*3.0 | 3.5*3.5*3.8 | 3.9*3.9*4.0 | 4.3*4.3*4.5 |
General Power (KW) | 9 | 12 | 19 | 19 | 26 | 34 | 65 | 80 | 98 |
Weight (T) | 2.1 | 2.8 | 6.3 | 6.5 | 7.2 | 9.7 | 16 | 21 | 26 |
