WEW-1000B Series Computer Display Hydraulic Universal Tension Testing Machine Price
- Tianjin sea port or Huanghua sea port
- T/T Credit Card
You May Like
-
1000/2000KN Digital Display Compression-Testing Machine Price
-
1000/2000KN Digital Display Pressure Testing Machine Price
-
WEW Series Computer Display Hydraulic Servo Universal Tension Testing Machine Price
-
WSJ Series Hydraulic Universal Tensile Testing Machine For Rebar
-
WSJ Series Computer Controlled Electro Servo Hydraulic Universal Testing Machine
-
Computer Control Steel Tensile Testing Machine Price
Product Details
| Place of Origin | Hebei, China | Brand Name | OBRK | |
| Model Number | WEW(WAW)-100B/300B/600B/1000B/2000B | Power | Other, Electronic, 380v | |
| Usage | Compression Testing Machine |
Product Description

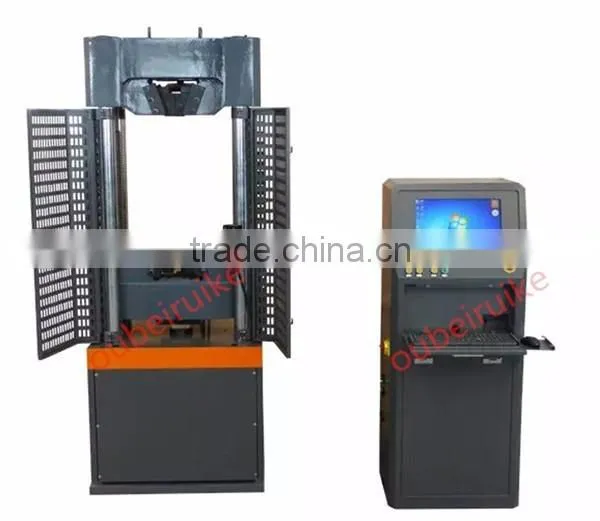

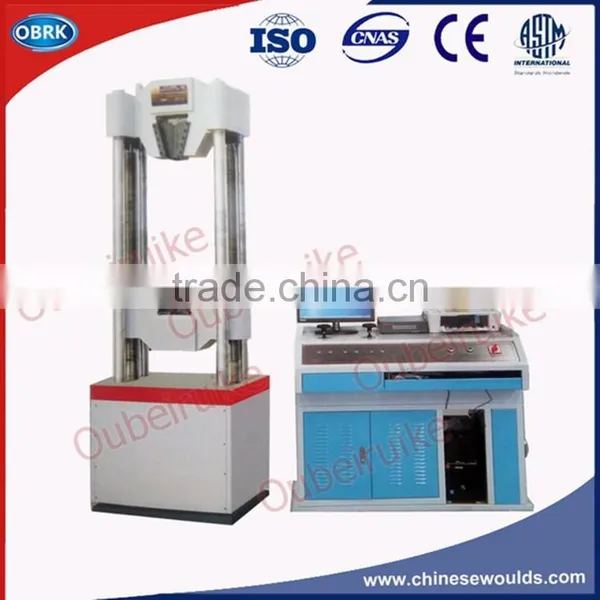

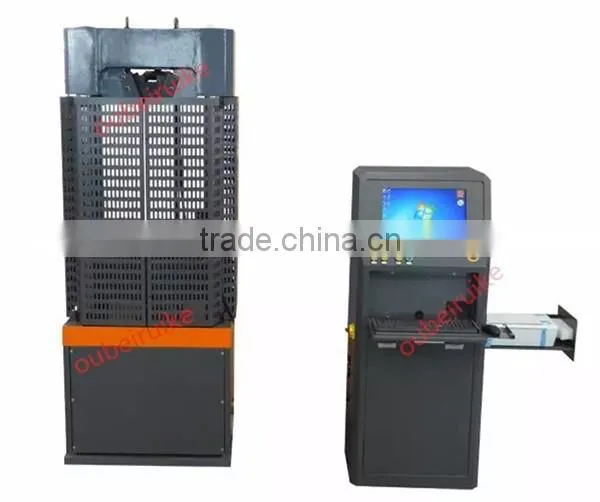

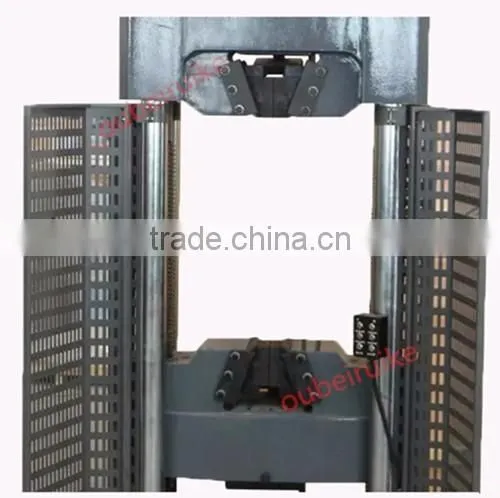

WEW-1000B Series Computer Display Hydraulic Universal Tension
WEW-100B/300B/600B/1000B/2000B
It's suitable for tension, compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and nonmetal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
Technical PAarameters:
| Model | WEW-300B | WEW-600B | WEW-1000B | WEW-2000B |
| Max. Load (kN) | 300 | 600 | 1000 | 2000 |
| Test Range (mm) | 0-60 0-150 0-300 | 0-120 0-300 0-600 | 0-200 0-500 0-1000 | 0-400 0-1000 0-2000 |
| Indication Error(%) | ±1 | ±1 | ±1 | ±1 |
| Test force rate control | 0.1-100%F.S/min 0.2-100%F.S/min | |||
| Deformation rate control | 0.1-100%F.S/min | |||
| Displacement rate control | 0.5-50mm/min | |||
| Speed Accuracy | ±5%mm/min | |||
| Max. distance between upper and lower Pressure Plate (mm) | 600 | 700 | 700 | 700 |
| Max. distance between the jaws | 600 | 700 | 700 | 700 |
| Bending Test Branch Roller Width (mm) | 30-460 | 30-600 | 60-700 | 60-750 |
| Round Sample Clamping Diameter (mm) | Φ10-32 | Φ13-40 | Φ20-60 | Φ20-70 |
| Clamping thickness of flat (mm) | 0-20 | 0-30 | 0-40 | 0-40 |
| Clamping Width of Flat Sample (mm) | ≤60 | ≤70 | ≤80 | ≤110 |
| Shear Specimen Diameter (mm) | 0-10 | 0-15 | 0-20 | 0-30 |
| Branch Roller Width (mm) | 435 | 565 | 650 | 750 |
| Max. Piston Stoke (mm) | 200 | 250 | 250 | 250 |
| Pump Motor Power (kw) | 2 | 2 | 2.5 | 3 |
| Host Dimension (LxWxH) | 740x460x1965 | 880x600x2150 | 1000x700x2350 | 1100x760x2700 |
| Control cabinet Dimensions | 1080x650x1200 | 1080x650x1200 | 1080x650x1200 | 1080x650x1200 |
| Weight (kg) | 1700 | 2500 | 3500 | 4500 |

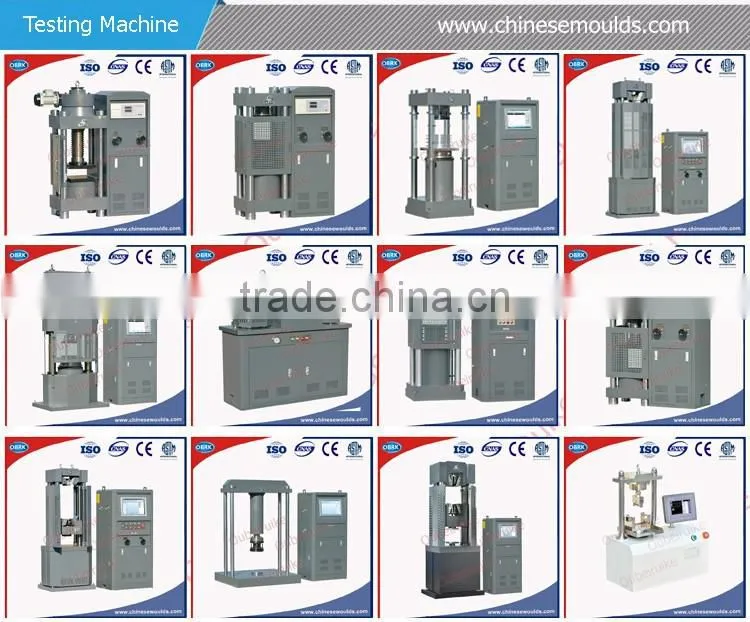

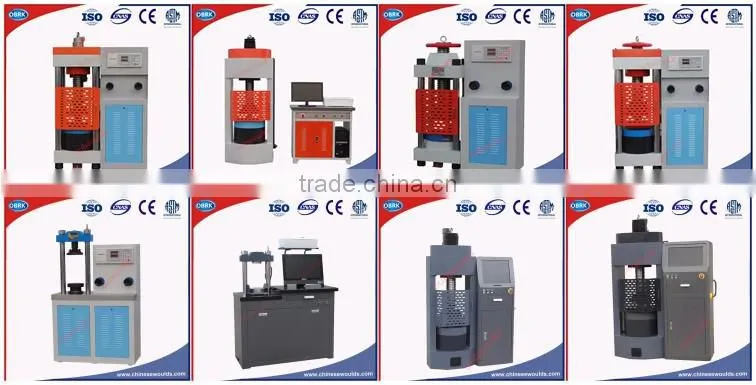

We also produce others type of Compression Testing Machine:
1. Installation and training:
a. If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service:
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
