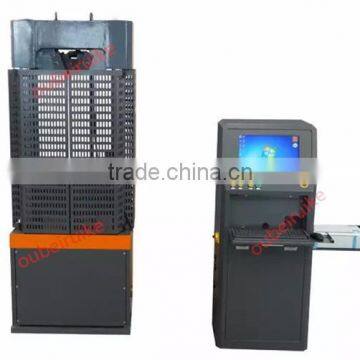

WSJ Series Hydraulic Universal Tensile Testing Machine For Rebar
WSJ Series Hydraulic Universal Tensile Testing Machine For Rebar
Characteristic:Double screws,Security fence
Technical Parameters:
| Product Name | WSJ Series Hydraulic Universal Tensile Testing Machine For Rebar | ||||
| Model | WSJ-100D | WSJ-300D | WSJ-600D | WSJ-1000D | WSJ-1000D |
| Max. test pressure(KN) | 100 | 300 | 600 | 1000 | 2000 |
| Accuracy | extra fine grade | extra fine grade | extra fine grade | extra fine grade | extra fine grade |
| Stretch chuck maximum distance | 600mm | 650mm | 700mm | 700mm | 750mm |
| Sample clamping thickness | 0-15mm | 0-15mm | 0-30mm | 0-40mm | 15-50mm |
| Sample clamping Diameter | 6-22mm | 10-32mm | 13-40mm | 10-50mm | 20-60mm |
| Pressing plate the maximum distance | 30-300mm | 30-300mm | 30-300mm | 30-300mm | 50-300mm |
| Piston work stroke | 150mm | 150mm | 200mm | 200mm | 200mm |
| Oil Pump Power | 0.75KW | 0.75KW | 1.5KW | 1.5KW | 1.5KW |
| Measuring range | 0-100KN | 0-300KN | 0-600KN | 0-1000KN | 0-2000KN |
| Weight | 2.2T | 2.6T | 3.2T | 3.6T | 6.5T |
>>> Contact Us
We also produce others type of Compression Testing Machine:
1. Installation and training:
a. If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service:
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Frequently Asked Question:
1.Are you trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of concrete mould and others products.
2. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than ten years without any problem. We can provide one years free quality assurance.
3. How to visit your company?
A) Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
B) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick you up.
Oubeiruike supply verious type of products,Test Molds, Concrete Mixer,Asphalt Tester,and Soil Road Lab Tester .... We assure high quality to you.
We can deliver by sea at any port in china, and Also can ship by air via express company (door to door),it is quick and safe.
We be 24 hours online,if you have any questions,kindly contact us freely.
