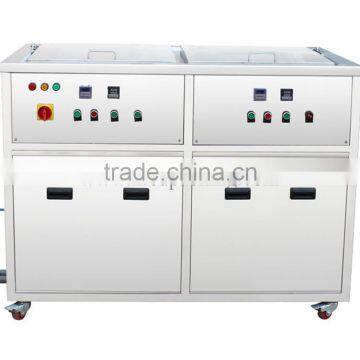

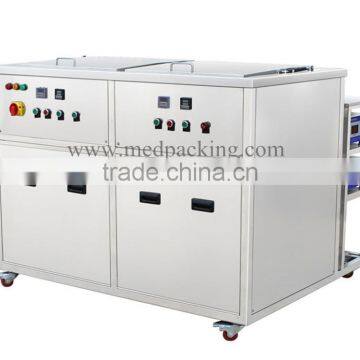

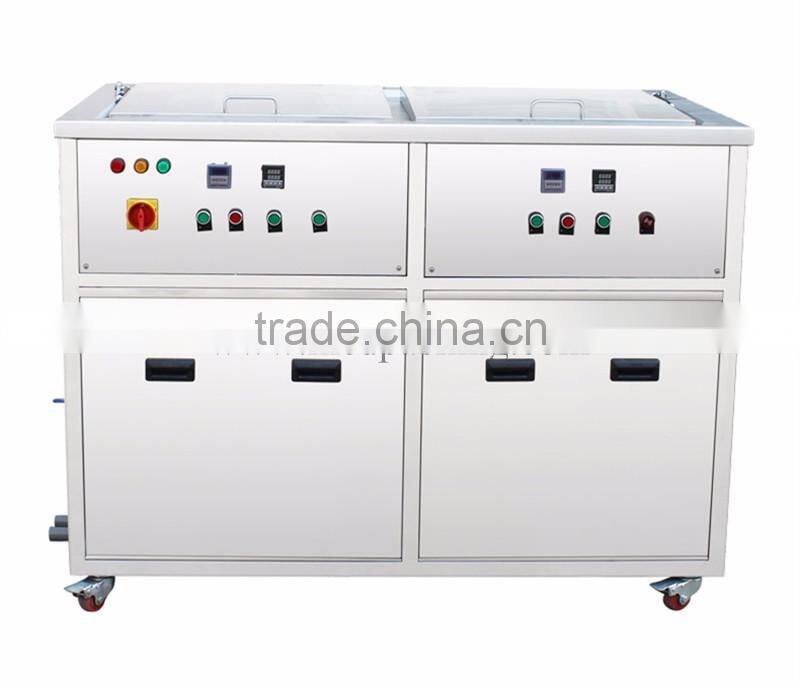

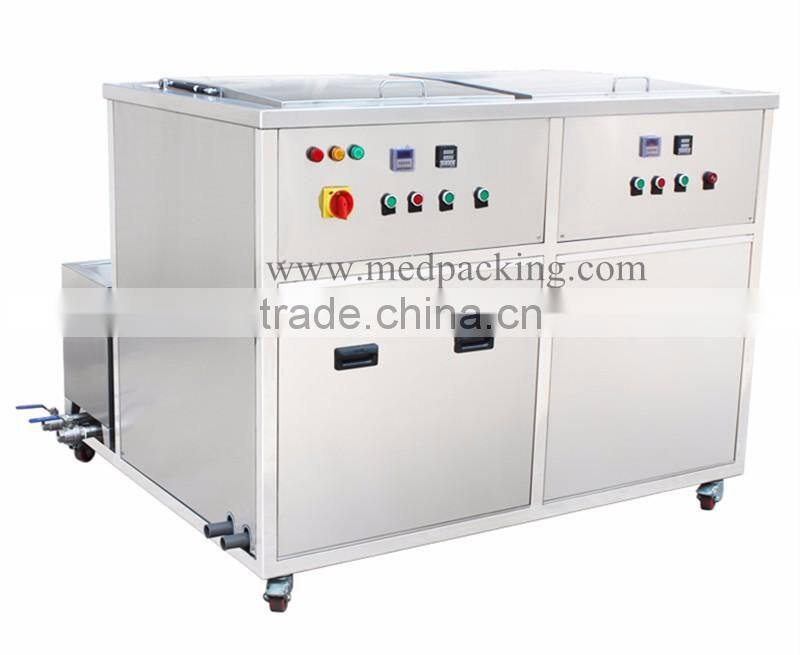

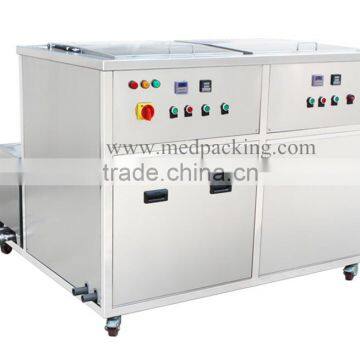

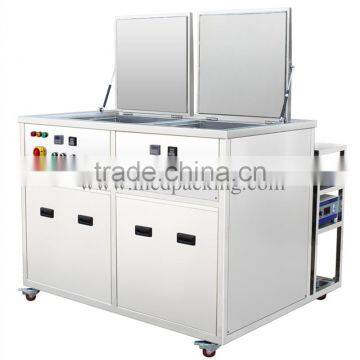

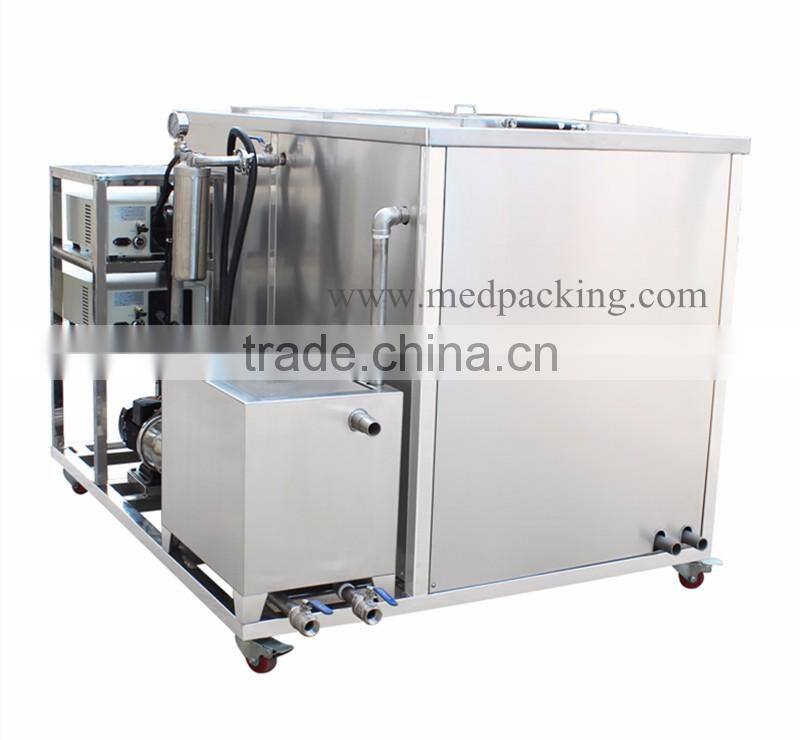

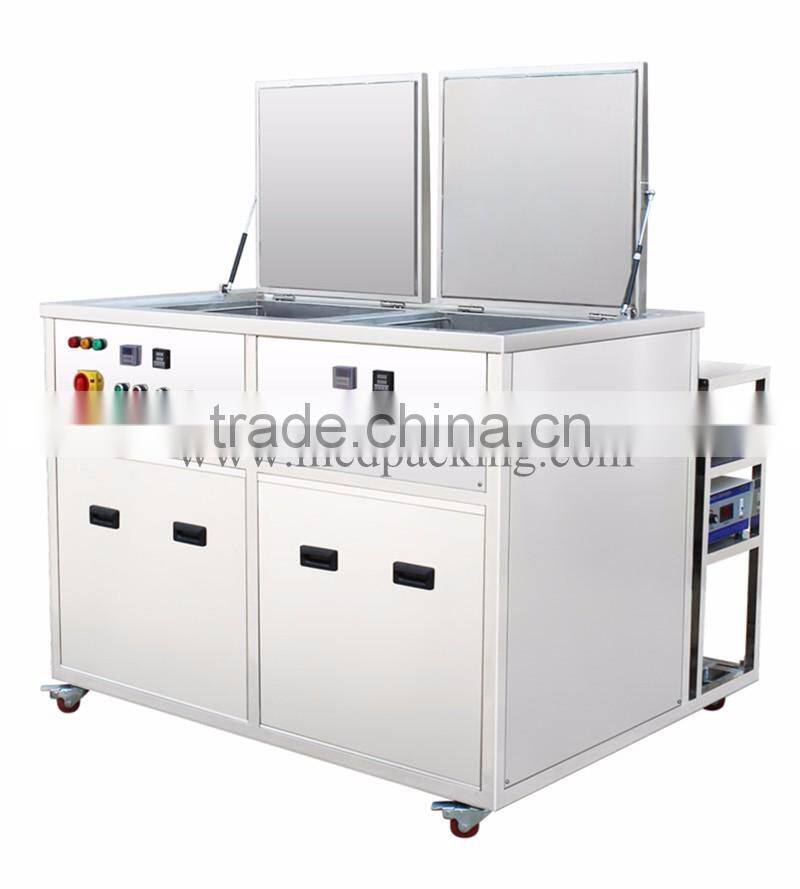

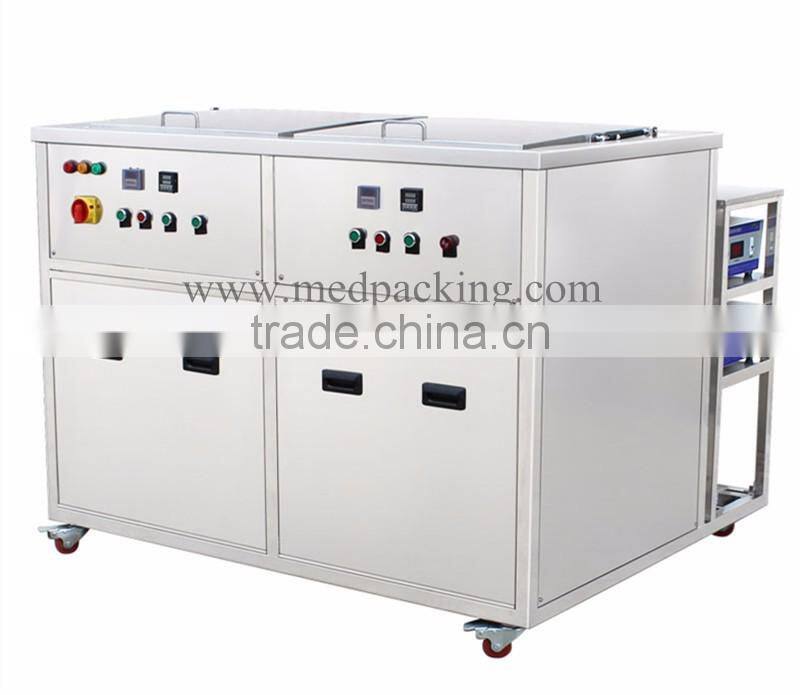

JP-2072GH Supersonic cleaner 360L Double groove filtering circulation drying industrial ultrasonic cleaning machine

Name:JP-2072GH Supersonic cleaner 360L  Double groove filtering circulation drying industrial ultrasonic cleaning machine

Product Specifications:

Model: JP-2072GH

Liner Material: Stainless steel (SUS304  2.0)

Shell Material: Stainless steel (SUS304  1.0)

Capacity: 360L

Power: AC380V(3 phase), 50 / 60Hz

Liner Size: 1000 * 600 * 600MM (L * W * H)

Cleaning tank:

Ultrasonic frequency: 40000Hz

Ultrasonic power: 3600W

Heating power: 9000W

Time control: Digital display adjustable

Filtration cycle: Yes

Drying tank:

Drying methods: blast drying

Drying power: 4.5KW

Drying time: digital display adjustable

Drying temperature: digital display adjustable

Dry the alarm: Yes

Product Features:

1. Double groove design: ultrasonic cleaning, filtering cycle function, drying function.

2. The tank adopt international 304 stainless steel material, thickness to 2 mm, pure manual argon welding, sturdy and durable resistance to high temperature.

3. With the function of filtration cycle, recycling the solvent, cost savings, cleaning effect is good.

4. Set the 1-99 hours is adjustable, can work continuously for a long time continuous digital control time, intuitive precision.

5. Independent generator control system, the flexible control precision, can wash objects according to the customer's different heavy wash adjust the ultrasonic power.

6. South Korea imported standard 50 w industrial-grade shake head, concentrated efforts, cleaning effect is remarkable.

7. With the function of memory, memory chips, unique belt machine without resetting after time setting.

8. The automatic constant temperature heating system cleaning trough, 20-80 degrees adjustable, 1500 w a cast aluminum heating board installation, heating speed to save cleaning time.

9. Drying tank drying time and temperature can be set freely, baking finish alert notifications.

10. The industrial utilization standard bold the power cord, heat-resistant thermal softening, use safety protection.

11. A standard industrial design, can bearing 300 kg washing objects.

12. The machine configuration: machine belt generator control box, stainless steel cleaning basket, drain valve, the silencing cover, the power cord, casters, etc.

Application scope:

This product is applicable to machinery, surface treatment, instruments and meters, electronics, medical, semiconductor, watches and clocks jewelry, chemical, biological, optical, textile printing and dyeing, oil, chemical industry, etc.
