Digital Liquid Filling Machine GFK-160
Ask for the manual and operation video when needed!!!!
♦ Introduction ♦
GFK series numerical control liquid filling machine uses micro-computer to control the minipump on filling time and the rotation rate of electric motorso tthat the machine can fill the liquid fluently and at high accuracy.
It is widely used in medical,chemistry,food,bervage,oil and cosmetics,etc.
It is suitable for filling low-viscous liquid without pellets.
Separated with the electric motor,the pump is made of a variety of anti-corrosion imported material.
There is no mechanical metal part or abrasion inside the pump.
The pump can stand oil,heat,acid,alkali,abrasion and chemical products.
This pump integrates the advantage of self-suck pump and chemical pump.
It can self suck,heat protect, stable working and continuous idle or load operate for long time.
About other functions,please consult the factory.
The manufacturer will not be responsible for any damage due to improper operation.
This kind of risk should be taken by the users.
Strictly abiding by the manual book is a part of operation requirement.
♦ Characteristics ♦
1.Imported single-chip control,high efficiency,low power consumption
2.Automatic counting,control the filling quantity effectively.
3.LCD display,touch screen panel is easy to operate.
4.Filling Accuracy is high,precise volume.
5.Wide voltage use range.
6.Product working performance is stable,long use life.
7.Self-suck function,don't need to pour.
8.Pump can stand the acid and alkali.
9.Anti-dripping design
10.Reasonable construction design,stanless steel shelf,meed GMP requirement.
♦ Technical Parameter ♦
Voltage | AC 180V-260V,110V can be customized |
Power | 30W |
Filling Range | 2ml-3500ml |
Max Flow Rate | 3.2L/min |
Package Size | 400X380X200 (mm) |
Volume Weight | 8.5kg |
Max Suck Distance | 2m |
Repeat Error | <0.5% |
Anti-dripping Function | Available |
Memory Function without Electricity | Available |
♦ Packing List ♦
1.Power Cord 1pcs | 6.Screwdriver 1pcs |
2.Pedal Switch 1pcs | 7.Inner hexagonal wrench 1pcs |
3.Filling Stand 1pcs | 8.Manual Book 1pcs |
4.Filter 1pcs | 9.Guarantee Receipt 1pcs |
5.Filling Nozzle 1pcs | 10.Quality Certificate 1pcs |
♦Pictures♦

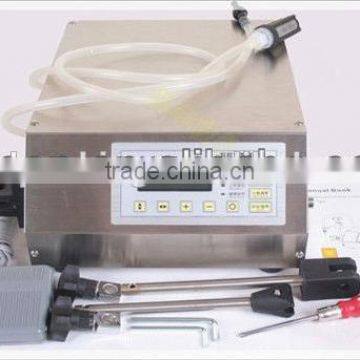

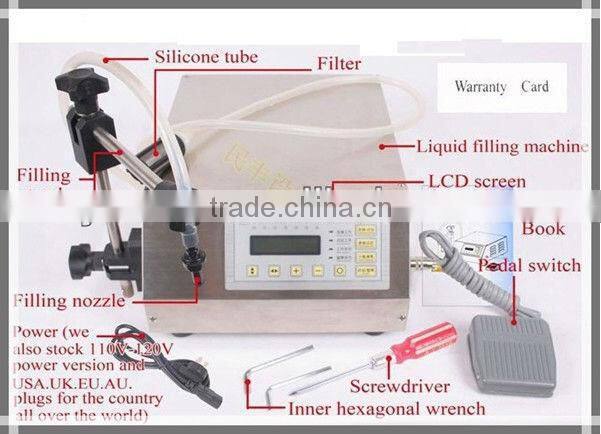

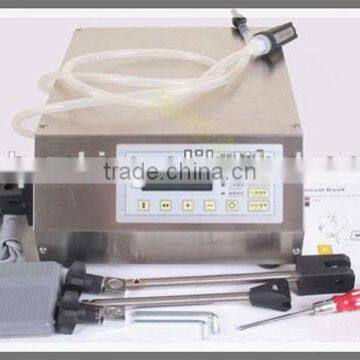

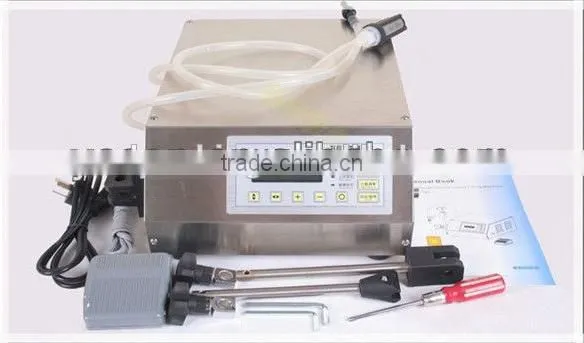

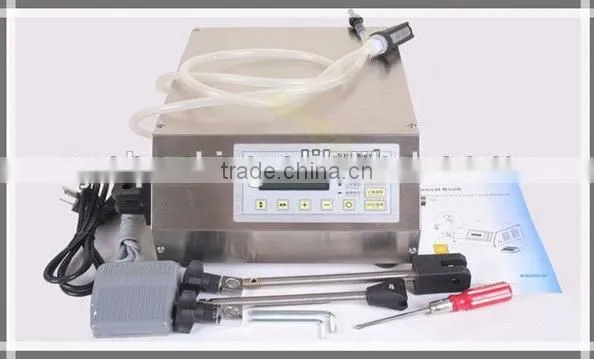

1.All the things:

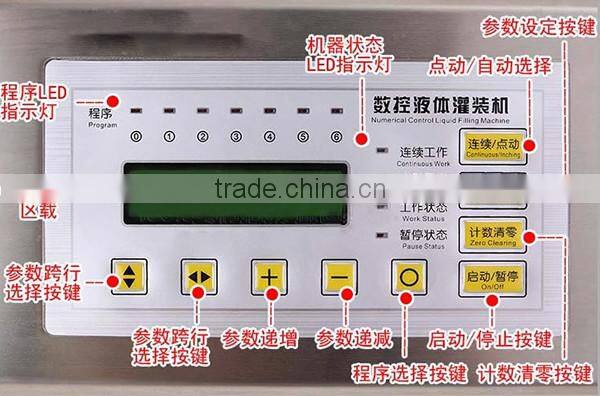

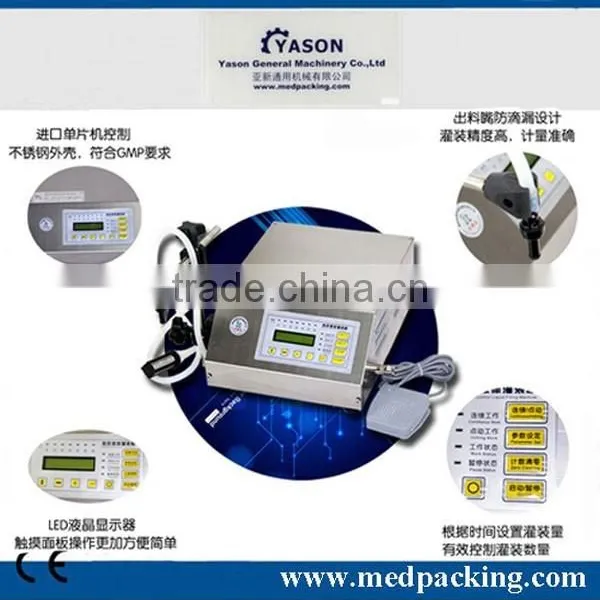

2.Operation Panel:

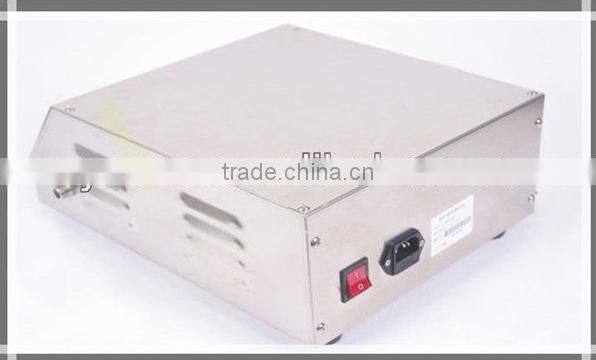

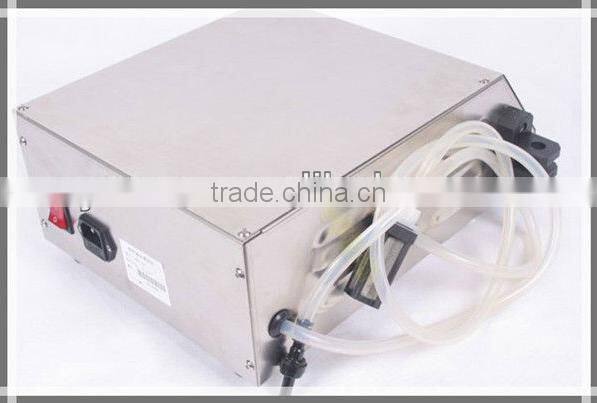

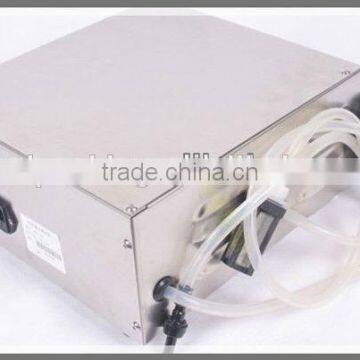

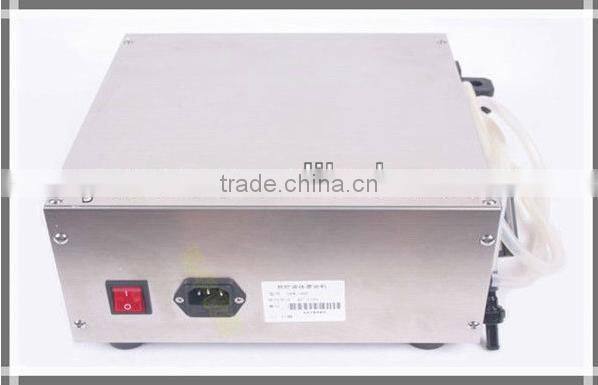

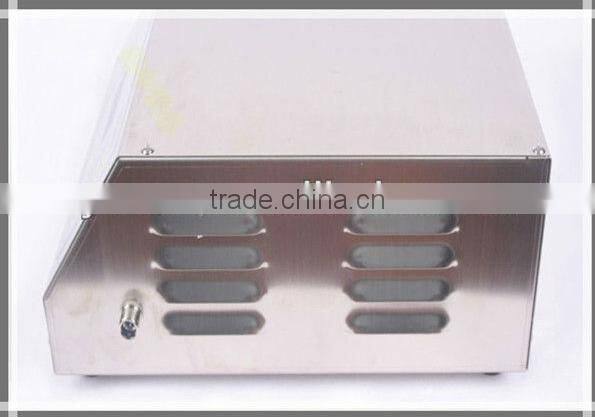

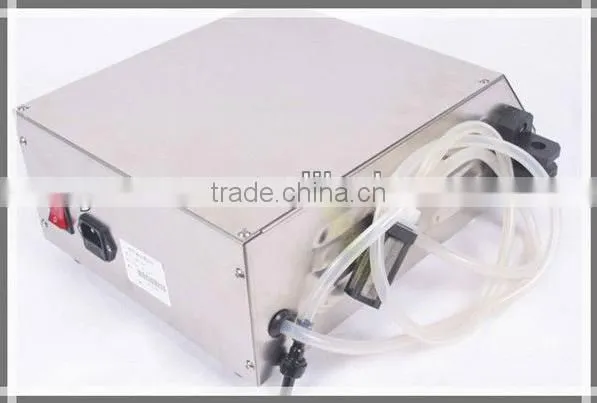

3.Side View
4. Suitable for Different Kinds Of Liquid

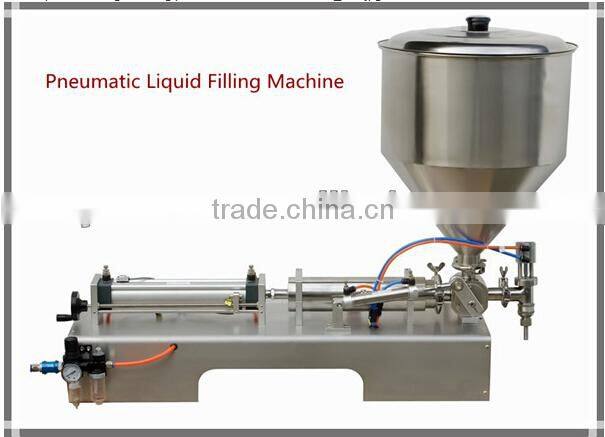

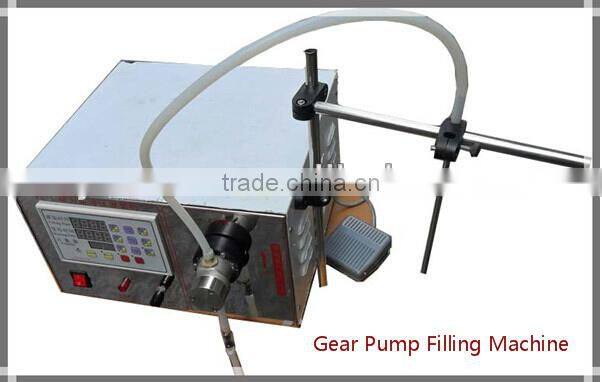

Recommended Liquid Filling Machine
♦ Tracking Number ♦
Tracking number will be informed within 2-3 work days after delivery goods.
If you have any problem with it, please leave a message to us.
♦Feedback♦
Any comments, suggestions are accepted.
We will be very grateful to your positive footprints left in our company.
If you have any problem with our products, please leave a message to us.
♦Refund♦
Any damage or shortage of our goods when you receive your items.
Please take some photos for a witness. We will deal with it in 24 hours. Frequently,
we will send a new part of items for alternative and heavy-damage, Before refund is accepted, please leave a message to us.
♦ FAQ ♦
1.What I should do to choose the best machine for us?
Answer:1)Tell me the material you want to fill,we'll choose the
suitable type machine for your reference.
2)After choose the suitable type of machine,then tell me
the filling capacity you need for the machine.
3)At last tell me the inner diameter of your container to
help us choose the best diameter of the filling head for you.
2.If there's some spare parts broke,how to solve the problem?
Answer:First of all,please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides,we'll send you the spare parts for free
but the back shipping cost should be paid by your side.
3.How many filling heads are included in the machine?
Answer:Single Head,Double Heads.
♦ About Us ♦
1. 30 years of experience of producing filling machines, induction sealing machines and other packing machines.
2. 10 Professional engineers plus 50 workers.
3. Provide high quality products of low prices plus sincere after-sale service.
4. Provide spare parts for free and 1 year warranty.
