High Quality Autoclave Reactor for Blocks in AAC Production Line

the equipment can be delivered as a whole or can be cutted into several parts

  High Quality Autoclave Reactor for Blocks in AAC Production Line

Application:

The kettle is a large pressure vessel for aerated coagu-flocculation kish, suggested brick, coal ash brick for steam, It not only can finish Cao Si02 -- -- the water H2O flavoring substances. but also widely used in other pressure steam to raise production process production projects. Such as:high-strength gypsum, insulation materials, rubber products, high strength glass and cement pile and wood, pharmaceutical, chemical and other industries. Our company can design and manufacture various forms of pressure kettle according to user requirements, in order to meet the needs of users for multiple purposes.

Features:

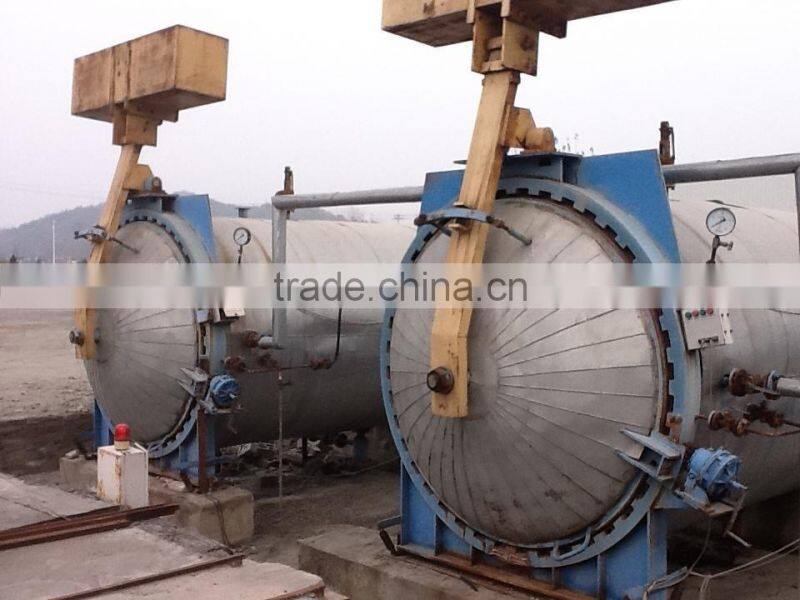

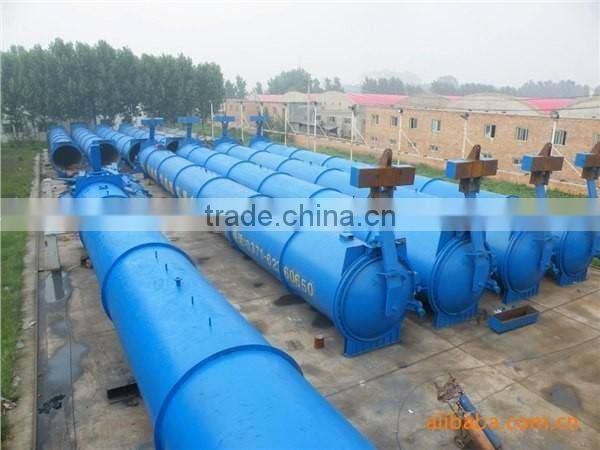

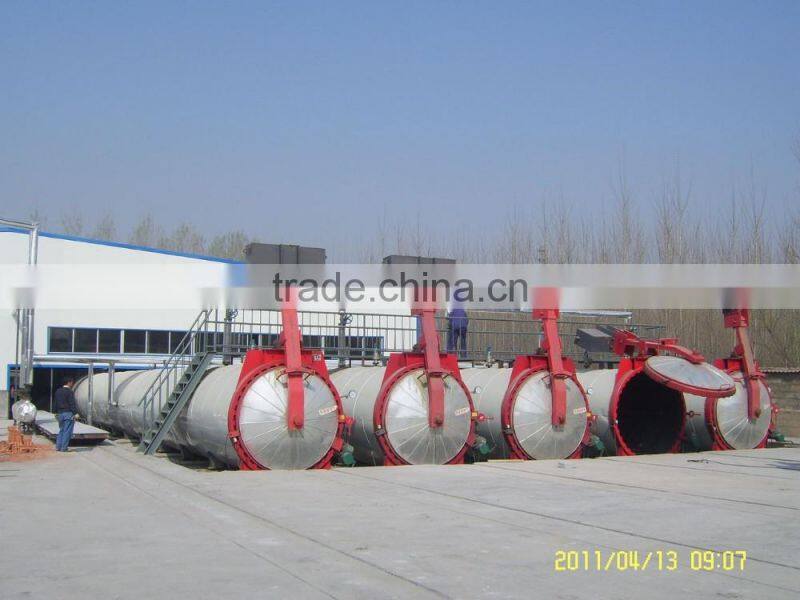

The kettle is the device of steel horizontal cylinder, kettle cover adopt the whole block 16MnR steel suppression and into. Axe cover flanges, kettle body 16Mn overall forging flanges using and processed. Pressure parts weld seams are according to related standards on heat treatment and strict nondestructive testing.

Axe door is open for activities by hand reducer, structure for opening and closing, also can be based on user use electrical, pneumatic, hydraulic hoist. Equipped with perfect safe interlock protection device, utmost to avoid the incorrect operation risk, ensure the autoclaved autoclave safe operation and operation personnel of safety for production. Axe the opens type have side start-up and shut-down open two types for the user choice. Lateral open-die adopts rotating arm type door structure. Flexible rotation, low operation, simple and convenient; open The door open using lever lever bottom and agencies, connect, the top equipped with door cauldron counterweight device, this type of open deft, kettle side take up the space is small.

Axe door seal uses professional manufacturers of imported rubber sealing ring, easy installation, good sealing, long service life.

Axe body bearing aimed at different position, Settings are fixed supprort, activities bearing, special bearings at the end of the three forms. Better meet the kettle body heat bilges cold shrink, guarantee the autoclaved autoclave normal work and service life.

Application:

Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.
