Specifications
1.Original manufacturer2.High quality and best service
3.A long history with 14 years experience
4.At a reasonable price

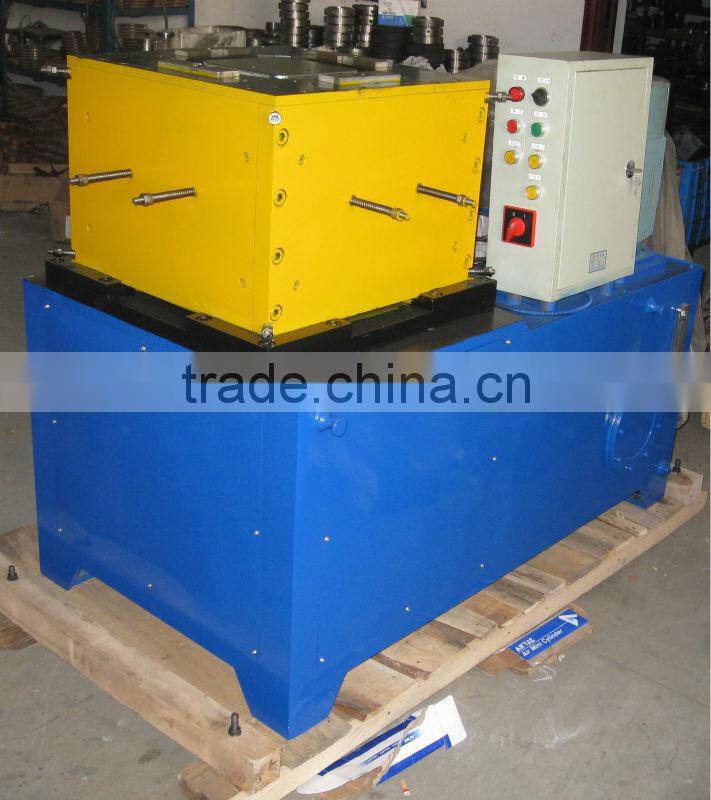

18L square can making machine automatic paint can body forming machine
Model: GTFY-18
Usage: It is mainly used in the one-off forming of the 5 Gallon square contanier body.It is easy to stably operate,and with high precision processing equipment, raising mechanical precision and guaranteeing stable integrated operation.
Feautures:
1.This machine is combined with process of expanding the container into square,angel tendon pressing and cover panelings,The can body is stretched at the same time,which can ensure the body not be contorted,deformed or rebound,and save energy source.
2. This machine has automatic lifter, could reduce the diffculty of picking up cans.
The main technical parameters:
Model |
GTFY-18 |
Capacity |
10-15cans/min |
Maximum Oil Pressure |
12Mpa |
Motor power |
7.5kw |
Overall Weight |
900kgs |
Outline Size |
1400*720*1200mm |
Scope Of Application |
Big square containers of 9-20L(need change mould) |
Adaptive Material Thickness |
0.2-0.4mm |
Working Air Pressure |
0.3Mpa |
Volume Of Oil Tank |
130L |
Applied Electric Source |
AC380V50HZ |

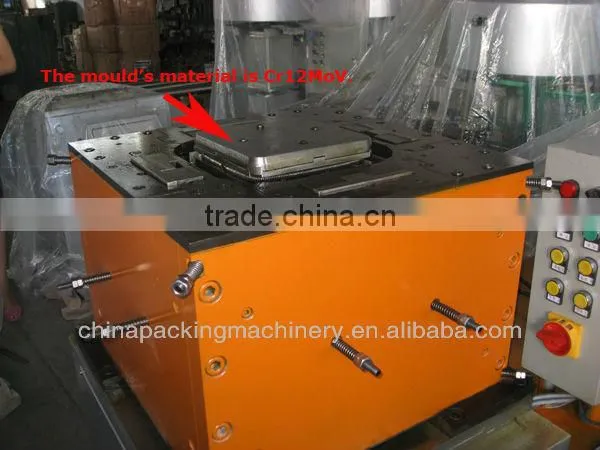

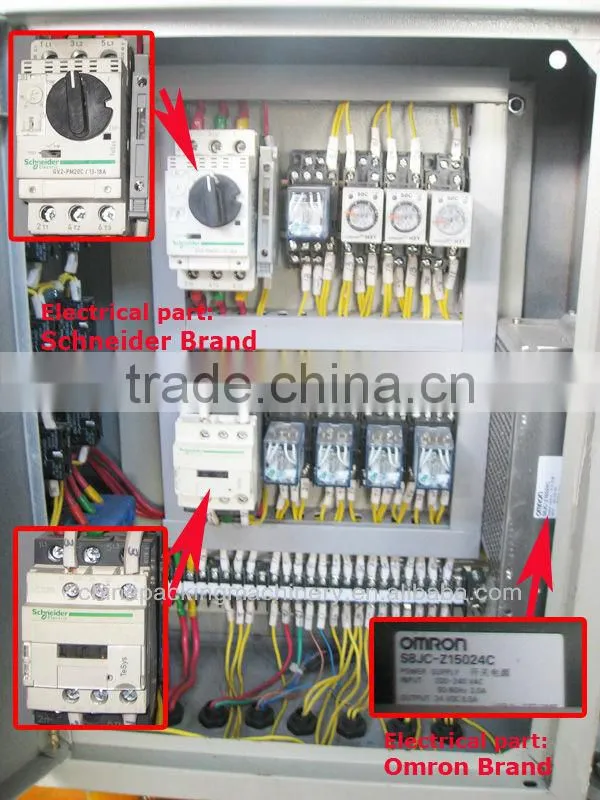

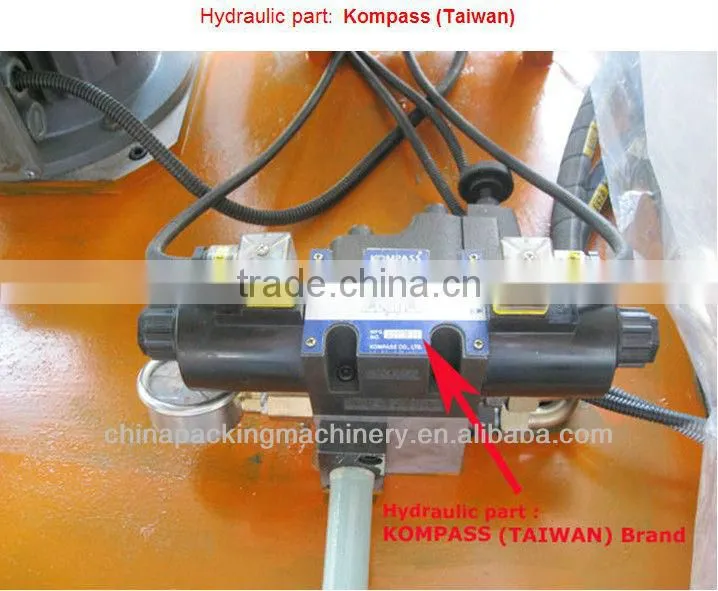

More details for this machine:

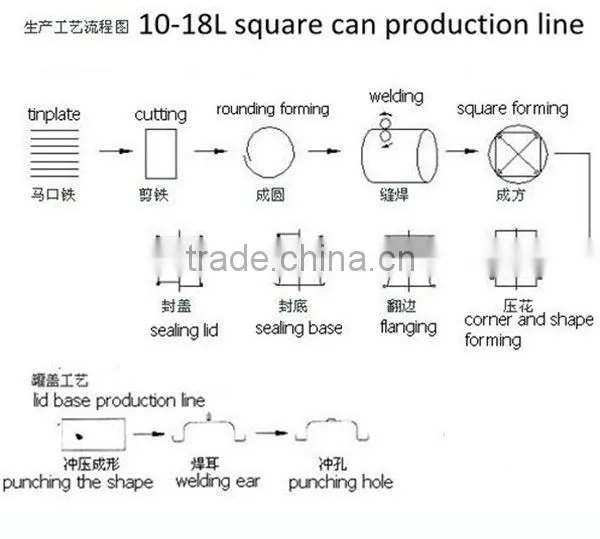

Flow chart:

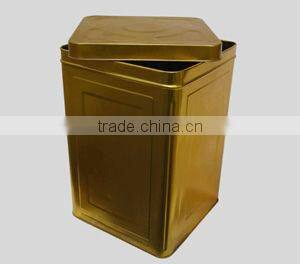

Sample can:
JIUJIANG EXCELLENT PACKAGING MACHINERY CO., LTD
Our company was located inJiujiang City, Jiangxi Province where nearby Changjiang River and under the foot of Mt.Lu, with the convenient transportation.
Our company is specialized in cans making machines’ producing and sale.
Our leading products include production line equipments for narrow-neck cans, 1-20L round and square cans, 5-25L pail cans, and other different kinds of special purpose cans, such as alcohol cans and biscuit cans.
Our products has been exported to many countries, such as Kuwait, Dubai, Indonesia, Vietnam, Palestine, Cameroon, Chile, England, Russia, America, Greece, Japan and so on.
Customer first is the business principle of our factory. Being quality-centred is our eternal pursuit.
Welcome to visit our factory!
