Price of Automatic Paint Tin Can Machine

FOB Price

US$ 75,000 - 90,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Food, Chemical
Packaging Type	Case	Packaging Material	Wood
Automatic Grade	Automatic	Driven Type	Electric
Voltage	380V	Power	6kw
Place of Origin	Jiangxi, China	Brand Name	ZY
Model Number	GT-3B60-NFS	Weight	6500kg
Dimension(LWH)	130020001800mm	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Paint tin can machine
Automatic can machine supplier
High quality Endurance
On time delivery
Can making line

Paint tin can machine

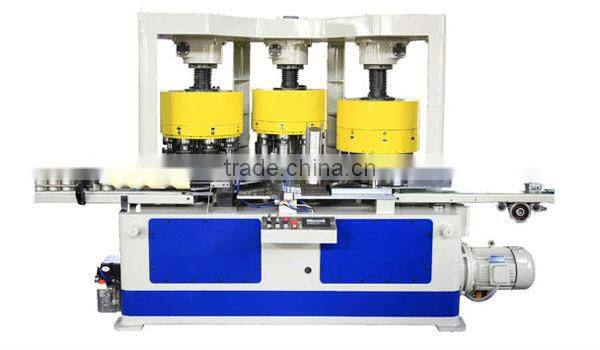

3-Functions Combination Machine For Food and Beverage Can Making Machine

Usage: It's used for necking, flanging & sealing of the cans D52mm-99mm making.

Main Technical Parameters:

Model	GT-3B56-NFS
Capacity	100 - 250cans/min 250 400cans/min
Range of Can Diameter	52mm - 99mm
Range of Can Height	50mm - 180mm
Power	5.5KW
Weight	6500kg
Dimensions	*130020001800mm*

Machine Picture:

Sample cans the machine can make:

Machines For Production Line

1. Automatic duplex slitter

Model:	GT-10A
Capacity:	X:12-60time/min Y: 2-7piece/min
Max. Sheet Thickness:	0.5mm
Max. Sheet Width:	1050mm
Min. Sheet Width:	0.4mm
Motor Power:	6kw
Dimension:	1500x1600x1105mm
Weight:	5000kg

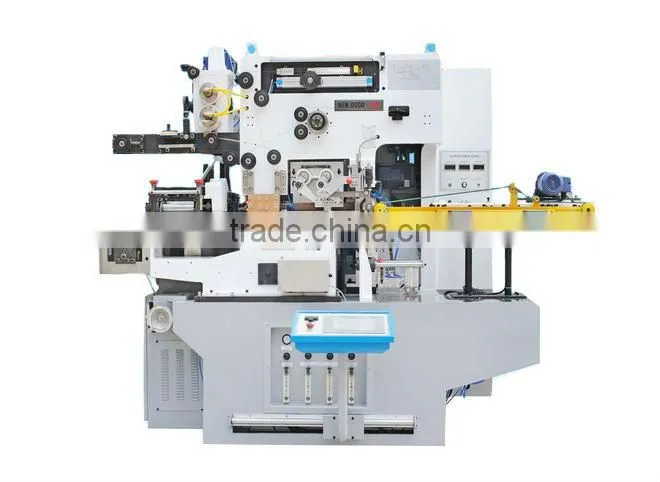

2.Automatic Rolling and Automatic Seam Welding Machine

Model	GT-QL-2612-QM
Welding Speed	9-28m/min
Production Capacity	150 cans/min
Range of Can Diameter	65mm - 155mm
Range of Can Height	50mm - 265mm
Applicable Materials	Tinplate, Ni plate
Applicable Materials Thickness	0.16 - 0.36mm
Overlap	0.4mm
Welding Point Distance	0.5-0.9mm
Applicable Copper Wire Diameter	1.38mm 1.5mm
Cooling Water	392-490kpa, 12-18°C, 20L/min
Power	380V, 50Hz, 22KW
Weight	2200kg
Dimensions	198020202060mm

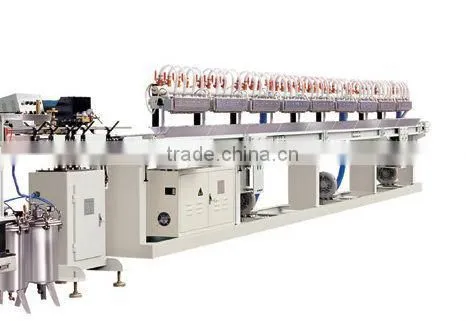

3. Automatic Coating and Drying Machine

Model:	GT200U
Coating capacity:	6-30m/min
Coating manner:	by rotating wheel(automatic glue-feeding)
Coating width:	10-14mm
Size of internal and external coating:	2100x650x1300mm
Size of internal and external coating:	2100x650x1300mm
Drying capability:	6-30m/min
Drying manner:	Drying by electric heating
Size of drier:	9600x680x1460mm
Power:	10kw

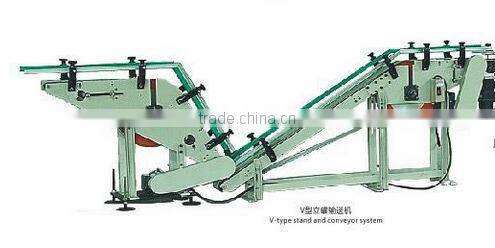

4.V-Type Stand and Conveyor System

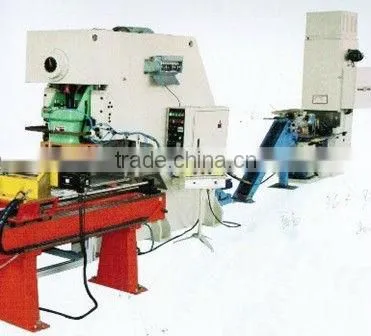

5. Automatic Feeding System and Punch Machine

Feed width:	Max 1000mm
Feed length:	Related with punch throat depth
Compressed air:	40L/min
Capacity:	max 120times per minute

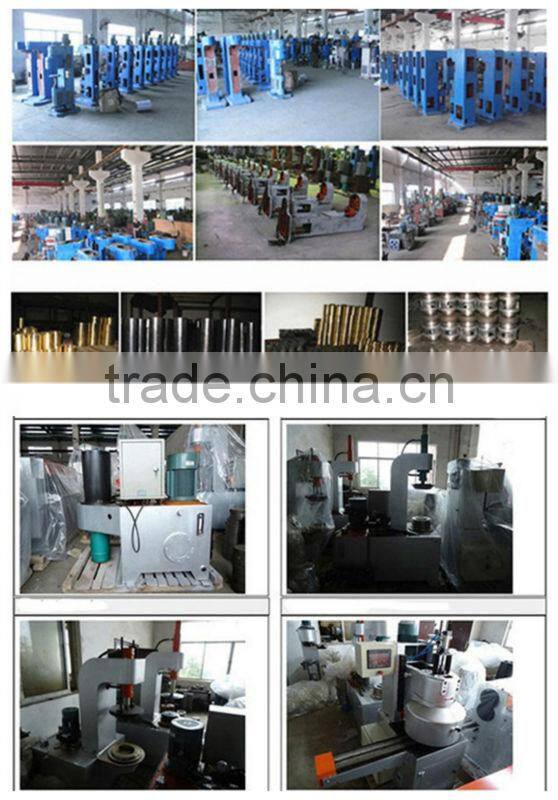

Our factory

Jiujiang Excellent Packaging Machinery Co., Ltd. is located in Jiujiang City in Jiangxi Province and is specialized in manufacturing various tin can making machine,soap making machine,automatic tin can producton line and semi-automatic tin can production line.

With an experienced and professional team, we have exported our products to many countries and regions all over the world. Our products enjoy a good reputation among our customers.

We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
