Specification for Automatic Duplex Slitter Machine for 1-5L Chemical Can Production Line
Application & Main Features:
The machine is an essential equipment for can-making production lines in tinplate printing and can-making industry, composed of auto feeder machine, vertical/horizontal cutting mainframes, front/back workbenches, electrical control box, vacuum system, accessory of charging stand, processed piece collecting gadget operated by the pressed air, and knife grinder, etc. It is provided with auto feeding, auto fulfillment of vertical/horizontal cutting, dual-tensioning detection, auto counting, and other functions. Easy adjustment, operation and maintenance, safety and reliability. It's able to meet the high-precision cutting requirements for canner plates of various tinned plates with high production efficiency. The machine is applicable to cutting of small canner plates for cans of foodstuff.
Main Technical Parameters:
| Model | GT10A6 |
| Feeding Speed of Feeder Machine | 0~32 piece/min (Frequency control of motor speed) |
| Iron Cutting Speed (Speed of Feeding Chain) | 0~59 m/min |
| Application Range of Cutting Iron Sheet | 600~1150 600~1250 mm |
| Thickness of Cutting Iron Sheet | 0.15~0.5 mm |
| Min Width of Cut Iron Sheet | 1~6 piece |
| Min Width of Horizontally Cut Iron Sheet | 48mm (If it is less than 48, tool apron needs to be replaced) |
| Total Unit Power | 5.45KW |
| Weight of Machine | 6700kg |
| Dimensions | 6650×3880×1530mm |

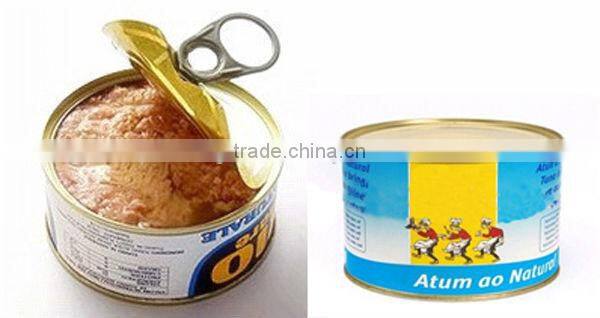

You can make different tin cans by our machines. Such as:
Our factory
JIUJIANG EXCELLENT PACKAGING MACHINERY CO., LTD
Our company was located inJiujiang City, Jiangxi Province where nearby Changjiang River and under the foot of Mt.Lu, with the convenient transportation.
Our company is specialized in cans making machines’ producing and sale.
Our leading products include production line equipments for narrow-neck cans, 1-20L round and square cans, 5-25L pail cans, and other different kinds of special purpose cans, such as alcohol cans and biscuit cans.
Our products has been exported to many countries, such as Kuwait, Dubai, Indonesia, Vietnam, Palestine, Cameroon, Chile, England, Russia, America, Greece, Japan and so on.
Customer first is the business principle of our factory. Being quality-centred is our eternal pursuit.
