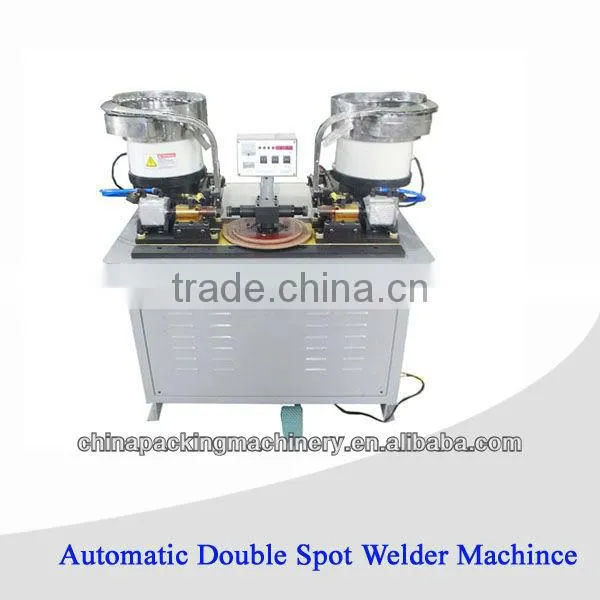

Dual-ram Pneunatic Automatic Double Head Ear Welder Machine

Specifications

 High Quality Automatic Earlug  Welding Machine

Model: DN60Z

Usage: This machine is used for welding the ears of the pail can with automatic ears feeding system. It is more safe and convienent then semi automatic earlug welding machine.

Features:

1. Welding currents is controlled by digital circuit microcomputer, frequency adjustment, high precision, good consistency.

2. Current have ramp snd downslope function.

3. World famous brand electrical components: AIRTAC, SEMIKRON, MITSUBISHI, BONNER.

Dual-Ram series: Specially designed for welding can ear on can body.

1. Both can ear welded simultaneously can keep good symmetry.

2. Automatic paint-scraping device, no requirement of spae preservation at double-side paint on can body.

3. Automatic weld can ear, save manpower, safe and fast.

4. Small round tank can shrouding before welding handle ear.

The main technical parameters:

Other types of earlug welding machine:

1. Double Spot Welder:

DN-60B Semi-Automatic Double Spot Welding Machine	It is used for welding round or pail can ear on can body
	Capacity: 20 cans/min.
	Thickness:≤0.2-0.5mm
	Compressed air: 900/min 0.6Mpa
	Traveling schedule:50mm
	Can Diameter: 150-300 mm
	Welding materials: steel, tin-plated sheets
	Power:2N380/50HZ 60KVA
	Net weight: 350kg
	Dimension: 1050*800*1000mm
	Electrical components:	AIRTAC, SEMIKRON, MITSUBISHI, BONNER

 2. Single-head Spot Welder

DN40B Semi-Automatic Single Spot Welder Machine	It is used for welding small can hand on can lid
	Capacity: 15 cans/min.
	Electrode stroke:75mm
	Compressed air:500L/min 0.6Mpa
	Traveling schedule:50mm
	Welding materials: thin-galvanized sheets, steel                                    tin-plated sheets
	Net weight: 300kg
	Dimension: 550*850*1350mm
	Electrical components:AIRTAC, SEMIKRON

Flow chart:

JIUJIANG EXCELLENT PACKAGING MACHINERY CO., LTD

    Our company was located inJiujiang City, Jiangxi Province where nearby Changjiang River and under the foot of Mt.Lu, with the convenient transportation.

     Our company is specialized in cans making machines’ producing and sale.

     Our leading products include production line equipments for narrow-neck cans, 1-20L round and square cans, 5-25L pail cans, and other different kinds of special purpose cans, such as alcohol cans and biscuit cans.

     Our products has been exported to many countries, such as Kuwait, Dubai, Indonesia, Vietnam, Palestine, Cameroon, Chile, England, Russia, America, Greece, Japan and so on.

Customer first is the business principle of our factory. Being quality-centred is our eternal pursuit.

Welcome to visit our factory!
