semi-automatic rectangular oil can making equipment line
semi-automatic rectangular oil can making equipment line
Sample cans:
production process:

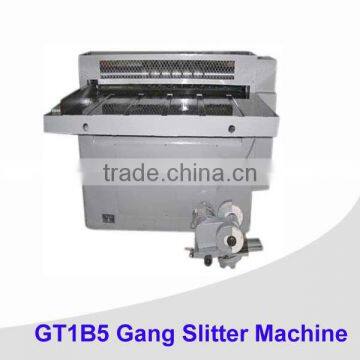

1. cutting machine:
This machine is used for cutting tin sheet into small pieces
The main technical parameters of cutting machine :
Model |
GT1B5 |
Max sheet width |
1050mm |
Min sheet width |
44mm |
Power |
1.1kw |
Weight |
1400kg |
Dimension |
1500*1600*1105mm |
2. roll forming machine:
the main technical parameters of roll forming machine:
Model |
ZDJY120-320 ZDJY120-280 |
Production capacity |
30-120cans/min |
Applicable can diameter |
Φ50~Φ180mm |
Applicable can height |
70-320mm 70-280mm |
Applicable material |
tinplate steel-based |
Applicable material thickness |
0.15~0.35mm |
Applicable material hardness |
T2.5-DR8 |
Compress air consumption |
600L/min |
Pressure of compress air |
0.5Mpa~0.7Mpa |
Power |
380V,50HZ,1kw |
Dimensions |
700*1100*1200mm 650*1100*1200mm |
Weight |
350kg 340kg |

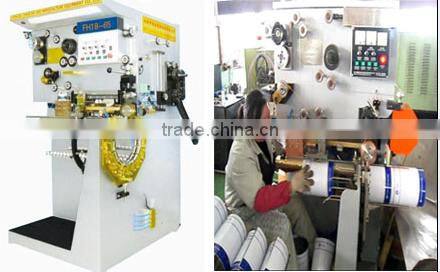

3. seam welding machine:
the main technical parameters of technical parameters:
| model | FH 18-65 |
| linear rate of welding | 6-18 m/ min |
| production capability | 20-80cans/min |
| applicable can diameter | 65-176mm |
| applicable can height | 70-180mm |
| applicable material | tinplate and steel-based sheet metal |
| applicable thickness | 0.18-0.32mm |
| applicable copper wire diameter | 1.38-1.5mm |
| cooling water | less than 20 °C |
| pressure | 0.4Mpa |
| dimesion | 1300*1100*1800mm |
| weight | 1800kg |
| power | 18KVA |

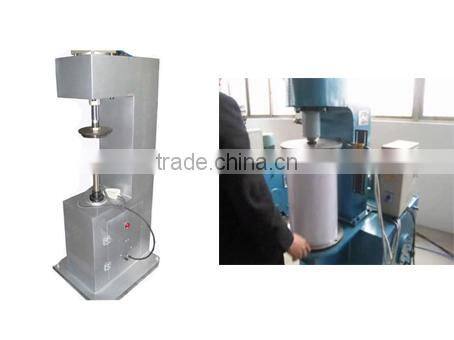

4. flanging machine:
The main parameters of flanging machine:
model |
QYA180F |
diameter |
52-180mm |
height |
50-200mm |
thickness |
0.18-0.25mm |
capacity |
15 cans/min |
net weight |
100kgs |
dimension |
400*500*1380mm |

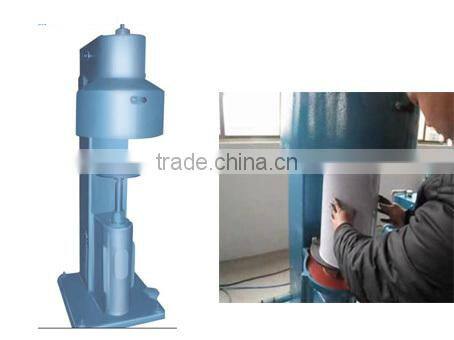

5. sealing machine:
the main parameters of sealing machine:
Capacity |
20-30cans/min |
Diameter |
50-300mm |
Height |
50-400mm |
Tinplate Thickness |
≤0.4mm |
Air pressure |
0.3-0.7Mpa |
Motor type |
Y100L-4 |
1. Visit customers regularly
2. engeers available to service machinery overseas

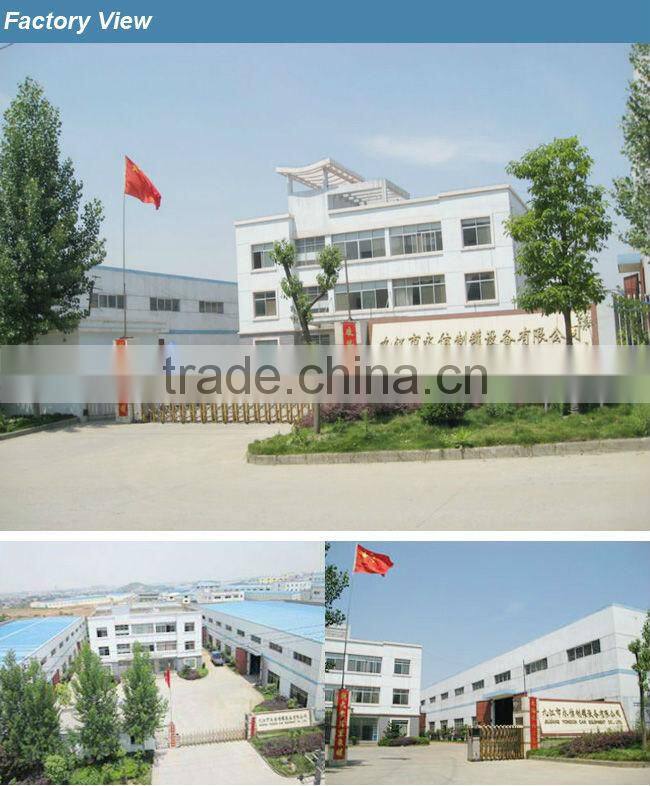

Jiujiang Yongxin Can Equipment Co.,LTD. Located nearby Yangtze Rive and Foot of Mountain Lu.at Jiangxi province with a convenient transportation.
Our company is specialized in can making machines’ producing and sales.With a mature technical knowledge and powerful capacity of designing new product .Our company has developed out the whole production lines of 0.2L - 25L round can , 1L - 18L square can ,5-25L pail can,necked round can and also soap making machine,capacitor /oil filter seamer machine.we have the production line of different kinds of fancy/sweet lock can.
welcome to visit us
