Automatic aerosol tinplate can seam welding machine
Automatic aerosol tinplate can seam welding machine
Usage: This machine is used for welding aerosol cans chemical can,food can.
Can be matched with cna body internal and external lacquering and drying machine.
.
The main technical parameter:
| Model: | FH18-52ZD |
| Linear rate of welding: | 6-36m/min |
| Production capcacity: | 60-120cans/min |
| Applicable can diameter: | 52-105mm |
| Applicable can height: | 70-320mm |
| Applicable materical: | tinplate Ni palte |
| Applicable materical thickness: | 0.16-0.3mm |
| Applicable copper wire diameter: | 0.138-1.5m |
| Cooling water: | T:12-18°C P:0.4Mpa D:10L/min |
| Power: | 380v±5% 50HZ |
| Total power | 18KVA |
| Dimension: | 1750*1100*1800mm |
| Weight: | 1800kg |
Our major component suppliers:
1), PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.
2), Low voltage apparatus are produced by SCHNEIDER.
3), IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.
4), OMRON is our sensor supplier.
5, HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan

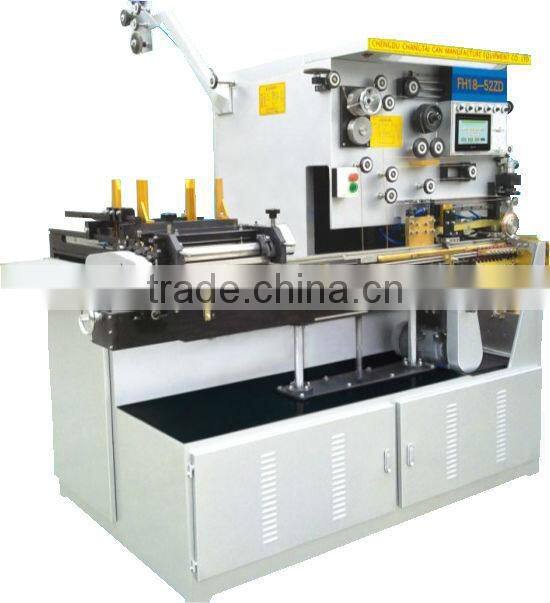

Machine Picture:
Flow chart:

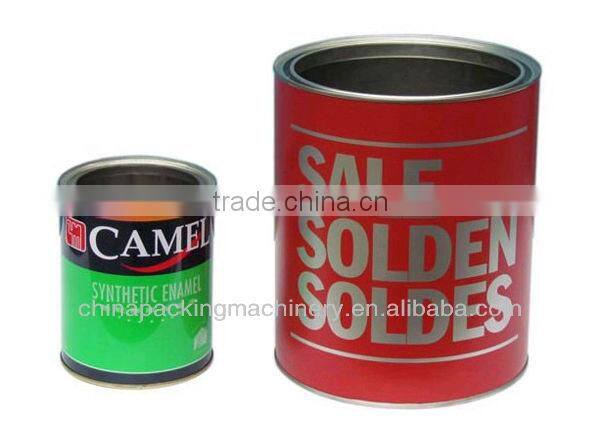

Sample Can:
Our factory:
Jiujiang Excellent Packaging Machinery Co., Ltd. is located in Jiujiang City in Jiangxi Province and is specialized in manufacturing various tin can making machine,soap making machine,automatic tin can producton line and semi-automatic tin can production line.
With an experienced and professional team, we have exported our products to many countries and regions all over the world. Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
