Name: Semi automatic Original tin can seam welder machine for small round can/chemical can packaging line
production process:

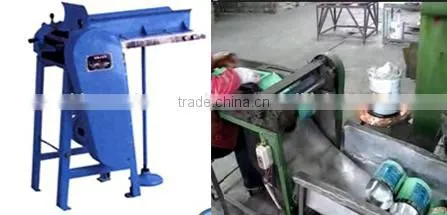

1. cutting machine:
This machine is used for cutting tin sheet into small pieces
The main technical parameters of cutting machine :
Model | GT1B5 |
Max sheet width | 1050mm |
Min sheet width | 44mm |
Power | 1.1kw |
Weight | 1400kg |
Dimension | 1500*1600*1105mm |
2. roll forming machine:
the main technical parameters of roll forming machine:
Model | ZDJY120-320 ZDJY120-280 |
Production capacity | 30-120cans/min |
Applicable can diameter | Φ50~Φ180mm |
Applicable can height | 70-320mm 70-280mm |
Applicable material | tinplate steel-based |
Applicable material thickness | 0.15~0.35mm |
Applicable material hardness | T2.5-DR8 |
Compress air consumption | 600L/min |
Pressure of compress air | 0.5Mpa~0.7Mpa |
Power | 380V,50HZ,1kw |
Dimensions | 700*1100*1200mm 650*1100*1200mm |
Weight | 350kg 340kg |

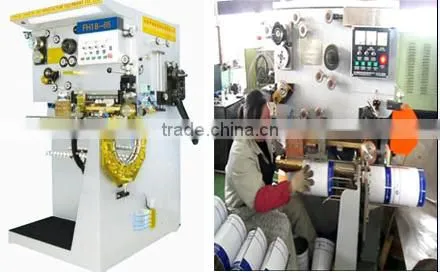

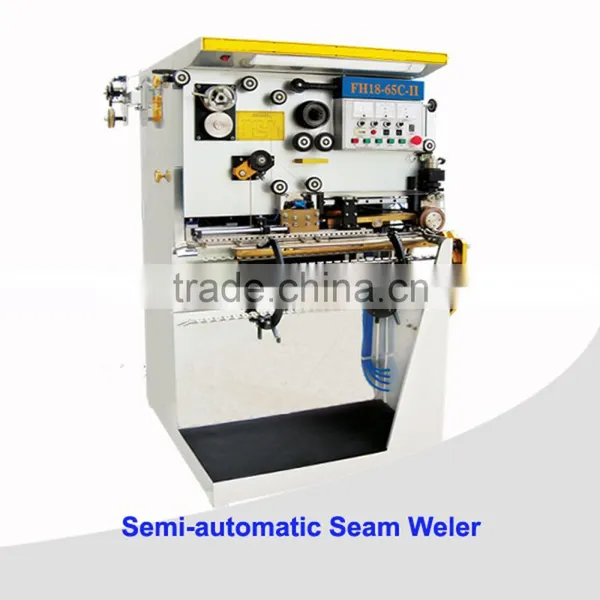

3. seam welding machine:
the main technical parameters of technical parameters:
| model | FH 18-65 |
| linear rate of welding | 6-18 m/ min |
| production capability | 20-80cans/min |
| applicable can diameter | 65-176mm |
| applicable can height | 70-180mm |
| applicable material | tinplate and steel-based sheet metal |
| applicable thickness | 0.18-0.32mm |
| applicable copper wire diameter | 1.38-1.5mm |
| cooling water | less than 20 °C |
| pressure | 0.4Mpa |
| dimesion | 1200*1100*1800mm |
| weight | 1800kg |
| power | 18KVA |
4. flanging machine:
The main parameters of flanging machine:
model | QYA180F |
diameter | 52-180mm |
height | 50-200mm |
thickness | 0.18-0.25mm |
capacity | 15 cans/min |
net weight | 100kgs |
dimension | 400*500*1380mm |
5. sealing machine:
the main parameters of sealing machine:
Capacity | 20-30cans/min |
Diameter | 50-300mm |
Height | 50-400mm |
Tinplate Thickness | ≤0.4mm |
Air pressure | 0.3-0.7Mpa |
Motor type | Y100L-4 |
1. Visit customers regularly
2. engeers available to service machinery overseas
Jiujiang Yongxin Can Equipment Co.,LTD. Located nearby Yangtze Rive and Foot of Mountain Lu.at Jiangxi province with a convenient transportation.
Our company is specialized in can making machines’ producing and sales.With a mature technical knowledge and powerful capacity of designing new product .Our company has developed out the whole production lines of 0.2L - 25L round can , 1L - 18L square can ,5-25L pail can,necked round can and also soap making machine,capacitor /oil filter seamer machine.we have the production line of different kinds of fancy/sweet lock can.
Our company have a working team of designing,producing and making various can making machines which been used in food,chemical and oil industrial field.and our machine had been serviced to Kuwait,Dubai,Indonesia,Vietnam,Japan,Greece,Russia and so on.
Customer first is the business principle of our factory. Being quality-centered is our eternal pursuit.
Jiujiang Yongxin Can Equipment Co.,LTD. Will do our best to win the market by excellent quality machines and perfect after-sale service.
welcome to visit us
