Home > Products > New Products > Factory direct sell and high quality wood briquette extruder machine
Factory direct sell and high quality wood briquette extruder machine
- 100 Set / Sets per Month
- qingdao/shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Hennan Meshen |
Model Number: | MF | Voltage: | 220V/380V/420V | Power(W): | 15-22KW |
Weight: | According to different types | Dimension(L*W*H): | According to different types | Certification: | CE ISO |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

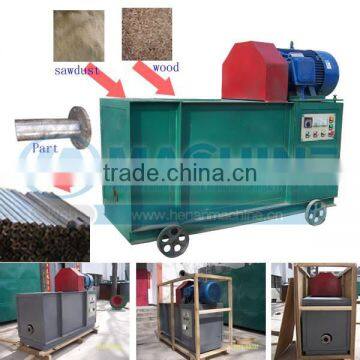

Factory direct sell and high quality wood briquette extruder machine
Introduction of Wood briquettes extruder machine:
This Wood briquettes extruder also called biomass briquette machine and sawdust briquette making machine, is used to make sawdust into half-charcoal-stick. It is equipped with the auto
controlling heating system. The byproduct of this machine can be used to heat boiler, fireplace, etc for warm in house. Using the inherent characteristics of wood raw materials, through the screw extrusion, high temperature, high pressure, the wood raw material to make micro-fiber lignin plastics combine to form a fuel rod. It is the main equipment to make stick solid fuel with such wood material as bits of wood, rice shell or peanuts shell, etc. The raw material(12% Water proportion) dried by the dryer(12% humidity)will be formed into fuel under high pressure and at high temperature. During this process, no need to use binder and noxious chemical.
Working Principle of Wood briquettes extruder machine
1. Crush the raw material into small pieces (diameter is about 3-5mm)
2. Dry the material by machine or dried it in the sun , till the moisture is less than 12%
3. Put the material into briquette press machine without add any chemical goods, it should accord to the high temperature
4. Produce the briquette stick from biomass material without any additive
5. Carbonized the briquette stick

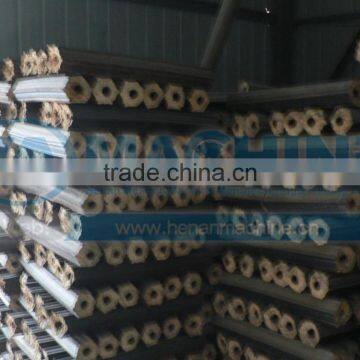

6,Finished briquette have 50MM,70MM diameter can be choice
Detailed parameters of all the models for your checking:
Model | MF-50 | MF-80 |
Output (kg/h) |
180-210 |
340-360kg |
Motor Power (kw) |
15 kw |
22kw |
Electric heater (kw) |
2kw×3pcs |
2kw×3pcs |
Weight(kg) |
700 kg |
1100kg |
Overall dimension(mm) | 1780*750*1290 | 1960*880*1620 |
Size of finished products |
Diameter: |
Diameter: |
Spare parts of Briquette Making Machine:
- Long Life of Screw Shaft
Our machine adopts a durable material (high hardness alloy steel) to make the shaft. We use a different process then what is normally used to make the screw shaft. The screw shaft is manufactured with a milling machine which guarantees that the distance between every screw is the same, and the angle of every screw is the same.
- Long Life of Inner Former
The Inner Former can be used for 1-2 years.The former is made from a whole steel bar through a water jet cutting system so that the inner face is smooth. Therefore, it’ll be easier to form and save energy. This is why the finished produces such as sawdust briquettes are smooth. It consists of two parts and you need to change only the key part when it is worn.
- Heating section - we adopted two heat collars which are made from thick copper wires and are ceramic inside
Lubricating System
.
The gear box is equipped with lubricating system. Moreover, to oil the gear box properly, our briquette machine is designed with an exhaust function which can help maintain consistent air pressure.Auto Cutting System
It’s a simple piece of equipment composed of two steel plates. (Please see the picture), and briquettes can be automatically cut in uniformed lengths.
Payment,Packing and Delivery
Payment :30% TT in advance, 70%6TT balance pay off before delivery.
Packing: The machine and wear parts will protected by plywooden box or as customers’ will.
Delivery time: For one set, the delivery time is 7-10 days, for 1-5 sets 20-25 days, above 5 sets usually negotiate.
Shipping company: MSK/MSC/APL/EMC/WANHAL/KLINE and We will remind you before boat arrive and offer you all the customs clearance documents on time.
Contact Information
Thanks for your interest in our machines and please contact us freely if you have any questions ot requirements by the following contact information. Your visit of our factory to test the machines you like will be warmly welcomed. Hope to have have the honor to cooperate with you in the bright future.
