With long standing reputation coal machine sawdust briquette machine honeycomb briquette machine shisha briquette machine
Brief Introduction of hydraulic arab hookah briquette machine
This type charcoal briquette press machine is a kind of the single-pressure -type automatic tablet machine with powerful hydraulic pressure system. Hydraulic charcoal briquette machine is a kind of new designed shisha and BBQ charcoal briquette machine, which on the base of the mechanical type. There are two inductive contactors, by adjusting them we can make different size of briquettes.
It can press a variety of powder materials like charcoal powder, coal powder, cole powder, wood powder and other mineral powder into round, square ,hexgon or other shape tablets with high density. Especially, it is widely used in making charcoal briquettes field for shisha charcoal , BBQ charcoal. It is mainly exported to Middle East, Europe and other countries with a big annnual sales.
The specification of it as following:
Model | MD-9 | MD-48 |
Applicable materials | charcoal powders, coal powders, sawdust, any powders form Materials | |
Capacity | 11-12 pieces / time;20-22 times/min | 48 Pieces per Time (30 mm);8-12 times/min |
Motor | 7.5 kw (4 pole) | 18.5kw (4 pole) |
Diameter of briquettes | 20,25,30 33 35 38 40 43 mm(round); 20-40 mm(cubic) | 20,25,30 33 35 38 40 43 mm(round); 20-40 mm(cubic) |
Feeding materials | < 3 mm | < 3 mm |
Briquettes shape | Round shape and Cubic shape Or as customers’ request | Round shape and Cubic shape Or as customers’ request |
Pressure | 40-60tons(adjustable) | 40-150tons |
Press type | Mechanical Press | Hydraulic Press |
Overall size | 2500x 950x1550 mm (includes conveyor) | 3500*2000*1800mm (includes conveyor) |
Packing size | 1500x1200x1750 mm | 2100*2100*1900mm |
Weight | 1500 KG | 5500kg |

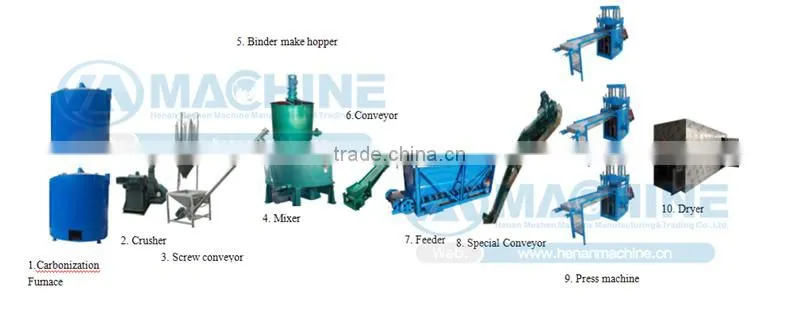

Production steps
raw wood→ charred furnace→ charcoal crusher → screw conveyor → mixer→ bender making hopper→ belt conveyor →shisha charcoal machine→ dryer→ pakaging machine→ finsihed shisha charcoal in round type or cube shape
In order to give you the quotation in time,Pls. tell me the answer of the following questions.
1. what's Raw material ?
2.The moisture and size of raw material ?
3.Capacity you need ?
4.The shape and size of the final product you prefer?
Installation
We can guide you to install the products or directly send our engineer in your country for the installation.
Payment,Packing and Delivery
Payment :30% TT in advance, 70%6TT balance pay off before delivery.
Packing: The machine and wear parts will protected by plywooden box or as customers’ will.
Delivery time:For one set,the delivery time is 7-10days,for 1-5sets 20-25days,about 5 sets usuallynegotiate.
Service
Engaged in machinery manufacturing & exporting for 30 years, we have accumulated rich experience in providing not only the best product, but also the excellent service. We are sure that you could get what you want here:
- Customization service to your specific requirement
- Quality warranty and free maintenance
- Product acceptance ahead of delivery
- Technology support and professional advice
- All-in-one solution for site planning & construction, model selection, worker training, equipment operation
We are the manufacturer with over 30 years working experience.
Thanks for your interest in our machines, If you didn't get the suitable machine in this page, please email me your detailed requirement. Hope to have have the honor to cooperate with you in the bright future.
