Highly Competitive and High Efficient Metallurgies Rotary Drum Dryer/food Drum Dryer Manufacturer

FOB Price

US$ 8,000 - 25,000 / Set

1 Set(Min. Order)

Port Qingdao Shanghai Tianjin Lianyungang
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Drum Drying Equipment
Place of Origin	Henan, China	Brand Name	Hennan Meshen
Model Number	kJ	Voltage	220V/380V
Power(W)	3-75KW	Dimension(LWH)	According to different types
Weight	According to different types	Certification	CE and ISO
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Highly Competitive and high efficient metallurgies Rotary Drum Dryer/food drum dryer manufacturer

Product Description

1.Product description of rotary drum dryer

The rotary dryer is composed of stove, main rotary body, which reduces the moisture from 60% to 10%. The moisture evaporating capacity of our rotary drum dryer can reach to (250kg per hour to 8000kg) per hour. Different density materials, the final product are not the same; also for different moisture of raw materials, which could get the different final capacity.

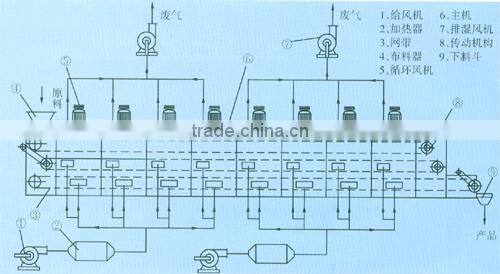

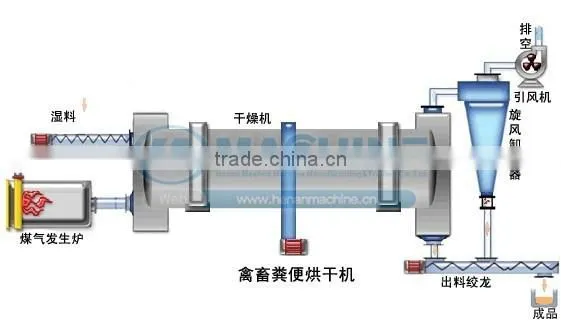

Working process

2.Working Principle of Rotary drum dryer

1.The raw material plate which is arranged reasonably with chargeable angles in order, throws

moisture materials into the rotary cylinder.

2.The water will be separated from the materials by hot airflow and changed into vapor to be

discharged into the atmosphere.

3.Then the material would be dried.

Advantages

3.Features and Benefits of rotary drum dryer:

(1). Reasonable design of raising board and angle ensure the material well-distributed and dry with less times, it has reliable operation and high energy utilization ratio, simple maintenance.

(2). Adopt an adjustable center tug structure, the good cooperation of the tug and the rolling ring reduce the attrition and energy consumption.

(3). The special structure of the dam-wheel decrease the horizontal thrust, when the machine working in inclination station, it has strong ability of anti-overloading, steady operation and high reliability.

(4).High temperature resistance, it can use the high temperature to dry the material quickly,

4.Detailed parameters of all the models for your checking:

Model (mm)	Obliquity(%)	Rotation speed (r/min)	Feeding temperature (degree)	Power (kw)	Capacity(t/h)	Weight (t)
600x6000	3-5	3-8	<=700	3	0.5-1.5	2.9
800x8000	3-5	3-8	<=700	4	0.8-2.0	3.5
800x10000	3-5	3-8	<=700	4	0.8-2.5	4.5
1000x10000	3-5	3-8	<=700	5.5	1.0-3.5	5.6
1200x10000	3-5	3-8	<=700	7.5	1.8-5	14.5
1200x12000	3-5	3-8	<=700	11	2-6	14.8
1500x12000	3-5	2-6	<=800	15	3.5-9	17.8
1800x12000	3-5	2-6	<=800	18	5-12	25
2200x12000	3-5	1.5-6	<=800	18.5	6-15	33
2200x18000	3-5	1.5-6	<=800	22	10-18	53.8
2200x20000	3-5	1.5-6	<=800	30	12-20	56
2400x20000	3-5	1.5-5	<=800	37	18-30	60
3000x20000	3-5	1.5-5	<=800	55	25-35	78
3000x25000	3-5	1.5-5	<=800	75	32-40	104.9

5.Payment,Packing and Delivery

Payment :30% TT in advance, 70%6TT balance pay off before delivery.

Packing: The machine and wear parts will protected by plywooden box or as customers’ will.

Delivery time: For one set, the delivery time is 7-10 days, for 1-5 sets 20-25 days, above 5 sets usually negotiate.

Shipping company: MSK/MSC/APL/EMC/WANHAL/KLINE and We will remind you before boat arrive and offer you all the customs clearance documents on time.

Thanks for your interest in our machines and please contact us freely if you have any questions or requirements by the following contact information. Your visit of our factory to test the machines you like will be warmly welcomed. Hope to have the honor to cooperate with you in the bright future.
