heat pump dryer and vacuum dryer for charcoal barbecue and shisha charcoal
Product Description
vacuum dryer for charcoal barbecue and shisha charcoal and fuit vegetablessuitable for pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries of materials and products heating curing, dryingdehydration. Such as API, crude drugs, traditional Chinese medicine yinpian, extract, book agents, granules, granule, water pills, packing bottle, pigment, dyestuff, dehydration vegetable, dried fruit and melons, banger, plastic resin, electric elements, drying varnish and so on.
Advantages
vacuum dryer for charcoal barbecue and shisha charcoal and fuit vegetablesFeatures:
1. energy saving dryers with two times waste heat recovery;
2. Adopt heat regenerators to dehumidify;
3. operation drying machine easily and more accurate by adopting touch screen controllers and dry/wet bulb to control temperature and humidity,
4. drying time shorter 30% than old models;
Working Principle of heat pump dryer
vacuum dryer for charcoal barbecue and shisha charcoal and fuit vegetables is essentially a heat lifting device. The high temperature heat pump drying unit adopts the reverse Carnot principle, absorbing heat from the surrounding environment and passing it to the heated material(high tmperature). Its working principe is the same to refrigerator, woking by reverse Carnot cycle, except for different working temperature.
Main application of Industrial heat pump dryer
This vacuum dryer for charcoal barbecue and shisha charcoal and fuit vegetables is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries.
Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

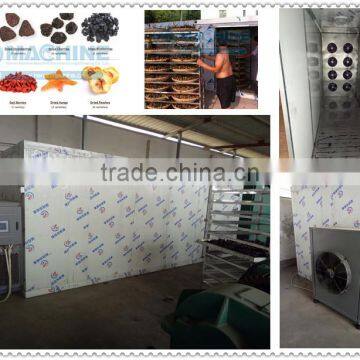

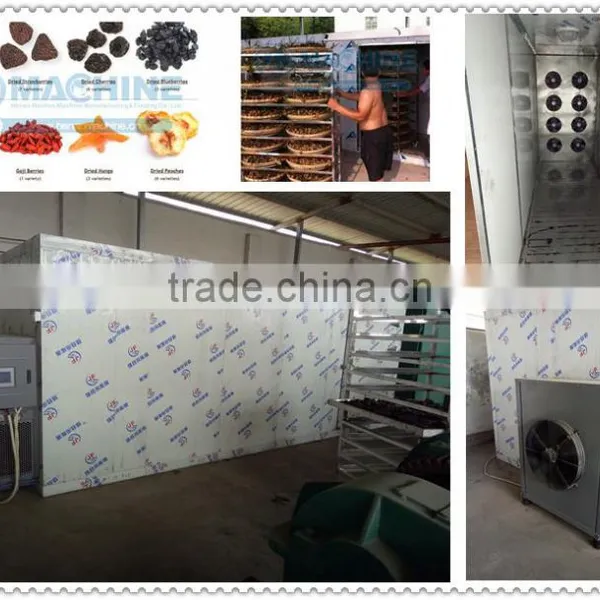

The structure of drying machine
The technical data
Item |
Description |
Product Capacity |
Drying Chamber size |
1 |
One unit LT03RD dryer + drying chamber |
300Kg / batch |
3300*1900*2200mm |
2 |
One unit LT06RD dryer + drying chamber |
600Kg / batch |
6000*2800*2200mm |
3 |
One unit LT10RD dryer + drying chamber |
1000Kg / batch |
6000*3000*2200mm |
4 |
Two units LT03RD dryers + drying chamber |
1200Kg / batch |
7000*2200*2200mm |
5 |
Two units LT06RD dryers + drying chamber |
1500Kg / batch |
10000*2800*2200mm |
6 |
Two units LT10RD dryers + drying chamber |
2500Kg / batch |
10000*3000*2200mm |
Air Source Heat Pump Dryer(drying machine)
1. heat pump dryer and vacuum dryer for charcoal barbecue and shisha charcoal and fuit vegetablesrunning cost just as 40% of oil dryer, 50% of coal burning boiler, 30% of electric boiler;
2.During drying, the material does not craze,does not distortions, nondiscolouring,never degenerate, non-oxidize, drying completely,with good Rehydration, keep nutrient content;
3. Energy saving and enironmental protection;
4. Heating drying and cooling drying,also dehumidify all in one;
5.Conventionally, materials are dried either in the field (sun drying) or using high temperature dryers (electric, gas fired, etc.). Successful outdoor drying depends upon good weather and indeterminate weather can render a product worthless. High temperature drying can damage the nutrient content and impart an unpleasant smell to the dried product.
The packing and shipping
Our trade terms
1. Payment terms: 30% desposit, the balance upon receipt of the copy of BL or LC at sight.
2. Delivery terms: 10-15 days after get your deposit for the single machine.
3. Warranty: The guarantees for our heat pump dryer is 1 years from the date of exporting date. If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.
Service
Engaged in machinery manufacturing & exporting for 30 years, we have accumulated rich experience in providing not only the best product, but also the excellent service. We are sure that you could get what you want here:
- Customization service to your specific requirement
- Quality warranty and free maintenance
- Product acceptance ahead of delivery
- Technology support and professional advice
- All-in-one solution for site planning & construction, model selection, worker training, equipment operation
We are the manufacturer with over 30 years working experience.
Thanks for your interest in our machines, If you didn't get the suitable machine in this page, please email me your detailed requirement. Hope to have have the honor to cooperate with you in the bright future.
