As to biomass briquetting machine

Specifications

biomass briquetting machine:
1.no need binder
2.high density briquette
3.easy to operate
4.long working

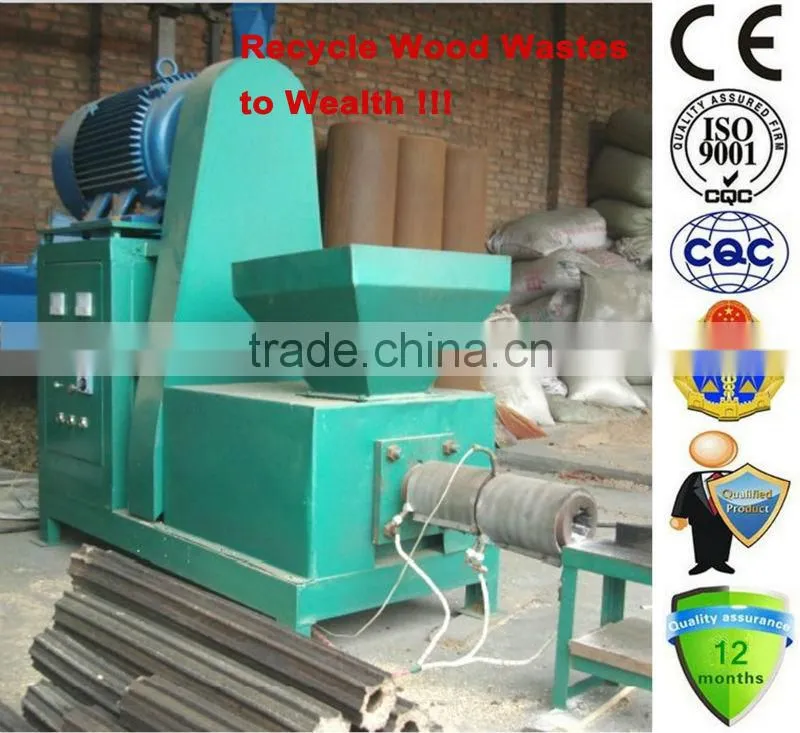

2013-2014 Hot-selling,         biomass briquetting machine l         Introduction of biomass briquette machine

This Wood briquettes extruder also called biomass briquette machine and sawdust briquette machine, is used to make sawdust into half-charcoal-stick. It is equipped with the auto-controlling heating system. The byproduct of this machine can be used to heat boiler, fireplace, etc for warm in house. Using the inherent characteristics of wood raw materials, through the screw extrusion, high temperature, high pressure, the wood raw material to make micro-fiber lignin plastics combine to form a fuel rod. It is the main equipment to make stick solid fuel with such wood material as bits of wood, rice shell or peanuts shell, etc. The raw material(12% Water proportion) dried by the dryer(12% humidity)will be formed into fuel under high pressure and at high temperature. During this process, no need to use binder and noxious chemical.

( High briquetting pressure/  biomass briquetting machine /with factory price for sale )



l         Working Priciple of biomass briquette machine

Briquetting is a process that biomass is compressed under high pressure and high temperature.The lignin

content that occurs naturally inbiomass is liberated under high pressure and temperature. Lignin serves as the

glue in the briquetting process, thus binding, compressing the biomass to form into high density briquettes.

During this process, no binder needs to be used. So the output briquette is a type of clean and green

fuel that is ideal for use in furnaces, boilers and open fires.

( High briquetting pressure/  biomass briquetting machine   /with factory price for sale )

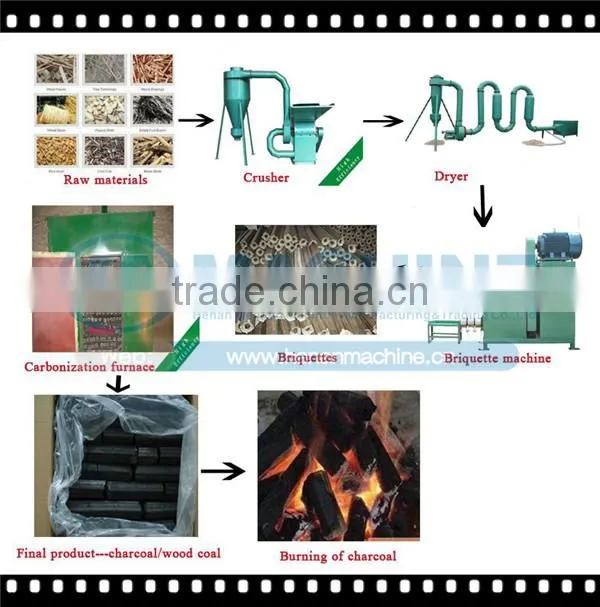

l         Working process of biomass briquette machine

1. Crush the raw material into small pieces (diameter is about 3-5mm)

2. Dry the material by machine or dried it in the sun , till the moisture is less than 12%

3. Put the material into briquette press machine without add any chemical goods, it should accord to the high temperatre

4. Produce the briquette stick from biomass material without any additive

5. Carbonized the briquette stick

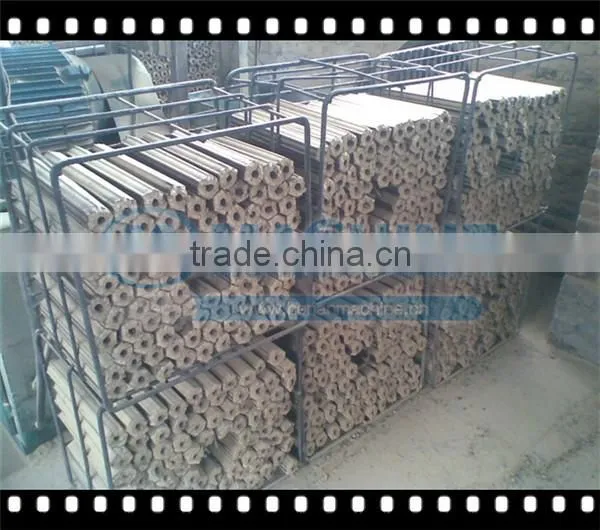

6,Finished briquette have 50MM,70MM ,80mm diameter can be choice

CE approved /     biomass briquetting machine    /with factory price for sale







l        Detailed parameters of all the models for your checking:



Model No.	MF50	MF70	MF80
Output	150-200kg/h	200-250kg/h	260-350kg/h
Main Motor Power	15kw	18.5kw	22kw
Electrical Heater Power	3X1.5kw	3X2kw	3X2kw
Dia. of Briquettes	Ø40 Ø45 Ø50 mm	Ø60 Ø70 mm	Ø70 Ø80 mm
Dimension	1.65*0.68*1.6m	1.9*0.6*1.8m	1.9*0.6*1.85m
Weight	680kg	750kg	800kg
Density of Briquettes	1.2-1.4T/CBM

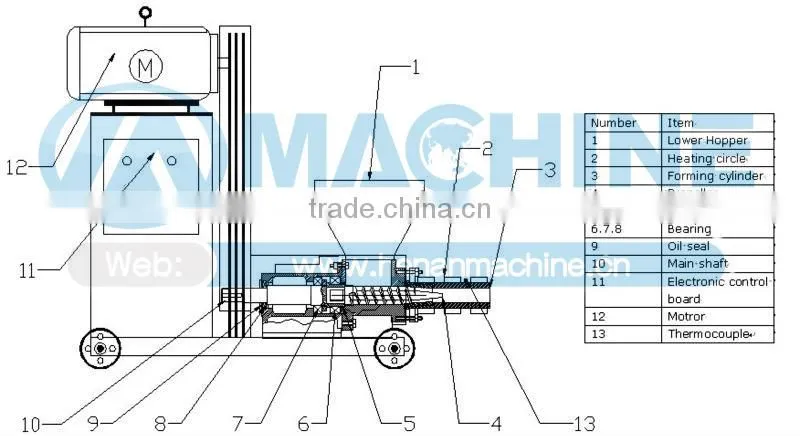

l        Spare parts of Briquette Making Machine:

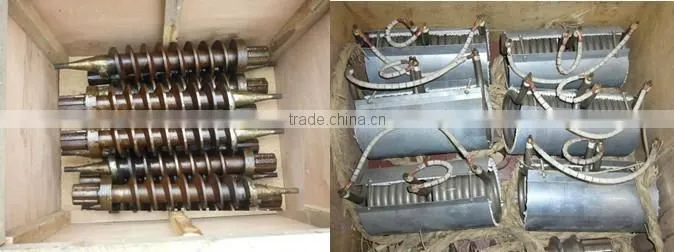

Long Life of Screw Shaft Our machine adopts a durable material (high hardness alloy steel) to make the shaft. We use a different process then what is normally used to make the screw shaft. The screw shaft is manufactured with a milling machine which guarantees that the distance between every screw is the same, and the angle of every screw is the same.

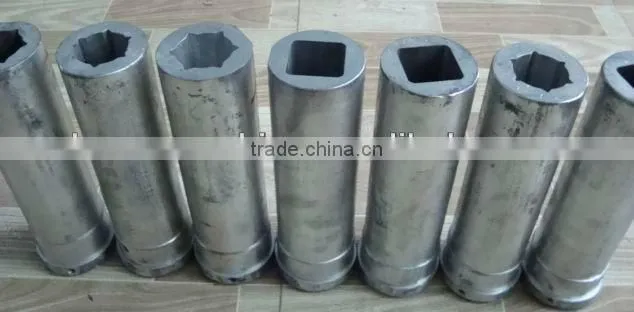

Long Life of Inner Former The Inner Former can be used for 1-2 years.The former is made from a whole steel bar through a water jet cutting system so that the inner face is smooth. Therefore, it’ll be easier to form and save energy. This is why the finished produces such as sawdust briquettes are smooth. It consists of two parts and you need to change only the key part when it is worn.
Heating section - we adopted two heat collars which are made from thick copper wires and are ceramic inside.
An attractive feature on the forming hopper is that we added a movable plate on the bottom. It has two functions, one is you can clean it easily. The other is that you can discharge the inputted material when it is jammed.
Lubricating System The gear box is equipped with lubricating system. Moreover, to oil the gear box properly, our briquette machine is designed with an exhaust function which can help maintain consistent air pressure.
Auto Cutting System It’s a simple piece of equipment composed of two steel plates. (Please see the picture), and briquettes can be automatically cut in uniformed lengths.







l         The Five Conditions of the Investing Biomass Briquetting Equipment

• Sufficient Biomass Raw Materials
  Sawdust, rice husks, seed shells, walnut shell, twigs, bark, sediment, vinegar residue, furfural residue, wood chips and various crop stalks are all appropriate materials for briquetting production. Two requirements for raw materials: One is size requirement (particle size less than 1cm) and the other is moisture content requirement (below 12%).(Good wood shaving briquette machine price )
• Required Ancillary Equipment

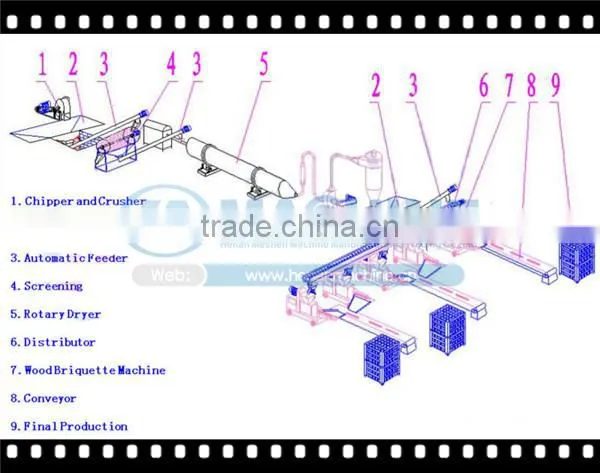

  If the raw material is not in particles, four kinds of ancillary equipment are needed: crusher machine, dryer machine, briquetting press and packing machine If the raw material is less than 1cm particles, three kinds of ancillary equipment are required: biomass briquetting press, dryer, packing machine. Buy a carbonization furnace if you want to make charcoal.

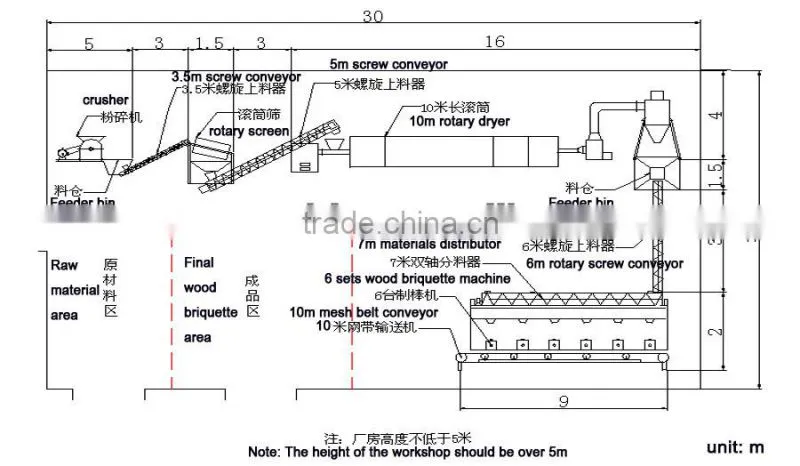

• Biomass Briquetting Plans
  You should make a feasible biomass briquetting plans depending on your specific situation and needs in advance. The devices are not working individually. The whole briquetting process runs as a production line. So a beforehand plan is needed to make your business efficient. Here is an example: one Pipeline type dryer is affordable for two briquetting presses. A 900 * 10000mm tumble dryer can bear five briquetting press.

• Technical Support
  Experience and technical support is crucial for a profitable briquetting business. Buying from (a reliable briquette machine manufacturer & supplier) and we will offer technical guidance on factory setting up, ( wood shaving briquette machine maker)



l        Payment,Packing and Delivery

l          Payment :30% TT in advance, 70%TT balance pay off before delivery.

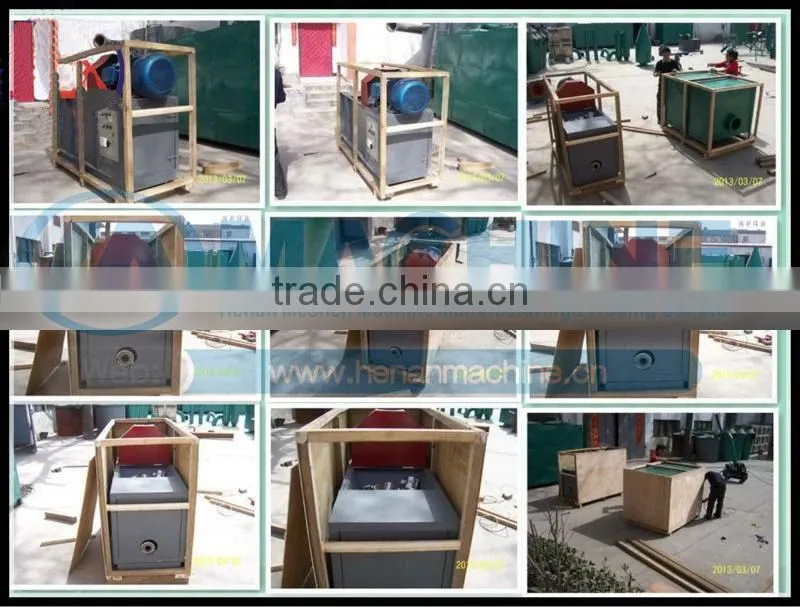

l          Packing: The machine and wear parts will protected by plywooden box or as customers’ will.

l          Delivery time: For one set, the delivery time is 7-10 days, for 1-5 sets 20-25 days, above 5 sets  usually negotiate.

l          Shipping company: MSK/MSC/APL/EMC/WANHAL/KLINE and We will remind you before boat arrive and offer you all the customs clearance documents on time.



l        Contact Information

Thanks for your interest in our machines and please contact us freely if you have any questions ot requirements by the following contact information. Your visit of our factory to test the machines you like will be warmly welcomed.
