inline water pump
- 5000 Set / Sets per Month
- Changsha (Shanghai)
- T/T
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hunan, China | Brand Name: | high rise building water supply pump | Model Number: | G ( RG, HG, YG) |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | Low Pressure | Application: | Other, water pressurizing, Sewage/water/oil and other chemicals |
Product Description

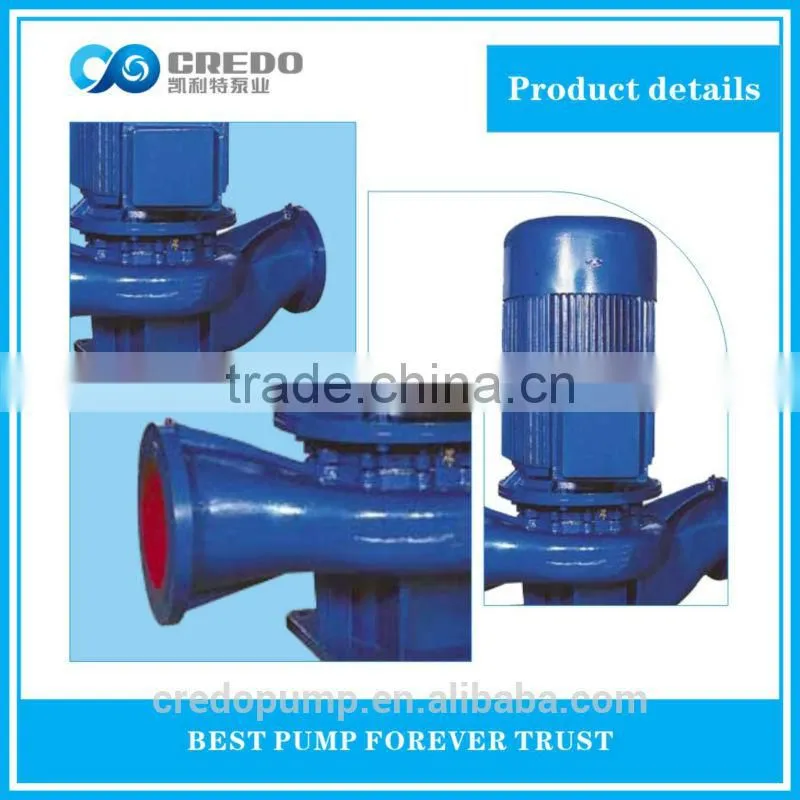

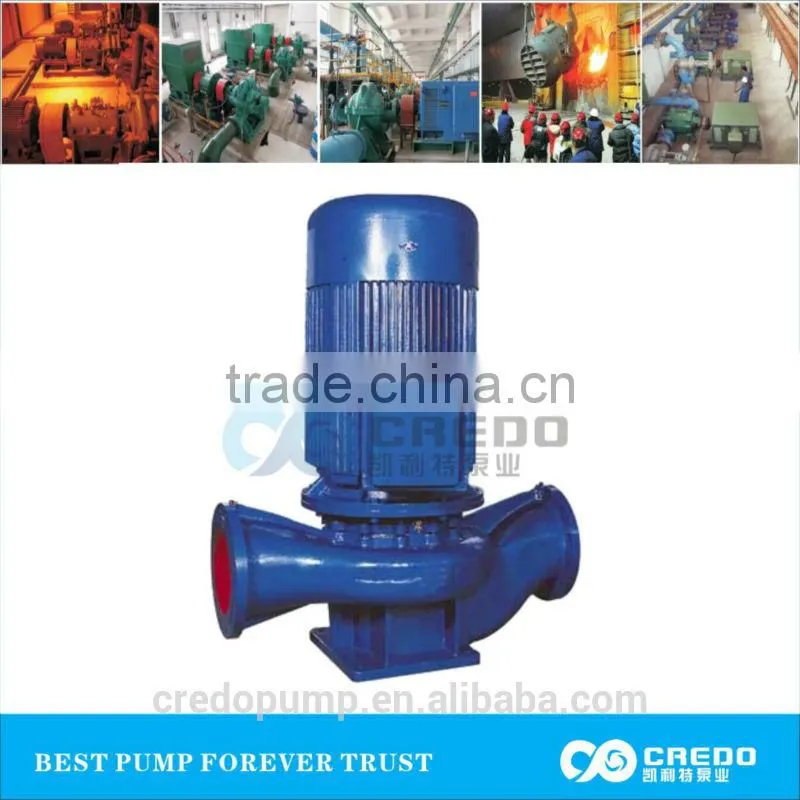

inline water pump
inline water pump
1.What is Credo G/RG/HG/YG type pump ?
Type G, RG, HG, YG pumps are designed carefully according to different working conditions. The hydraulic model is excellent. These pumps measured up to JB/T53058-93 quality standard and according to ISO2858 International standard.
1.Type G pumps have been used for water supply in industry, cities,high-rises, cold or hot water circulation in air-condition, Fire fighting pipeline pressurizing, transport water from far away, pressurizing transport in industrial circulating system, garden sprinkler irrigation. They are provided for delivering clear water or other liquid which is physically and chemically similar to water. The temperature of the liquid is below 80 °C .
2.Type RG pump is used for hot water circulation in boiler, hothouse, bathroom, industrial circulating system with non-corrosive hot water. The temperature of the liquid is below 150 °C .
3.Type HG pumps are used for chemical ,Pharmaceutical, paper, textile industry. They are provided for delivering corrosive liquid,. The temperature of the liquid is below 120 .
4.Type YG pumps are used for transfer oil products without solid particles. The temperature of the liquid is -20~80 °C .
2. What is the advantages of Credo G/RG/HG/YG type pump ?
The motor and pump are joined directly without transmission parts. So they operate smoothly. The shaft seal is made with hard alloy mechanical seal, therefore, there is on leakage. The inlet and outlet have same diameter and sports on a single line, it can be fixed anywhere like valves in pipeline. Beside, they feature smooth operation and lower noise etc. In conclusion, this series pumps are favored in market because of their smooth operation, high efficiency, less energy consumption, small floor space and compact structure.
3.What is the performance range of Credo G/RG/HG/YG type pump ? Capacity Q:5.6~720m3/h Head H:5~125m |

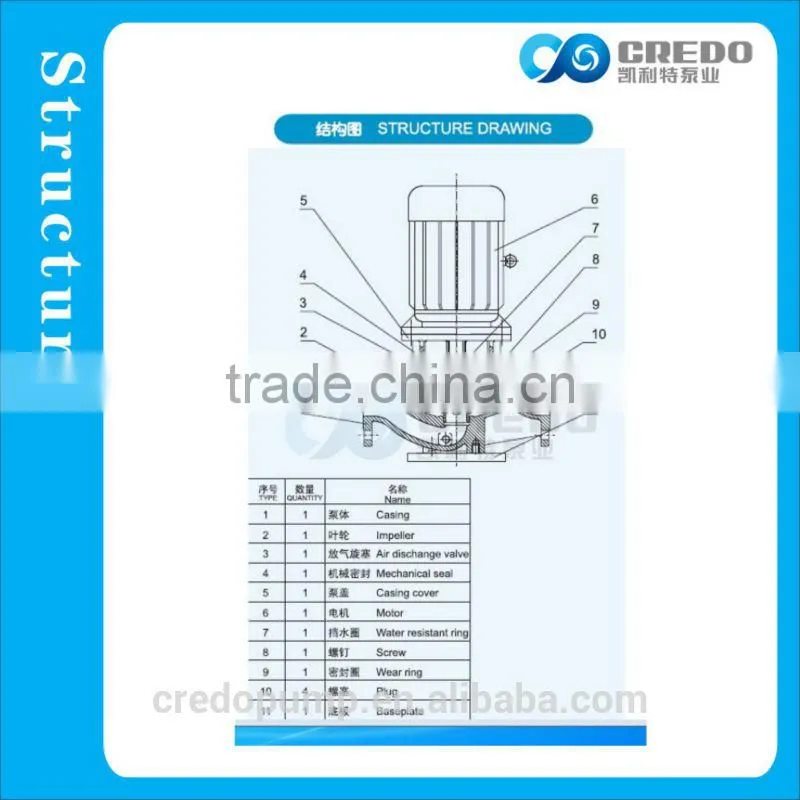

4. Description of the pump |
G ( RG , HG , YG ) 80-160A G—Vertical centrifugal pump RG—hot water pipe pump HG—chemical pipe pump YG—oil pipe pump 80—Inlet diameter is 80mm 160— Impeller nominal diameter IS160mm A—outer diameter of impeller is changed the first, second, third time. |
Polywood case, as per customers requirements// 45-60 days after payment.
