multistage booster pump
- 100 Set / Sets per Month
- any port in China
- T/T Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hunan, China | Brand Name: | multistage centrifugal booster pump | Model Number: | D/MD/DF/DY |
Theory: | Centrifugal Pump | Structure: | Multistage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | High Pressure | Application: | Other, Sewage, Sewage/water/oil and other chemicals |
Product Description

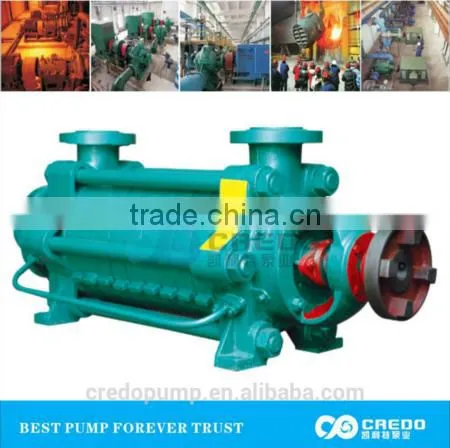

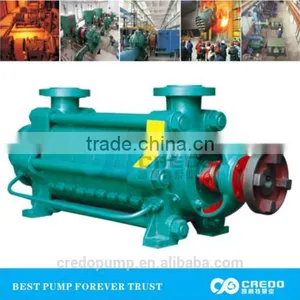

multistage booster pump
multistage booster pump
1,What are the details about Credo D/MD/DF/DY Series pump ?
1) The serial pump is multi-stage sectional centrifugal pump with the excellent hydraulic model, it has advantages of high-efficiency, energy-saving, wide performance range, oprating safely and steadily, low noise, long life and convenience for installing and repairing etc. It can delivery heat water, oil, corrosive or wearable medium by changing material of pump.
2) Type D pump is used in mine and urban project for delivering clear water without solid particles or other liquids which are physically or chemically similar to clear water. The temperature of liquids are not be over 80 °C.
3) Type MD pump is used to deliver nertral water with solid particles below 1.5% (viscosity less than 0.5mm) and other sewage. It is suitable for using in steel factory and mine etc. The temperature of liquids can not exceed 80°C.
4) Type DF pump is used for delivering corrosive liquids without solid particles, the temperature of liquids is -20 °C ~105 °C.
5) Type DY pump is used for delivering oil and pertroleum products without solid particles and viscosity below 120 centistokes, the temperature of liquids is -20 °C ~150 °C. The inlet pressure of all above pumps is less than 0.6Mpa.
2,What are the struction of the Credo D/MD/DF/DY Series pump ?
Type D/ MD/ DF/ DY multistage horizontal centrifugal pump consists of stator, rotator, bearing and shaft seal:
1) Stator: main parts is suction casing, stage casing, discharge casing and diffusor, they are screw up by poles to become a working house. The suction direction of D pump is horizontal, its discharge direction is upword; the discharge direction of MD/DF/DY pumps are upward, the suction direction is horizontal, they can be made upword according to user requirement.
2) Rotor: it is consist of shaft, impeller, balance disc, and shafe sleeve etc. Shaft supplied power to impeller. The axial force is balanced by disc. The shaft sleeve is mounted on shaft to protect shaft.
3) Shaft seal: it is usually adopted soft packing seal, consist of sealing house on suction casing, packing, blocking water ring, the seal house have some pressure water to cool. Lubricate and seal pump. Type D pump pressure water come from pump itself; type MD/DF/DY pump pressure water is come from pump itself or outer water, type MD/DF/DY pump usually adopt mechanical seal.
4) Drive: The pump is driver directly by motor through coupling.
3,What are the material of Credo D/MD/DF/DY Series pump?
Part Name | D | MD | DY | DF |
Suction casing | HT250 | ZGCr17Mo2-CuR | HT250/ZG230-450 | Cast steel or Cast stainless steel |
Stage casing | HT250 | ZGCr17Mo2-CuR | HT250/ZG230-450 | Cast steel or cast stainless steel |
Discharge casing | HT250 | ZGCr17Mo2-CuR | HT250/ZG230-450 | Cast steel or cast stainless steel |
Impeller | HT250 | KmTBCr15Mo3 | HT250/ZG230-450 | Cast steel or cast stainless steel |
Diffuser | HT250 | KmTBCr15Mo3 | HT250/ZG230-450 | Cast steel or cast stainless steel |
Shaft | 45 | 45 | 45 | stainless steel |
Balance disc | ZQA19-4 | ZGCr17Mo2-CuR | ZQA19-4 | Cast steel or cast stainless steel |
4,What are the performance ranges of Credo D/MD/DF/DY Series pump ?
Capacity Q:6.3~600m3/h
Head H:22.8~650m
5,Description of the Credo D/MD/DF/DY Series pump ?
D(MD,DF,DY) 85-67×3
D —Multi-stage horizontal centrifugal pump
MD —Multi-stage wearable centrifugal pump
DF —Multi-stage anti-corrosive centrifugal pump
DY —Multi-stage centrifugal oil pump
85 — The capacity is 85m3/h at design point
67 — The single stage head is 67m at design point
3 —The stage number is 3 stage
Polywood Case, as per customer requirement // 45-60 days after payment
