1.A brief description about the Credo ZA/ZE process pump .
Type ZA, ZE petro chemical process pumps, according to API 610(8th edition), for pumping clean or slightly polluted. cold or hot, chemically neutral or aggressive liquids.
2.How does Credo ZA/ZE process pump works?

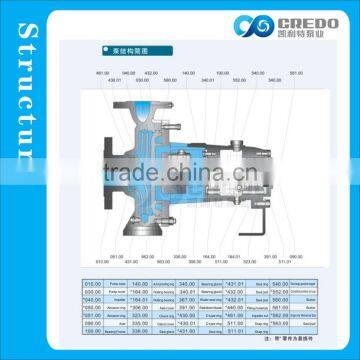

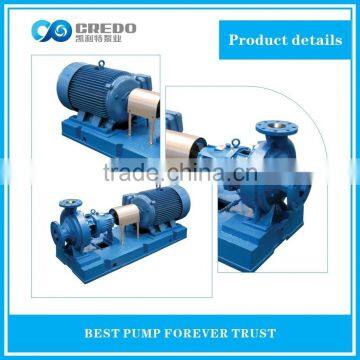

1) Type ZA, ZE Petro Chemical Process Pumpsare single-stage, horizontal, radial split volute casing pumps with feet below and single-entry radial impeller, end suction branch, radial upwards discharge branch.
2) Type ZA, ZE Petro Chemical Process Pumps are depending on operating conditions hydraulic balance provided by front or rear wear rings and balance holes. Casing cover with cooling or heating connections, shaft sealing by packing or mechanical seals of any design(single or double working), connections for cooling, flushing or sealing liquid.
3) Standardized pipe work according to API plans. The rotation of the pump rotor is clockwise looking from the motor to pump.
3. What are the pumping mediums of Credo type Za/ZE process pump ?
There are several medium that the Type ZA, ZE Petro Chemical Process Pumps can transport. An example is shown below.
1. Organic acid and inorganic acid such as sulfuric acid, nitric acid, hydrochloric acid, phosphoric acid, which at various temperature and concentration.
2. Various salt solution.
3. Various liquid petroleum chemical products, organic compound as well as raw materials with corrosive and the products.
At present, anti corrosive materials for pumps provided by our plant can meet all the requirements of the medium mentioned above. Please provide the detail service conditions for pump to us, when you order.
4. What are the application ranges of Credo ZA/ZE process pump ?
1. In refineries, petrochemical industry, coal processing and low temperature engineering.
2. In chemical industry, fibre and general processing industries, particularly in paper and pulp industries, sugar industry.
3. In water industry, particularly seawater desalination plants,power stations.
4. In heating and air-conditioning, environmental protection engineering, ship and offshore industries.

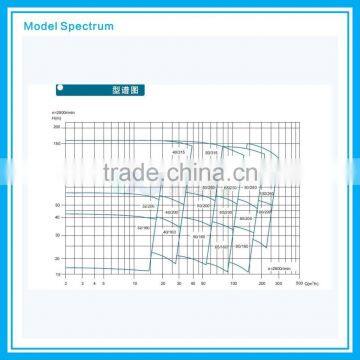

5. What are the performance range of Credo Type ZA,ZE process pump ?
Sizes DN:25-400mm Capacities Q: 3-2600m3/h Head H:4-250m Operating Pressures P: 2.5MPa Operating temperatures T:-40°C∼+300°C(Type ZA) -40°C~+450°C(Center support)(Type ZE) |
Description of Credo Type ZA,ZE process pump
ZA80-160A ZA—single stage Chemical Process Pumps 80—pump outlet diameter 160—impeller diameter A—outer diameter of impeller is changed the first, second time. |
Wooden carton, as per customers requirement//30-35 days after payment
