diesel water pump/ irrigation water pump/ irrigation diesel water pump

diesel water pump/ irrigation water pump/ irrigation diesel water pump

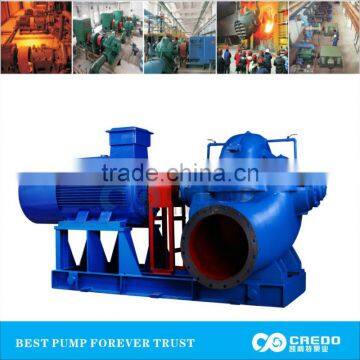

1,What is Credo CPS irrigation diesel water pump ?

Type CPS pumps are new type pf single-stage double-suction centrifugal spilit pumps with high performance. They are widely used in deliverying liquids to the water plant, circulation water system of air-conditioner, pipe net system of supplying heated water, construction, watering, drainge pumping station, power- station, industrial water supply system, ship.

2,What is the Construction of Credo CPS irrigation diesel water pump  ?

Type CPS pumms are horizontally installed, the casing and the cover of pumps are devided along the axis. The pump cover is above the shaft and the casing is under the shaft. The inlet and the outlet are under the shaft. The centreline of inlet and outlet is perpendicular to the axis. The rotor elements will be removed without disturbing the inlet piping and the outlet piping, only dismantling the pump cover while maintenance. The shaft seaft seal uses packing seal or mechanical seal.

3,How does Credo CPS irrigation diesel water pump works?

The rotation for type CPS pump is clockwise looking from the motor to the pump, i.e.the pump inlet is on the right and the outlet is on the left. The driver(motor) also may be connected with the end of pump shaft sccording to customer's requirements, meantime, the rotation, the direction of inlet and outlet are oppsite to the above-mentioned.

4,The material of main parts of  Credo CPS irrigation diesel water pump

The medium-contacting parts are of cast iron.

The material of impeller also may be cast steel or brass according to customers requirements.

5,Complete provision range of Credo CPS irrigation diesel water pump

Pump, motor, coupling. Common bedplate will be supplied when inlet diameter of pump is less than 200mm.

Polywood Case , as per buyers requirements// 45-60 days after payment
