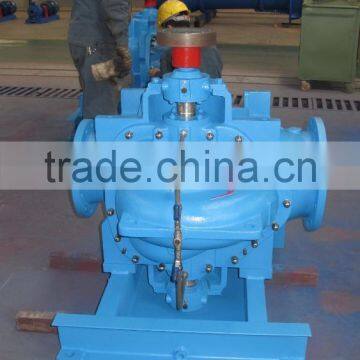

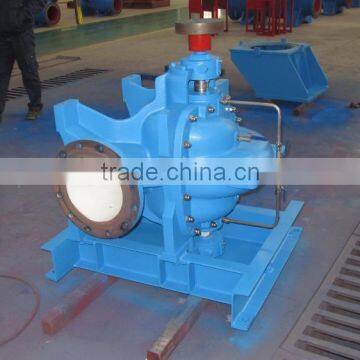

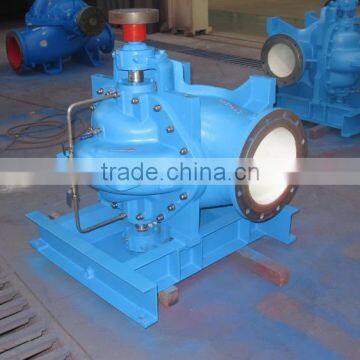

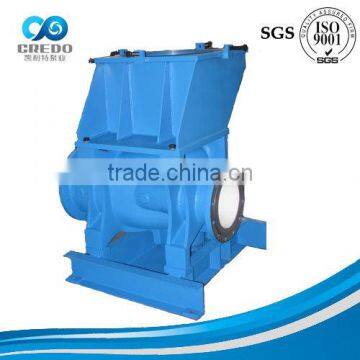

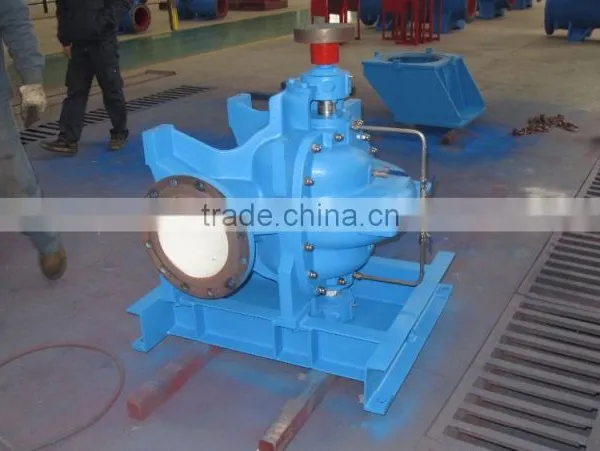

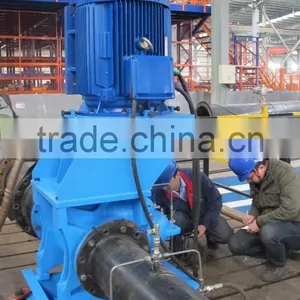

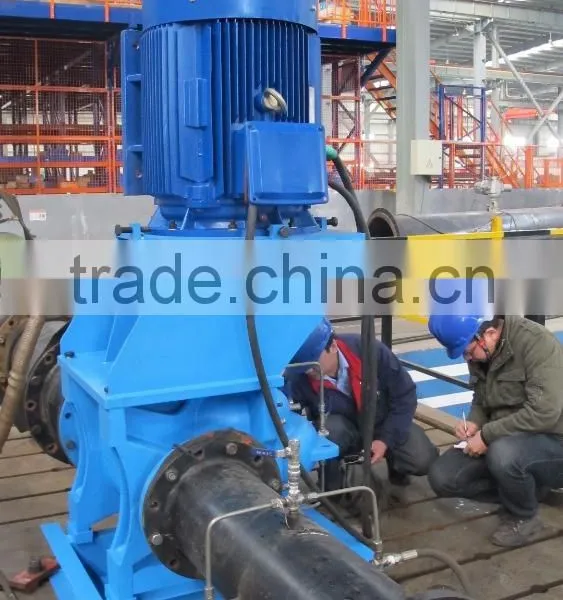

Vertical Split Case Pump for Fire

Vertical CPS Series: High Efficiency Split Case Pump

CPS series single-stage double-suction split case pump is upgraded high efficiency product, which is on the basis of absorbing advanced technology of likewise products from domestic and oversea, and using advanced design methods like three-dimensional flow theory, CFD calculation simulation etc. CPS series products have advantages of wide range of spectrum, high efficiency, good cavitations performance, compact structure, high stability, low maintenance cost etc.

Main Features

1. Wide range high efficiency area

2. Bearing block separate from pump body easy to maintenance

3. Dynamic and static testing for all rotor parts

4. Pump shaft is a type of full sealing structure which can protect shaft no touch liquid, bearing parts equip with oil lip sealing and V-type sealing ring, which can resist leaking, dust, water and humidity.

5. Shaft sealing system can be gland packing or mechanical seal, and easy to achieve gland packing interchange with single mechanical without any modification.

6. Lubrication system can be grease or oil lubricating system.

7. Inlet/out flange could be by ISO, DIN, BS, ANSI, KS standards etc.

8. Pump rotation can be changed from CW to CCW without any modification.

9. Q-H-P performance test according to ISO9906:2013; NPSHr test according to ISO9906; Vibration limit ISO 10816-7 II grade

Name: Vertical CPS Series Pump

Brand: Credo/OEM

Original: CHINA

Domestic famous pump, strong R&D department, unique design with high technical performance. We invest 12% operating income of our company into the research and technological innovation industry each year.

CPS Types

We divide split case pump into three types: Room temperature &clear water pump(CPS standard series), High temperature environment pump(CPS-R series) and Oil lubricating for chemical media pump(CPS-H series, and CPS-X series).

Main Performance

Performance Range:
Capacity(Q): Up to 36000m3 /h
Delivery High(H): Up to 220m
Efficiency: 92%(Max.)
Liquid Temperature: Up to 150℃
Power: 15---4000KW
Working Pressure: P≤2.5MPa
Outlet Dia: 1000-1400mm
Inlet Dia: 150-1600mm

Application

Civil water supply & transferring, power plant, fire control system, agricultural irrigation, industrial water supply & drainage, hydraulic engineering etc.
