380v water centrifugal pump
- 1000 Set / Sets per Month
- Changsha (Shanghai)
- T/T Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hunan, China | Brand Name: | double suction centrifugal pump | Model Number: | S/CPS |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | Low Pressure | Application: | Other, water supply and drainage, Sewage/water/oil and other chemicals |
Product Description
Centrifugal pump supplier
Centrifugal pump supplier
1,What is Credo CPS double suction centrifugal pump ?
Type CPS pumps are new type pf single-stage double-suction centrifugal spilit pumps with high performance. They are widely used in deliverying liquids to the water plant, circulation water system of air-conditioner, pipe net system of supplying heated water, construction, watering, drainge pumping station, power- station, industrial water supply system, ship.

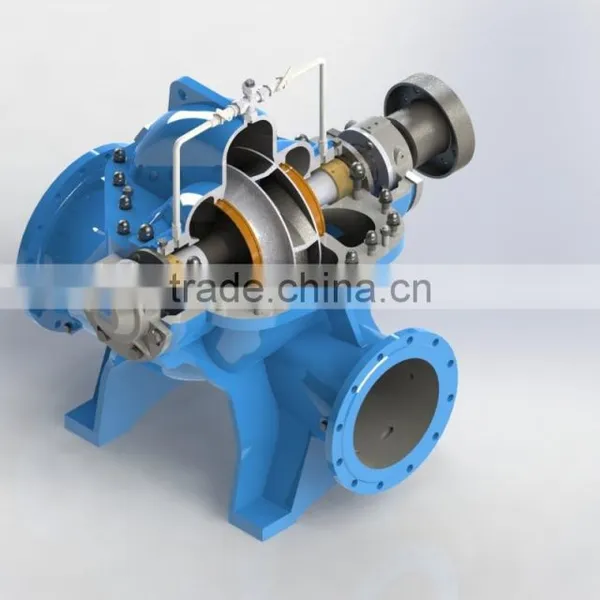

2,What is the Construction of Credo CPS double suction centrifugal pump ?
Type CPS pumms are horizontally installed, the casing and the cover of pumps are devided along the axis. The pump cover is above the shaft and the casing is under the shaft. The inlet and the outlet are under the shaft. The centreline of inlet and outlet is perpendicular to the axis. The rotor elements will be removed without disturbing the inlet piping and the outlet piping, only dismantling the pump cover while maintenance. The shaft seaft seal uses packing seal or mechanical seal.
3,How does Credo CPS double suction centrifugal pump works?
The rotation for type CPS pump is clockwise looking from the motor to the pump, i.e.the pump inlet is on the right and the outlet is on the left. The driver(motor) also may be connected with the end of pump shaft sccording to customer's requirements, meantime, the rotation, the direction of inlet and outlet are oppsite to the above-mentioned.
4,The material of main parts of Credo CPS double suction centrifugal pump
The medium-contacting parts are of cast iron.
The material of impeller also may be cast steel or brass according to customers requirements.
5,Complete provision range of Credo CPS double suction centrifugal pump
Pump, motor, coupling. Common bedplate will be supplied when inlet diameter of pump is less than 200mm.
6,Performance Range of the Credo CPS double suction centrifugal pump Outlet diameter of pump DN 80—800mm
Capacity Q:22—11600
Head H:7—200
Temperature T: -20°C~105°C
Solid grains ≤80mg/l
Permitted working pressure ≤2.5Mpa |
7,Description of Credo CPS double suction centrifugal pump |
CPS300-700(I)A
CP—Made In CREDO PUMP
S—High Efficency Single-Stage Double-Suction Centrifugal Pump
300—Outlet Diameter is 300mm
700—The Nominal Diameter of impeller
(I)—Remodel Design of impeller
A—A,B,C separately represents that outer diameter |
Polywood Case , as per buyers requirements// 30-35 days after payment
