vertical mixed flow pump 50HZ/60HZ
- 2000 Set / Sets per Month
- Changsha (Shanghai)
- T/T
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hunan, China | Brand Name: | CRLX vertical mix flow pump | Model Number: | CRLX |
Theory: | Other, centrifugal pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, electric motor or diesel |
Pressure: | Low Pressure | Application: | Other, sewage delivery |
Product Description

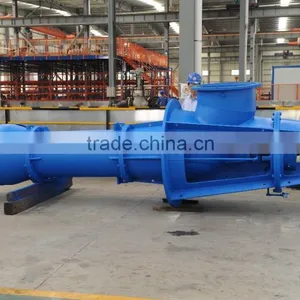

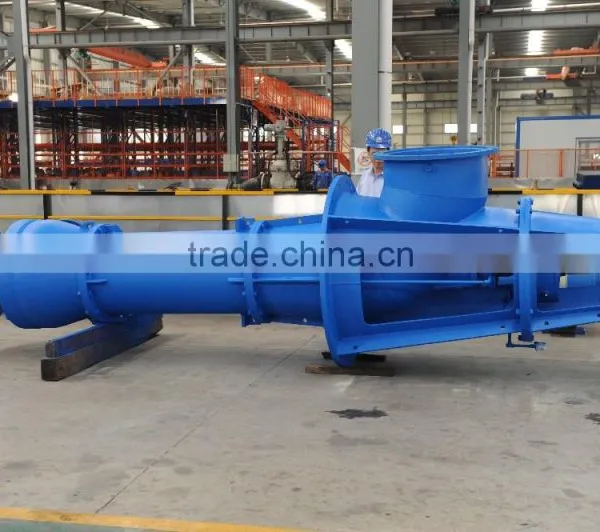

vertical mixed flow pump 50HZ/60HZ
vertical mixed flow pump 50HZ/60HZ
1.What is LX Series vertical mixed flow pump ?
LX series vertical mixed flow pump is a newly developed product with both homeland and overseas advanced experience in design and manufacture. LX series pump is used to deliver clear water, sewage with certain particles (such as iron scrap, sand, coal powder etc.) and industry waste water and sea water with corrosive. The temperature of liquid can not be above 80°C. LX pump is widely used in original water works, waste water factory, metallurgy and stell industry (especially suitable for delivering oxygenation iron sheet water in swirl pool), power station mine, civil project and farmland etc.
2.What is the Construction of LX Series Mixed flow pump ?
LX series pump is installed with single foundation, its inlet is vertical downward and outlet is horizontal. The pmp and the motor are directly connected. The rotation of pump rotor is counter clockwise looking from the motor to the pump.
3.What are the main features of LX Series mixed flow pump ?
1. LX series deep well water pump is fine designed with hydraulic design software. It makes impeller and other wearing parts have a long life because of anti-abrasive impeller and diffuser. LX series multistage vertical turbine pump is not only reliabole, safe, steady but also saving energy.
2. There is filter in pump inlet with proper hole, this can nor only prevent impurity entering pump to damage pump but also decrease inlet loss and increase pump effiency.
3. Impeller adopts balance hole to balance axial force. There is replaceable seal ring in front and back cover board of impeller to protect impeller and pump.
4. Pump middle shaft, water column and guard pipe are muti-burl, middle shaft uses technology of sleeve coupling. Water pipe can be more or less for different inundated depth according to user's requirement. Impeller and diffuser are multi-stage for different head.
5. Water pipe is connected by flange with guide bearing in its middle. Pump guide bearing adopts ethane or thordon bearing, it can also adopt rubber(whtn the temperature of liquid is over 55°C). Shaft is protected by guard column, the guide bearing should be supplied with exterior cooling lubricating water, while delivering sewage.
6. The remaining axial force of pump and the weight of rotor parts are borne by thrust bearing in motor seat or motor with thrust bearing. The thrust bearing is lubricated by dilute oil and cooled with exterior water. The thrust bearing can have element for monitoring temperature.
7. Pump shaft seal adopts packing seal, there is replaceable shaft sleeve in shaft seal and guide bearing to protect shaft and it is convenient to adjust axial location of impeller by nut in bearing parts upper end or pump coupling.
8. LX series pump can be equipped with controller which can automatically start and stop pump according to liquid level, give an alarm for over loading and control many pumps in long-distance. There is automatic exhaust system for pump with diameter over 500mm.
4.What is the Product Data of LX vertical turbine pump ? (1).Description of LX vertical mixed flow water pump prices Capacity Q:60~72000m3/h Head H: 12.5~60m |
(2) Performance range eg. 300LX2-50A 300—Outlet diameter of pump is 300mm LX—Vertical mixed flow pump 2—Impeller stage number (No indication, whenstage number is 1) 50—The head is 50m at design point A—Impeller diameter is cut |
Plywood case, as per customers requirement// 45-60 days after payment
Material list
Service Fluid Material | Clear Water | Sewage | Seawater | ||
Ⅰ | Ⅱ | Ⅲ | IV | ||
Part Name | |||||
Inlet | HT250 | HT250 | HT250Ni2Cr | ZG00Cr17Ni14Mo2 | |
Impeller | HT250 | ZG1Cr13Ni1, ZG1Cr18Ni9 | ZG00Cr17Ni14Mo2 | ZG00Cr17Ni14Mo2 | |
Diffuser | HT250 | QT500-7 | HT250Ni2Cr | ZG00Cr17Ni14Mo2 | |
Water Column | Q235-A | Q235-A | HT250Ni2Cr | ZG00Cr17Ni14Mo2 | |
Discharge Elbow | Q235-A | Q235-A | HT250Ni2Cr | ZG00Cr17Ni14Mo2 | |
Guard Column | Q235-A | Q235-A | 1Cr18Ni9 | 00Cr17Ni14Mo2 | |
Shaft | 45/2Cr13 | 45/2Cr13 | 1Cr18Ni9 | 1Cr18Ni9 | |
Shaft Sleeve | 2Cr13 | 2Cr13 | 1Cr17Ni2 | 1Cr17Ni2 | |
Guide Bearing | Filling in Ethane or Thordon | ||||
Guide Bearing Body | HT250 | HT250 | HT250Ni2Cr | ZG00Cr17Ni14Mo2 | |
Sealing Ring | HT250 | 2Cr13 | HT250Ni2Cr | ZG00Cr17Ni14Mo2 | |
Adapter Coupling | 45/2Cr13 | 45/2Cr13 | 1Cr17Ni2 | 1Cr17Ni2 | |
Coupling | HT250 | HT250 | HT250 | HT250 | |
Motor Support | Q235-A | Q235-A | Q235-A | Q235-A |
Inquiry parameter should provided;
Capacity | ? |
Head | ? |
Quantity | ? |
Submerged Length | ? |
Driven by | Electric Motor or Diesel |
Rotor | Draw or can not draw |
base plate | single or double |
Discharge elbow | upper/down on the base plate |
pump media | water or others, corrosive or not, solid particle (dia and percentage) or not , liquid temperature |
pump material | impeller, shaft, diffuser, shaft sleeve, guide bearing, seal ring etc. |
Thrust Bear | Motor or pump? |
