Wholesale JULY pneumatic high pressure air filter regulator combination
- 2500 Set / Sets per Month
- shenzhen
- T/T Credit Card
- Pilot operated regulator norgren solenoid valve cylinder Pneumatic 11-042-012
- General purpose Pressure regulator Filter norgren solenoid valve R18-C00-RNXG
- R64G-NNK-NMN Filter norgren Pressure regulator solenoid valve R64G-NNK-RFN
- Filter Pressure regulator R64G-6AK-RMG Lurbricator valve norgren R64G-6GK-RMN
- Olympian Plus system Filter Pressure regulator valve R64G-4GK-RMN norgren
- R64G-3GK-RMN norgren Filter Pressure regulator Lurbricator solenoid valve
Product Details
Type: | Source Treatment Unit | Place of Origin: | Guangdong, China | Model Number: | JLFRL2-B MIDI |
Brand Name: | JULY |
Product Description
Specification |
Size | MINI | MIDI | |
Pheumatic Connection | Seen from Model List | ||
Operating Medium | Compressed Air | ||
Desgin Option | Filter Regulator with or without Pressure Gauge | ||
Proportional Standard Mist Lubricator | |||
Mounting Method | Via Accessories | ||
In-line Installation | |||
Fixing Position | Vertically±5° | ||
Regulator Lock | Rotary Knob with Detent | ||
Rotary Knob with Integrated Lock | |||
Filtration Grade [μm] | 5 or40 | ||
Max. Hysteresis [bar] | 0.2 - 0.4 | ||
Pressure Regulating Range [bar] | 0.5...7 | ||
0.5...12 | |||
Pressure Indication | Via Pressure Gauge | ||
G 1/8 Prepared | G 1/4 Prepared | ||
Max. Condensate Volume [cm³] | 22 | 43 | |
Input Pressure [bar] | 1...16 | ||
Condensate Drain | Manually | 1...16 | |
Semi-Auto | 1.5...16 | ||
Automatically | 2...12 | ||
Material | Housing | Die-cast Zinc | |
Connecting Plates | Die-cast Zinc or Aluminium | ||
Filter Cup | Polycarbonate | ||
Regulating Knob | Polyacetylene | ||
Knurled Nut | Aluminium | ||
Seals | Nitrile Rubber |

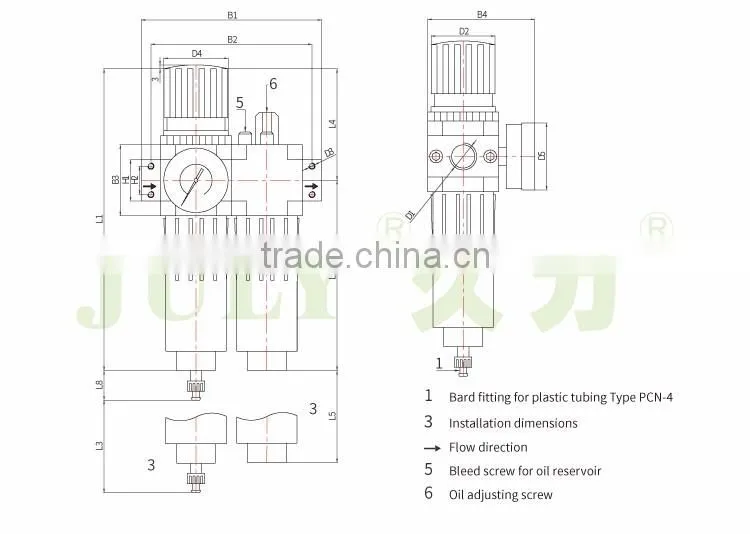

Drawing |
|

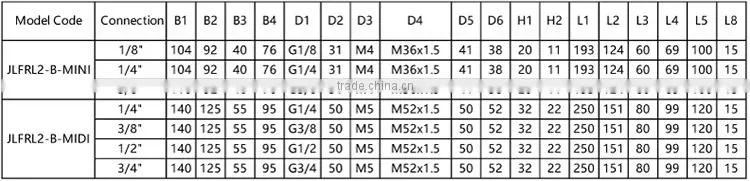

Model List |
Ordering Information |
JLFRL2 | | B | | MIDI | | 1/8 | | 7 | | Y | | 5 | | M | |
Product Name | Series | Size | Pheumatic Connection | Pressure Regulating Range | Pressure Gauge | Filtration Grade | Condensate Drain |
JLFRL2 = Two-point FRL JLFR = Pneumatic Filter Regulator JLFRL3 = Three-point FRL | B = Without Guard Cover D = With Guard Cover | MINI =Small MIDI =Medium MAXI =Big | 1/8 = G1/8 1/4 = G1/4 3/8 = G3/8 1/2 = G1/2 3/4 = G3/4 1 = G1
| 7 =0.5...7 12 =0.5...12
| N = Without Pressure Guage Y = With Pressure Guage | 5 =5μm 40 =40μm | M = Manually S = Semi-Auto A = Automatically |
Why to choose us? 1.Most of raw materials are produced by our own EAGL factory, so our product is in a good quality control starting from raw materials. 2.There is a set of complete system to record all material, production and inspection in our factories, which helps us track and solve any problems quickly . 3.We are not only a manufacturer of products but also an end user, we can better understand the real needs of customers. |
Packing |
Shipping |
By sea | By air | By express |
Cheapest but longest option 18~30 days by sea delivery, best for large quantity order. | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. | Door to door service,the fastest and most expensive one, 3~6 days by express. |
Company Information |
Dongguan JulyR Hydro-pneumatic Equipment Co., Ltd, its predecessor called Changhua Hydro-pneumatic machinary factory, was founded in Taiwan in 1985, and then moved to Dongguan in 2008. Now JulyR is a professional medium-scale manufacturer of various of Hydro-pneumatic components, equipments and related products. Our products mainly involve Hydro-pneumatic cylinders, Hydraulic cylinders, Air-driven booster pumps, Press machines and Fluid systems equipment, Pipe or cable Connection and a variety of zinc alloy die casting products.
Our Advantages |
|
Service Tips |
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Sunday and Chinese holidays. |
If you have any other requirements or questions, welcome to visit our website , or just contact us directly . Thank you! |
FAQ |
Q: What products do you supply? A: We supply metal cylinders, booster pumps, press machines, riveting machine, pressure gauge test rig, zinc alloy ingot and the other zinc alloy products etc.
Q: Can you guarantee quality for orders? A: Sure. We can 100% guarantee quality for all of your orders, as what we want is a long-term business relationship with you, rather than one off business.
Q: Can I have my brand and put my logo on the products? A: Of course. As long as you would like to, we could do that for you, according to your designs, free of charge.
Q: What's your delivery time? A: That depends. It usually takes 15-30 days for different products and quantity. |
